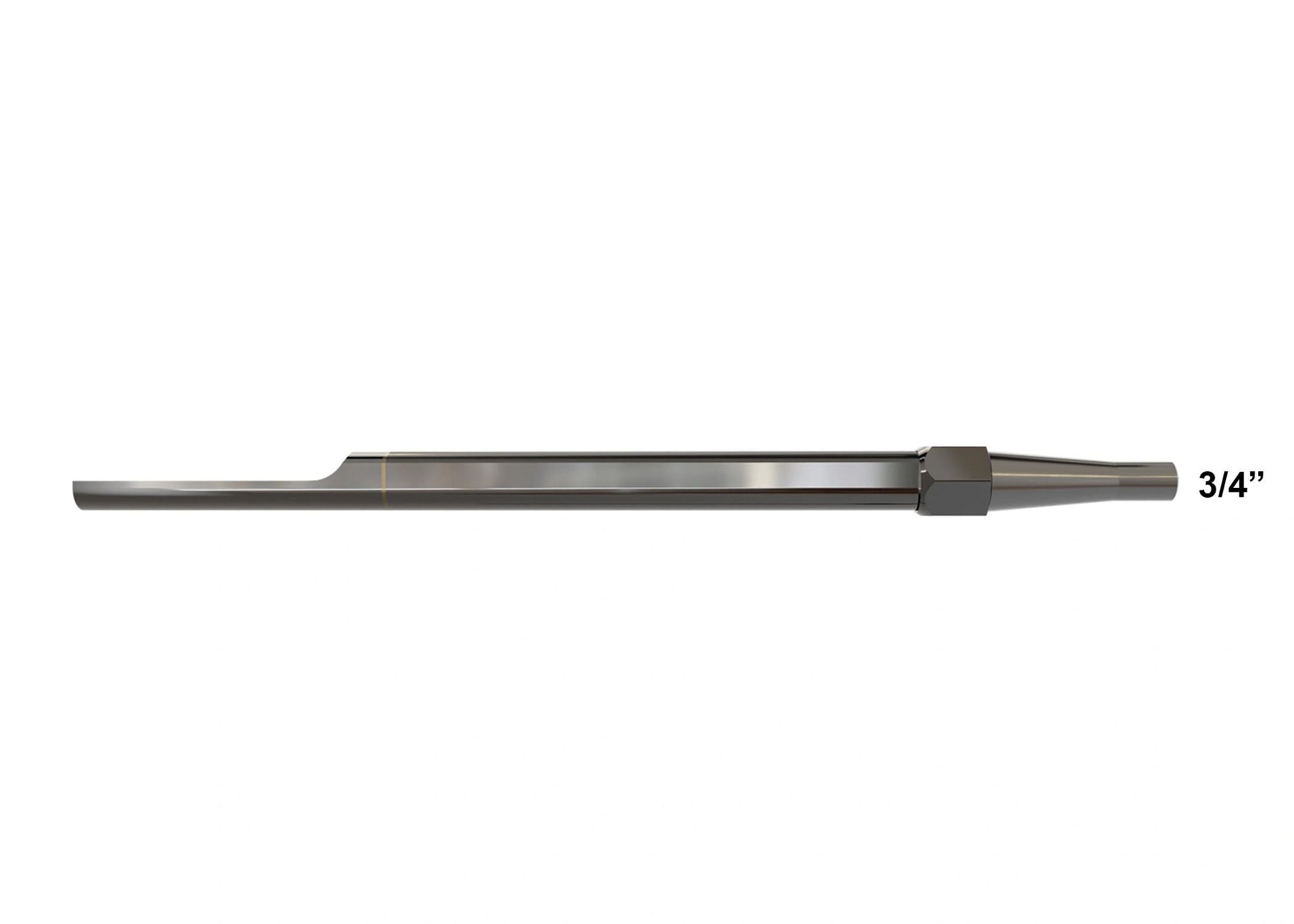

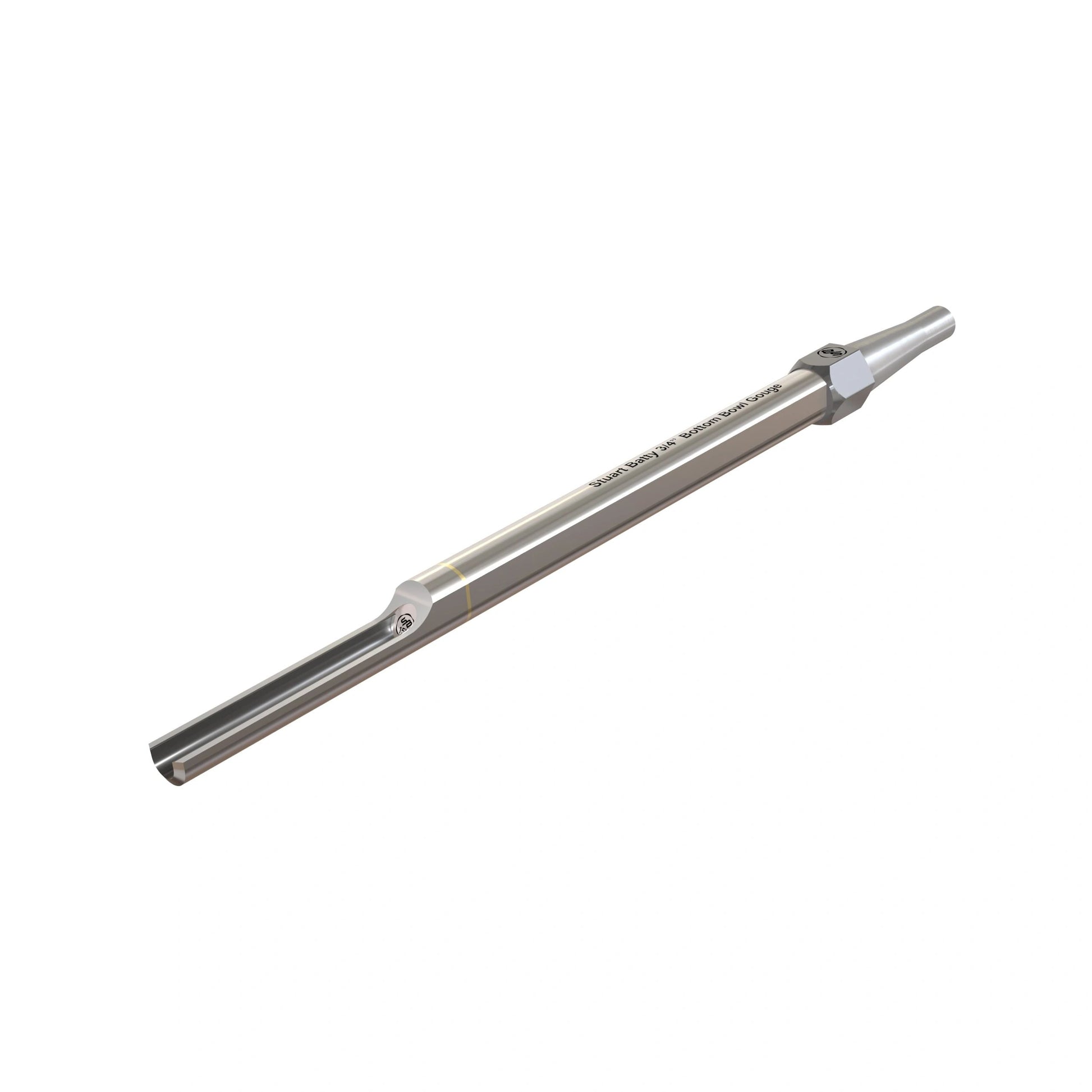

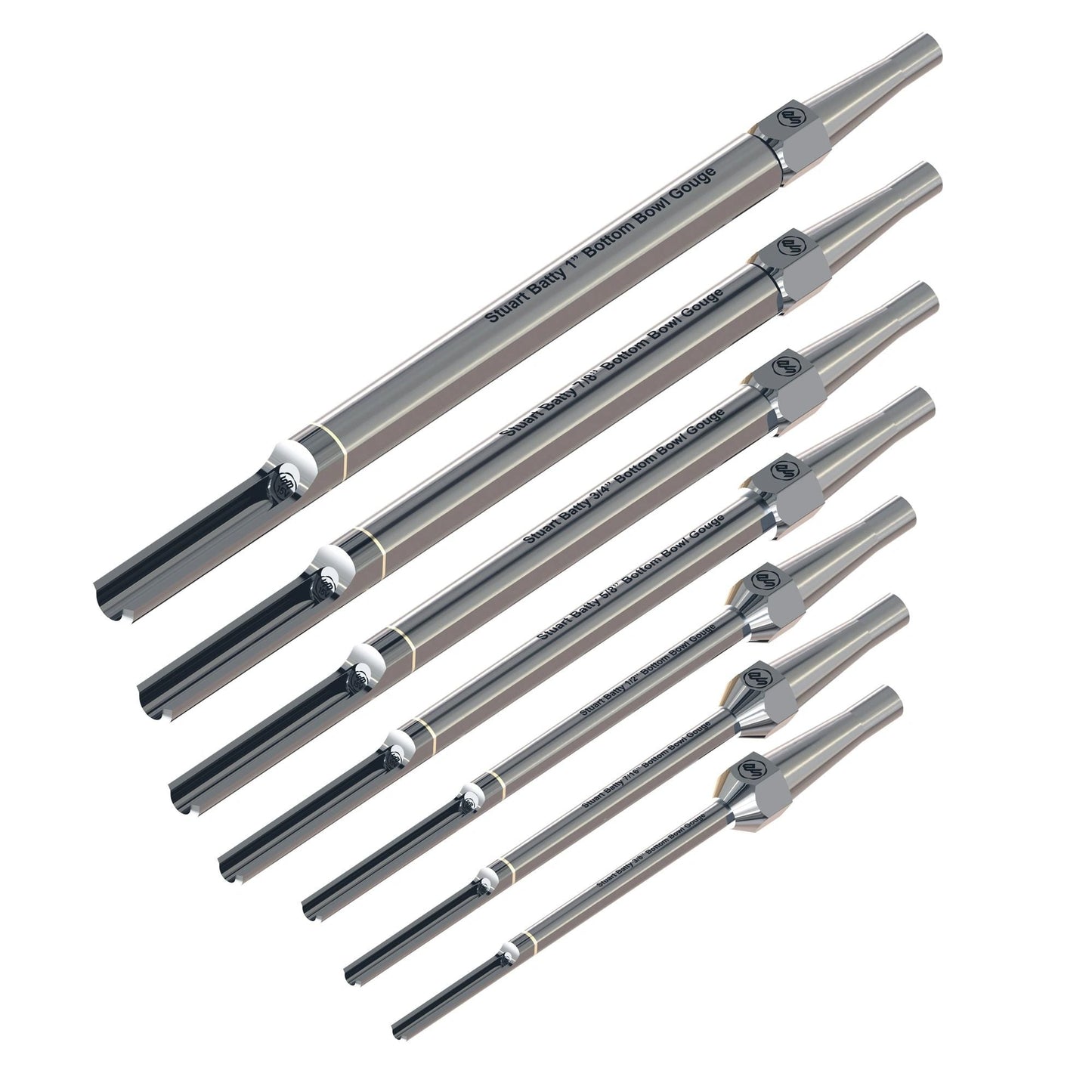

3/4" 15V Bottom Bowl™ Gouge

3/4" 15V Bottom Bowl Gouge

Patent Pending — Revolution Gouge™ design.

The 3/4" Revolution Bottom Bowl Gouge is made from 15V steel and designed for finishing the interior bottom surfaces and side grain areas of bowls. Its beam shape—⅛" taller than wide—provides exceptional rigidity and vibration-free performance. Shipped with Stuart Batty’s 60/85™ grind, this gouge complements the 40/40™ Elliptical Bowl Gouge for complete bowl interior finishing.

Key Features

• 15V steel edge lasts up to 7x longer than M2 and up to 5x longer than M42
• Optimized beam shape (⅛" taller than wide) eliminates flex and vibration
• Chip deflection plate replaces traditional exit radius for maximum rigidity
• Even-thickness flute wall for easier resharpening
• Shipped with Stuart Batty’s 60/85™ grind—ready to use out of the box

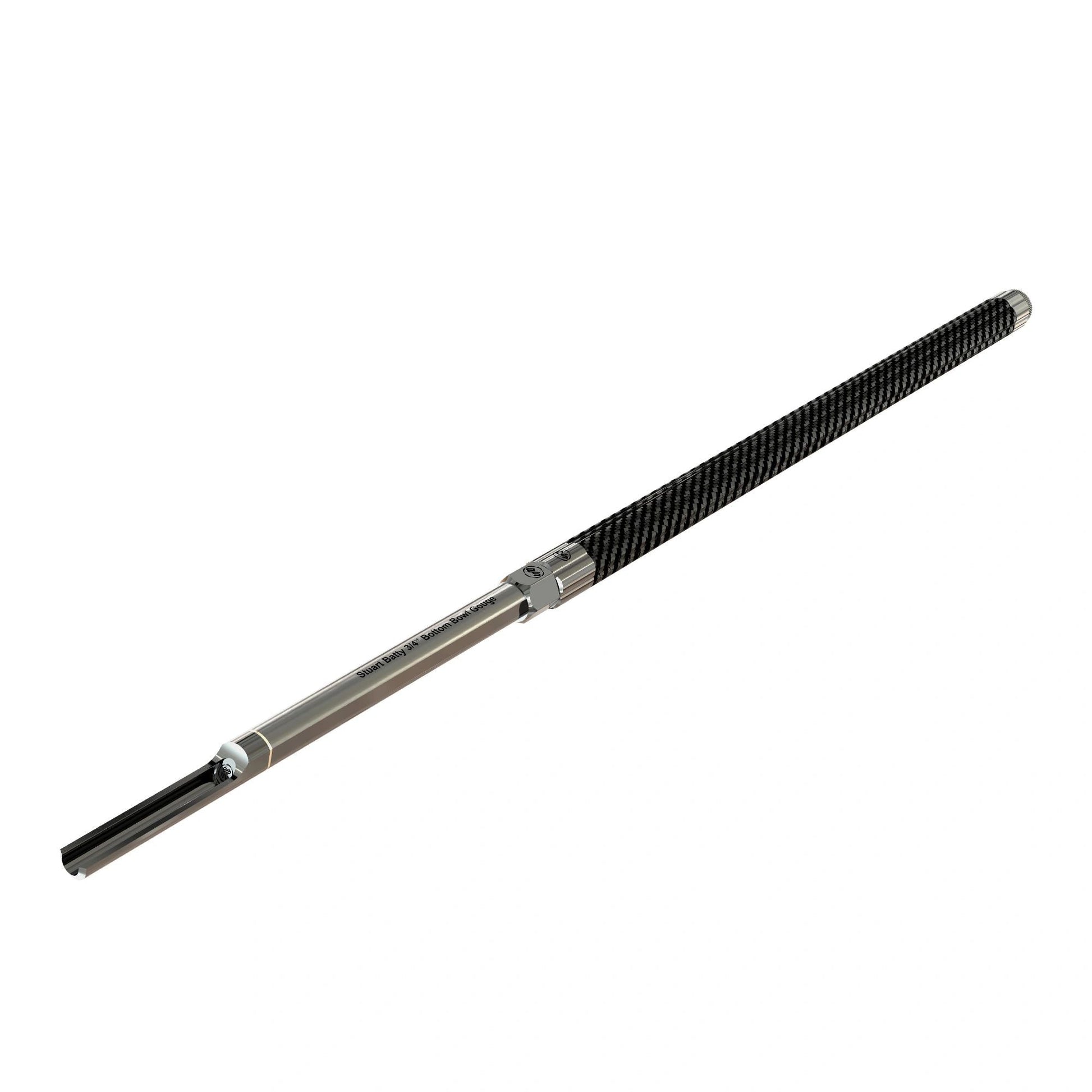

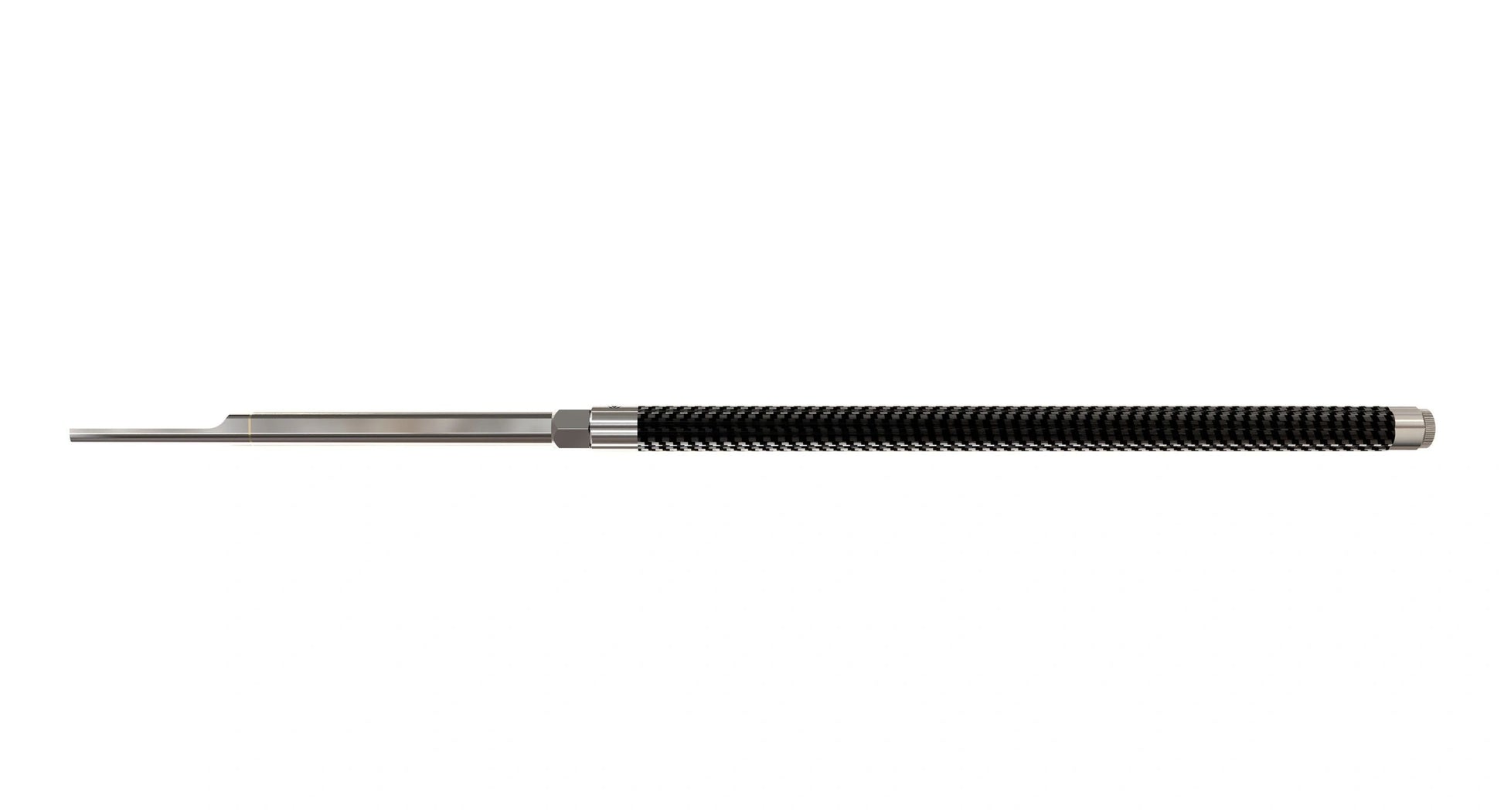

• Taper Lock Bolster for fast, tool-free handle changes

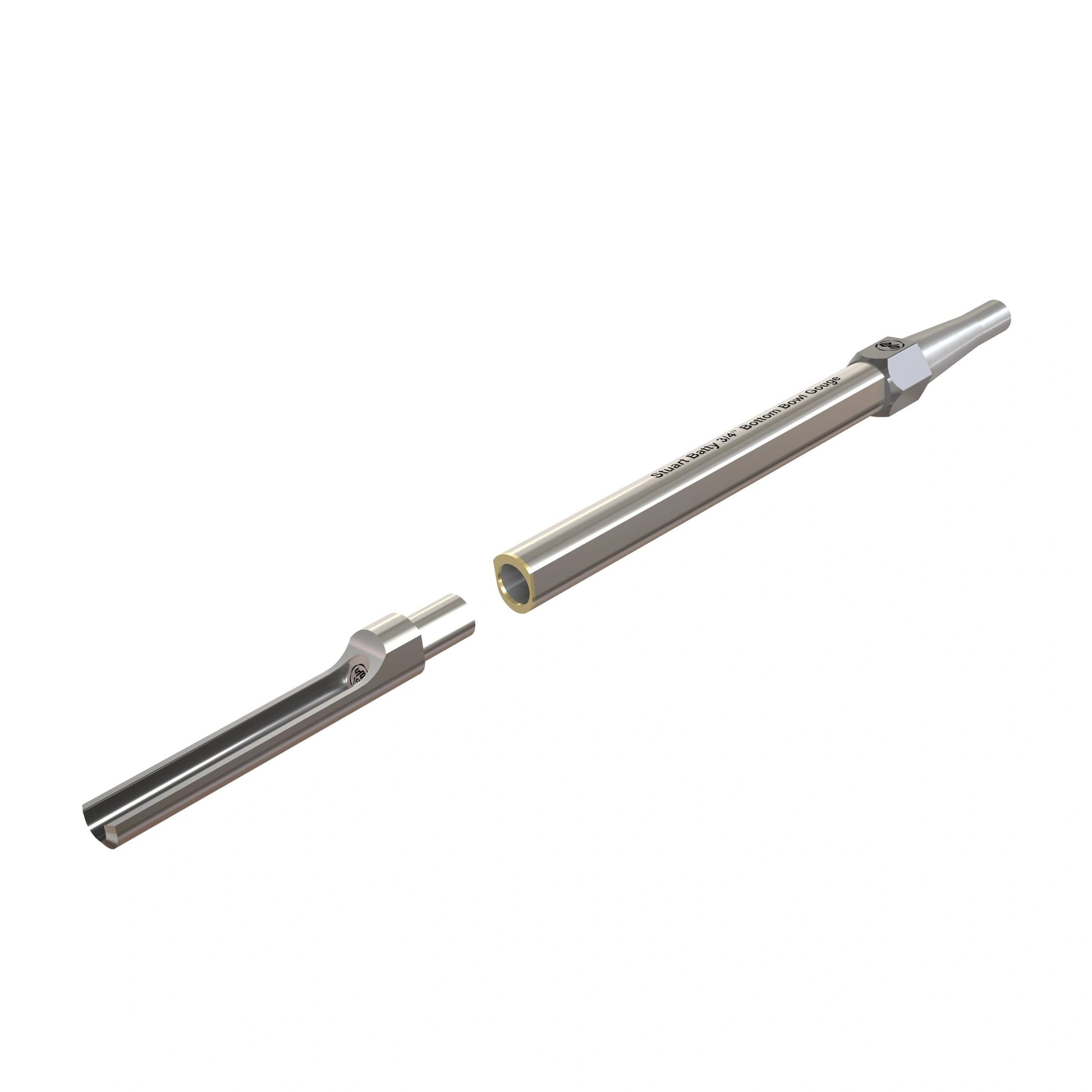

• Replaceable tips for extended tool life and value
• Vibration-free use even with extreme tool rest overhang

Materials & Construction

The cutting edge is 15V tool steel, laminated to a heat-treated and hardened stainless steel substrate (45 HRC). This lamination process makes 15V viable for woodturning by bonding it to a tough stainless body that absorbs the long overhang demands of tool rest use. The hardened stainless steel bolster is reusable indefinitely.

Sharpening Guide

For best results, sharpen freehand on a grinding platform. Recommended abrasives include CBN wheels (180–320 grit), Norton SG Ceramic wheels, and 3M Trizact or Cubitron II belts. Stuart Batty’s 60/85™ grind is best achieved through freehand sharpening for accurate bevel angles across the flute profile.
