Universal Grinding Platform (UGP)

Universal Grinding Platform (UGP)

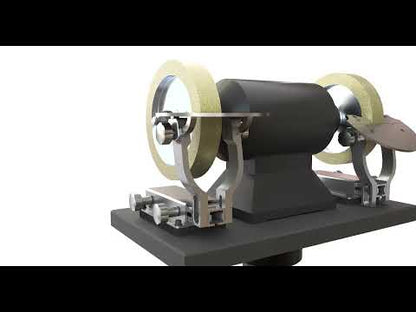

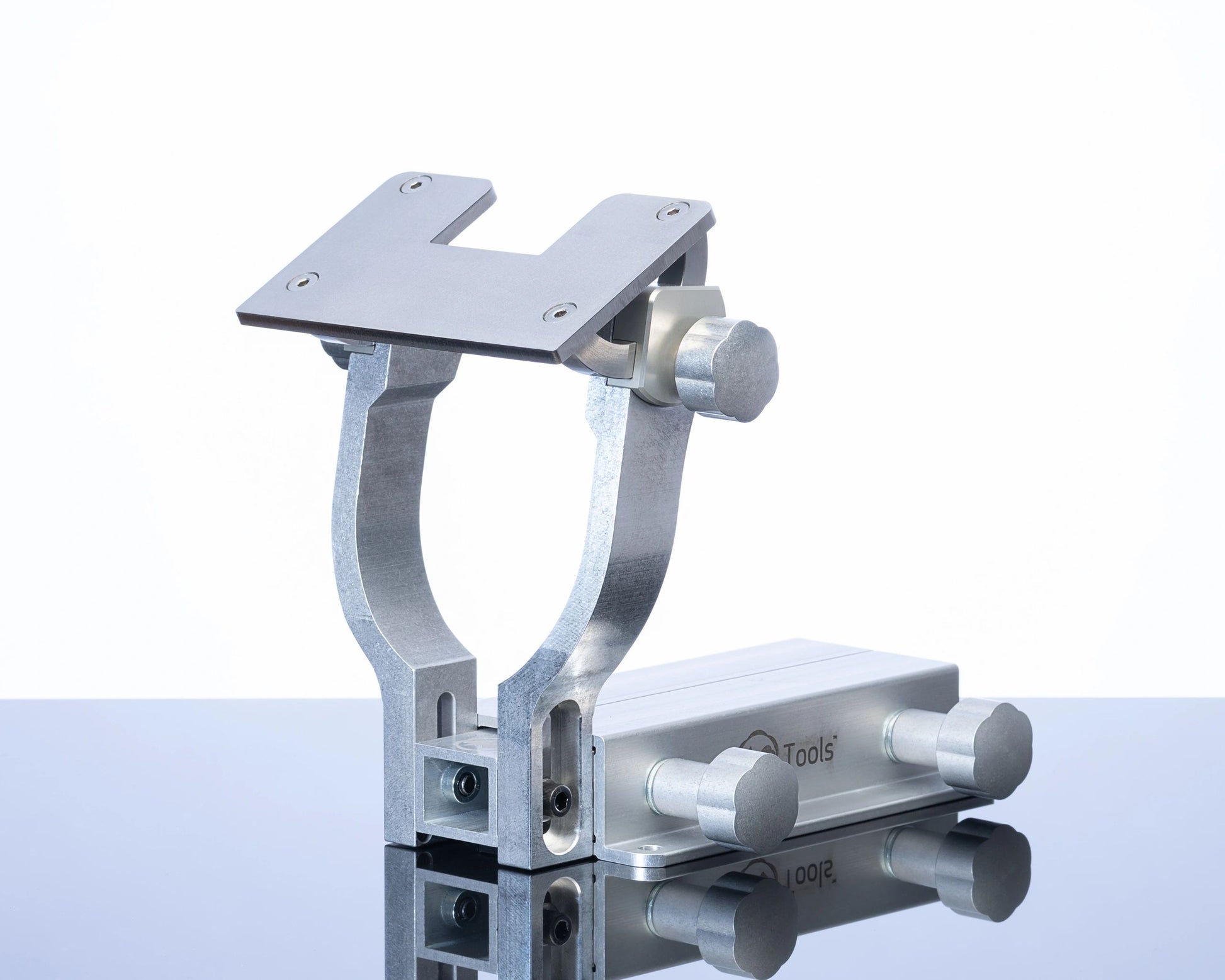

The UGP is a complete grinding platform system built from stainless steel and machined aluminum. It features over 85° of pivot range while maintaining a consistent height and distance from the abrasive wheel at every angle. The 3/16" thick stainless steel platform wraps around the wheel for broad tool support and is compatible with side-coated CBN wheels.

Key Features

• Over 85° of pivot range at constant height and distance from the wheel
• Dual locking pressure plate base for secure, vibration-free positioning
• Wrap-around wheel design for extended tool support
• All stainless steel and machined aluminum construction
• Grind angle range: 10° to 95°
• Compatible with OneWay Wolverine base via optional adapter

Platform Options

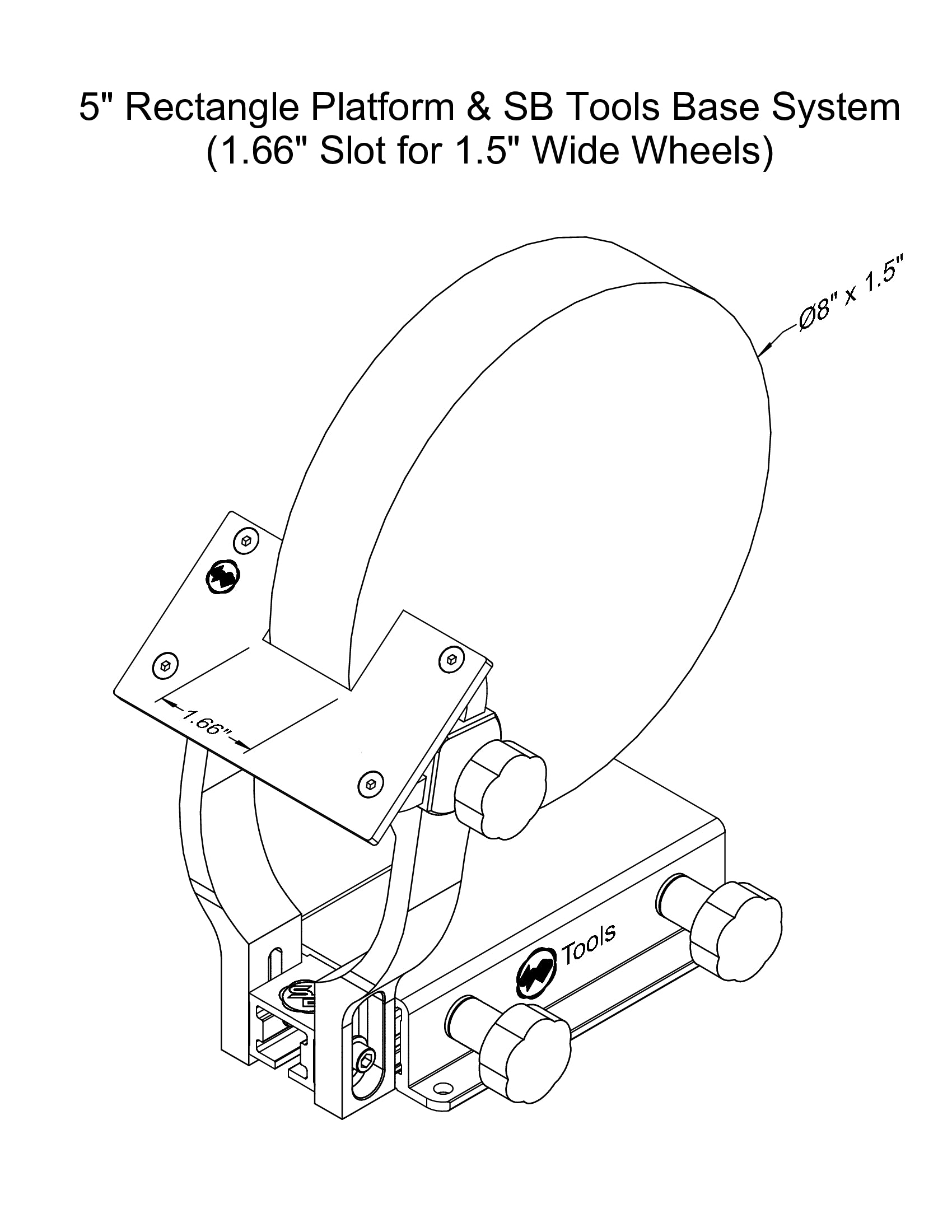

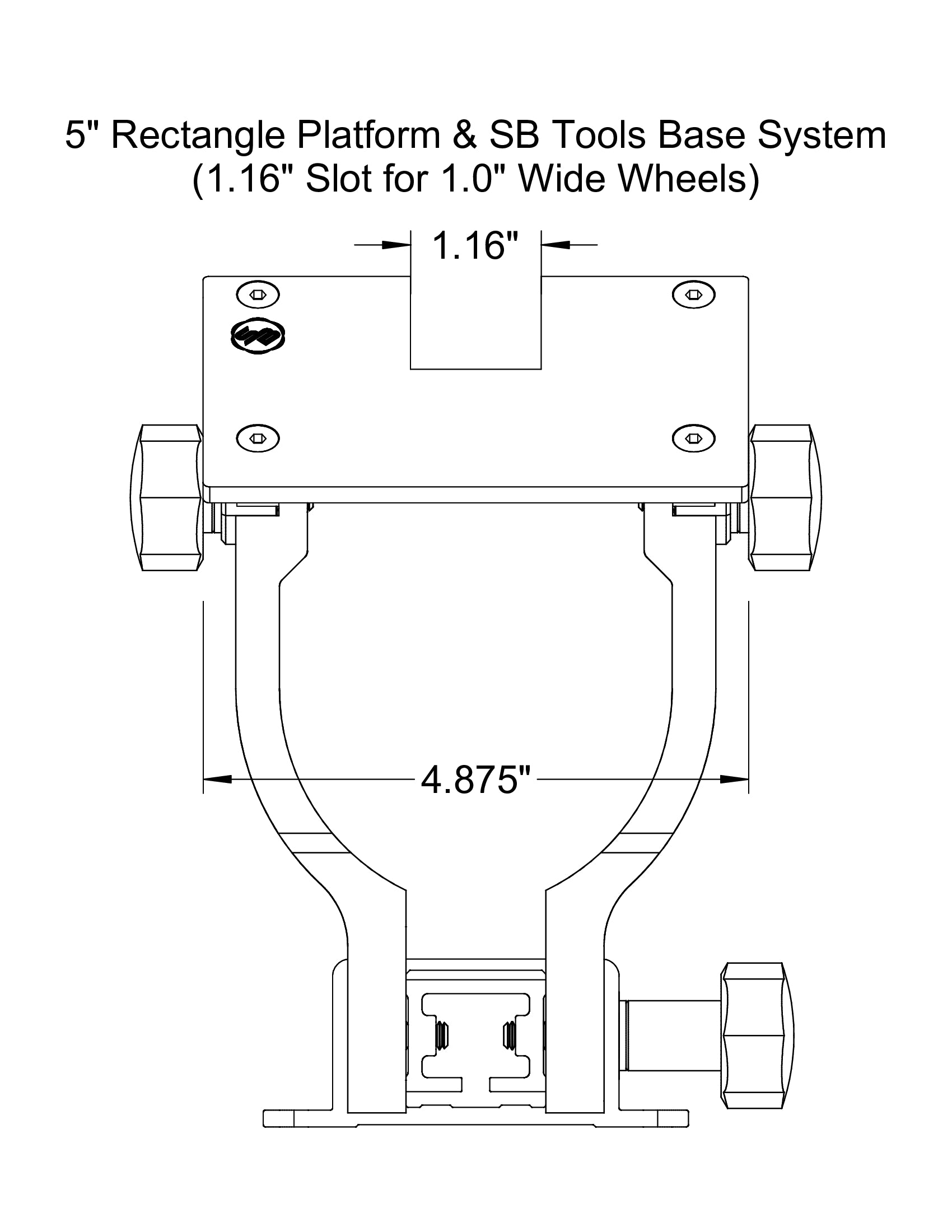

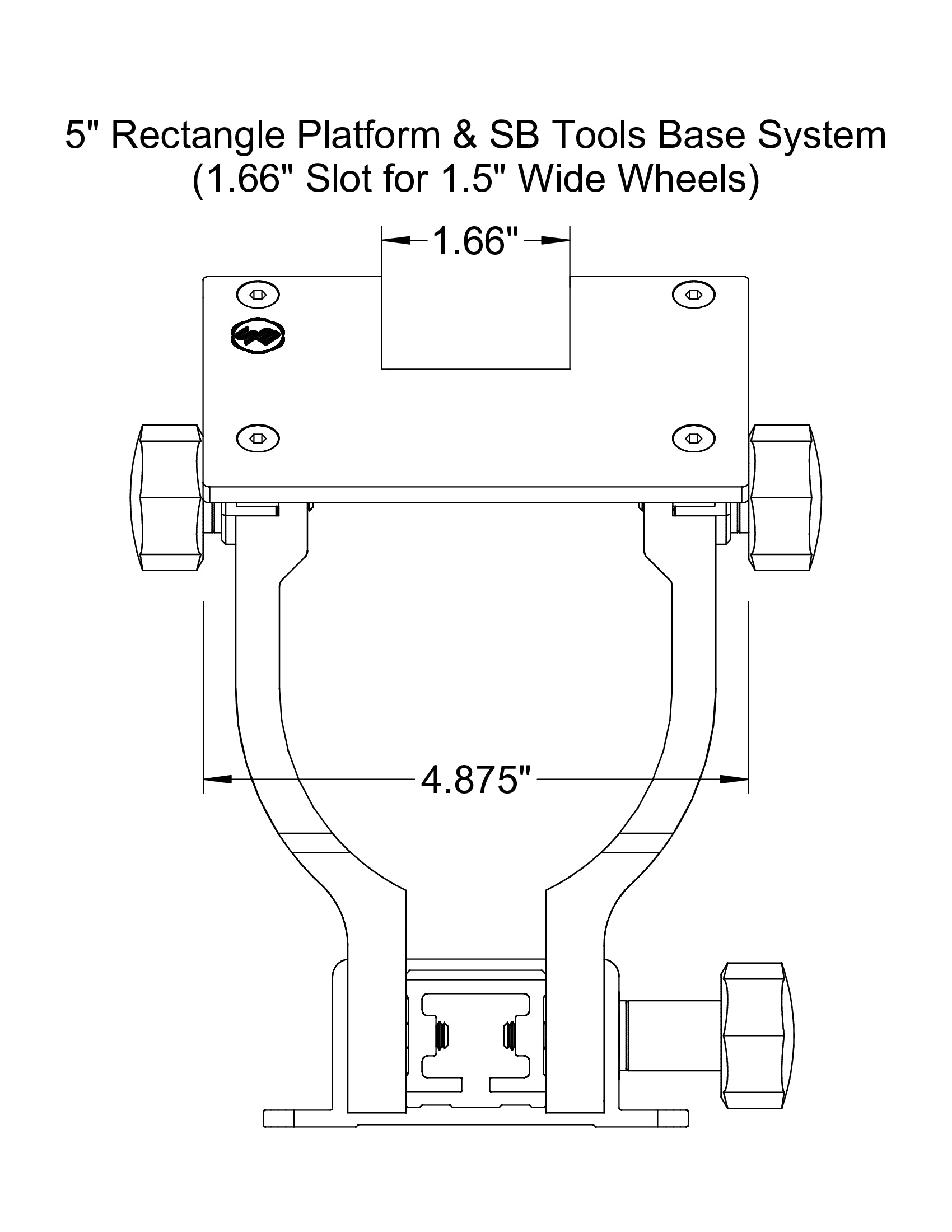

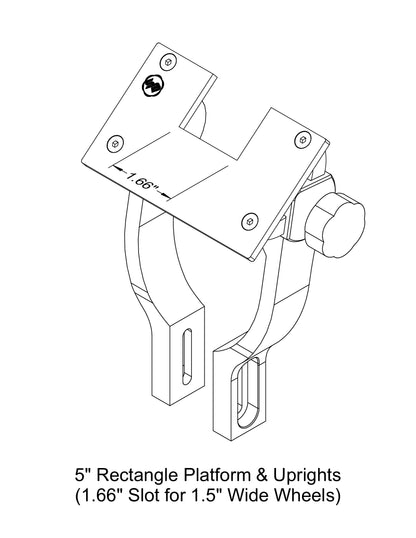

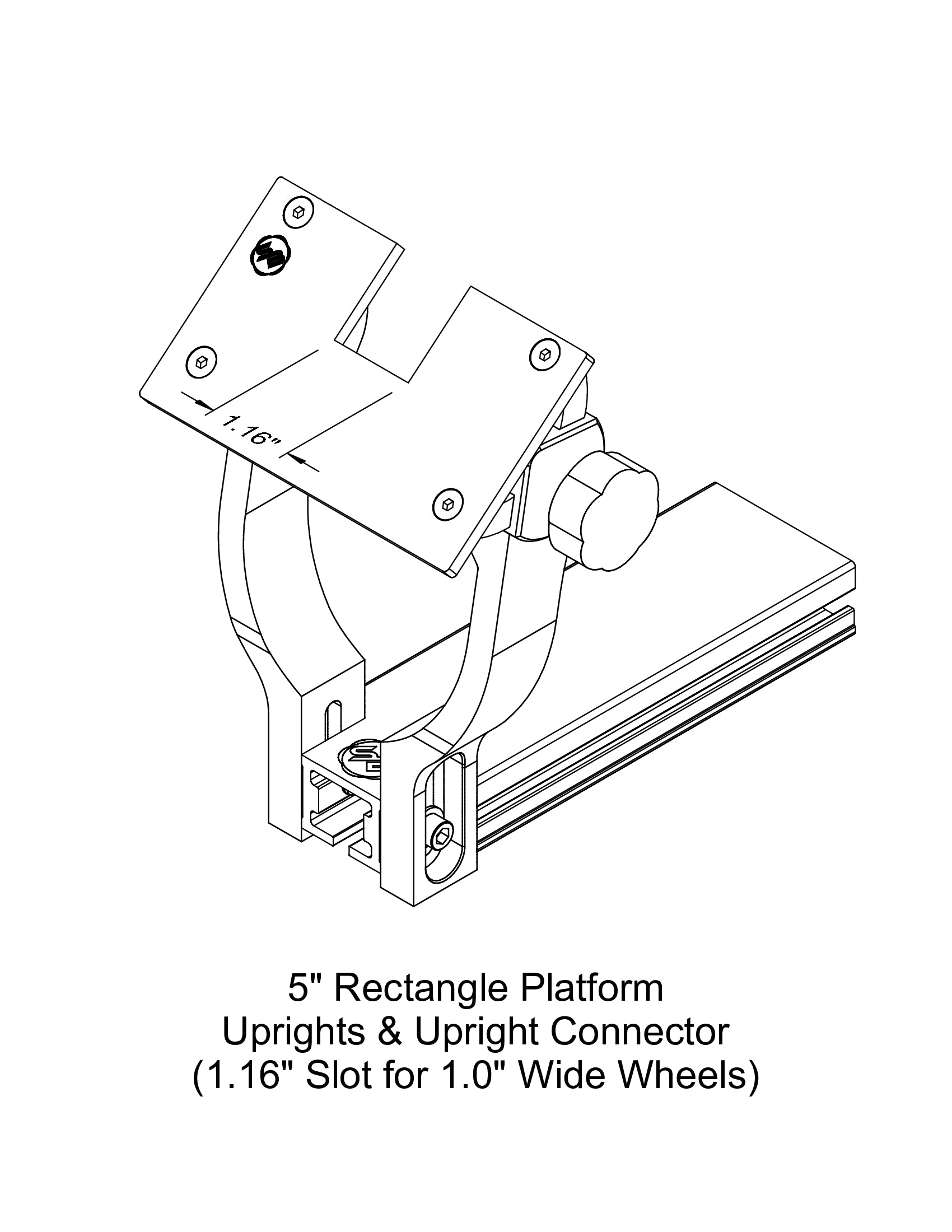

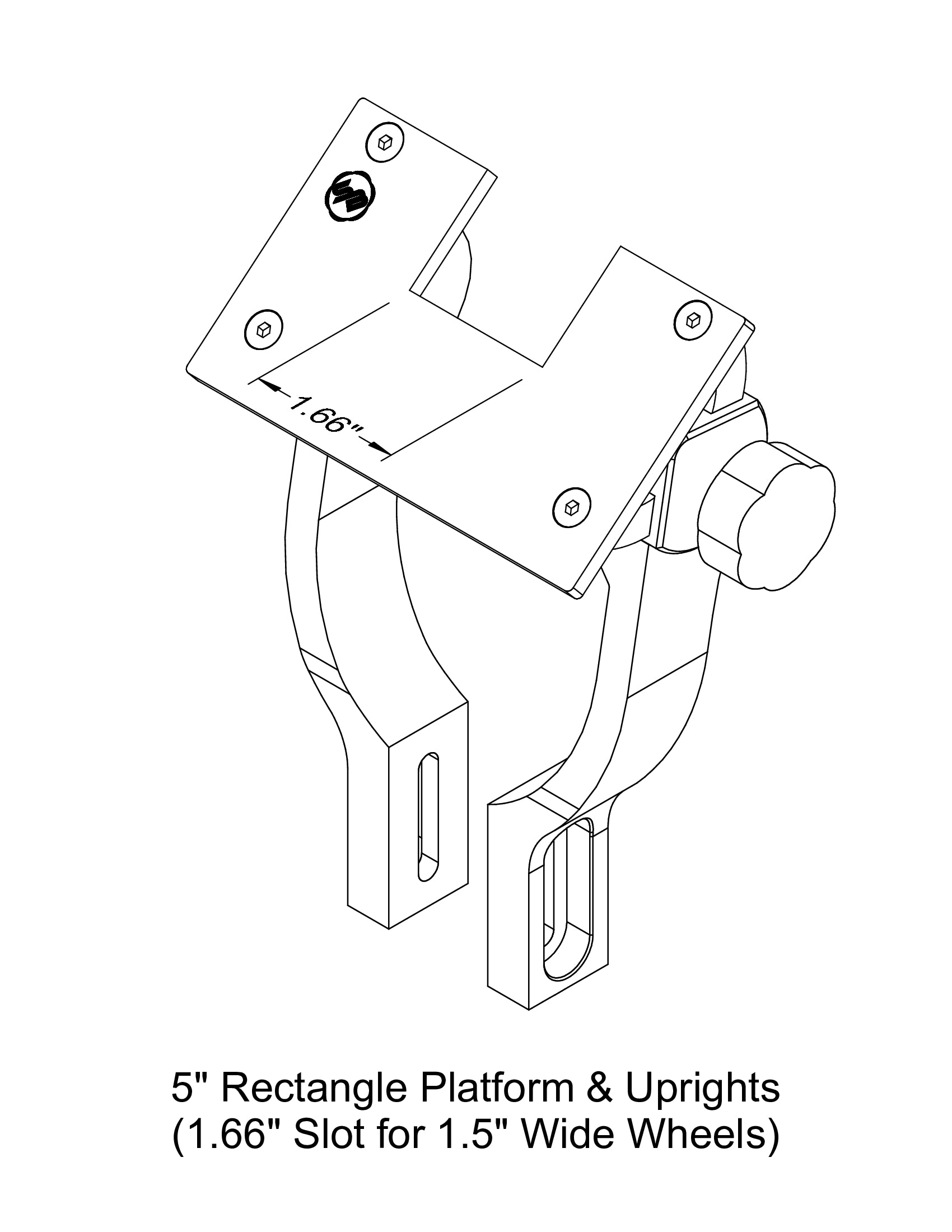

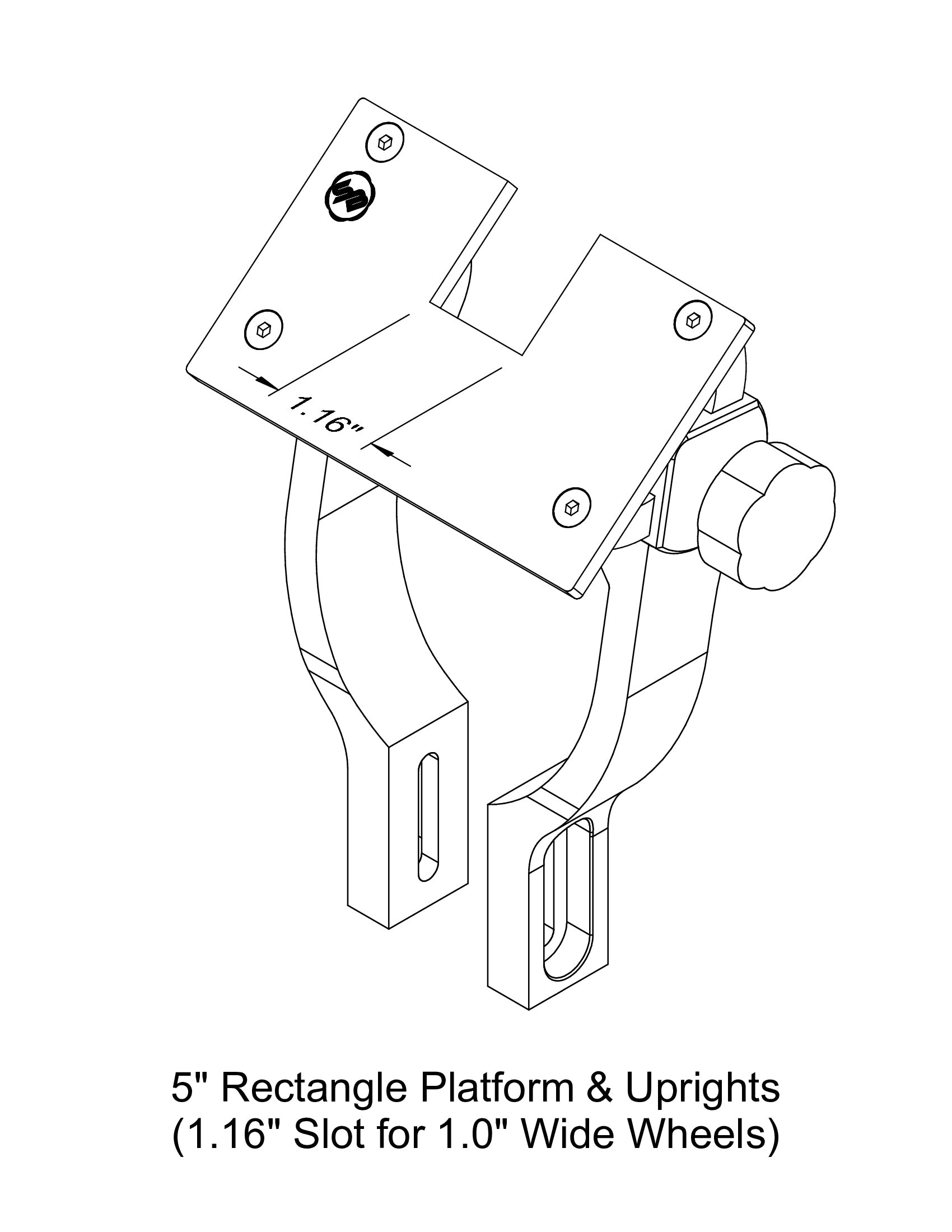

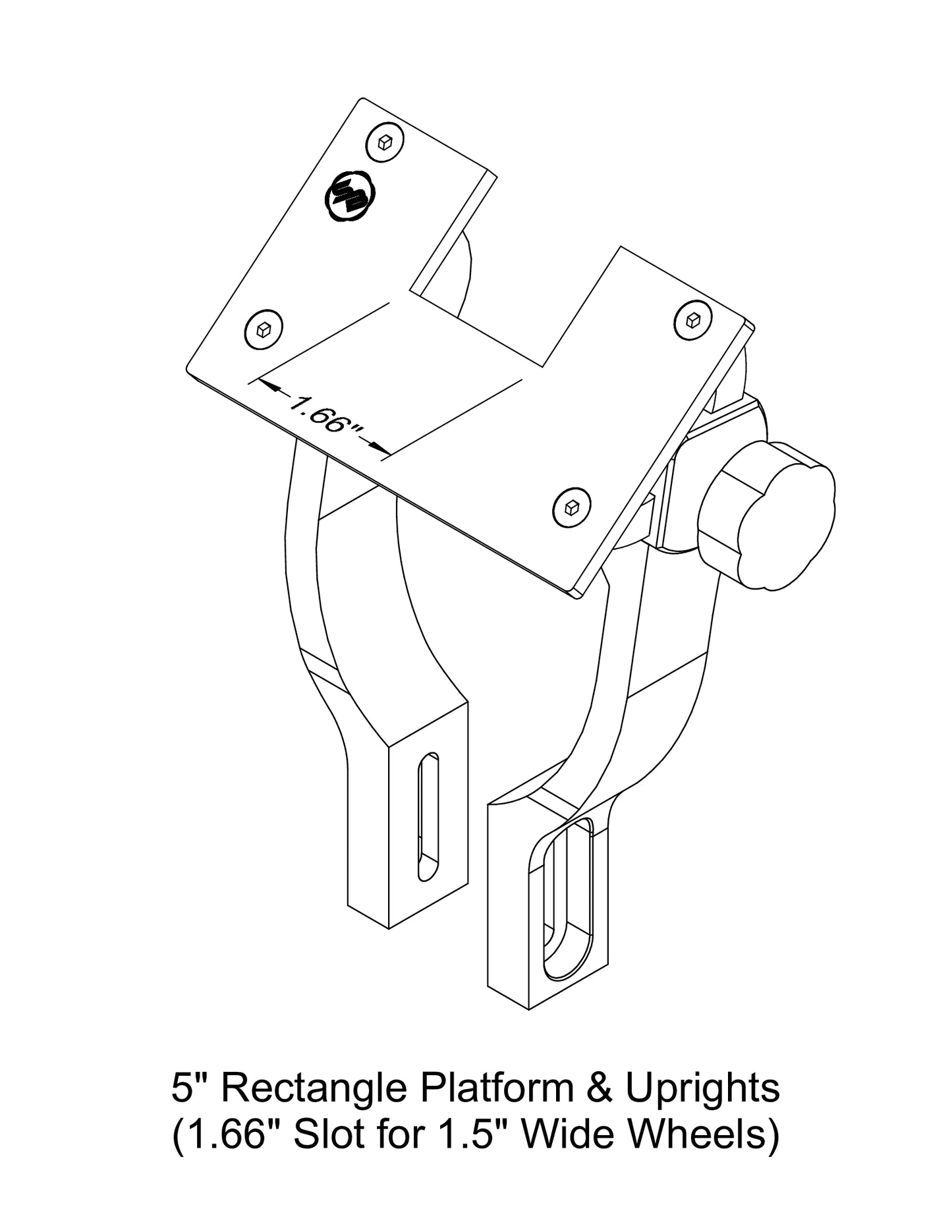

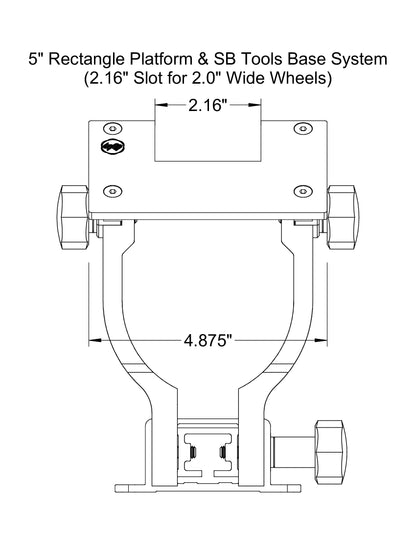

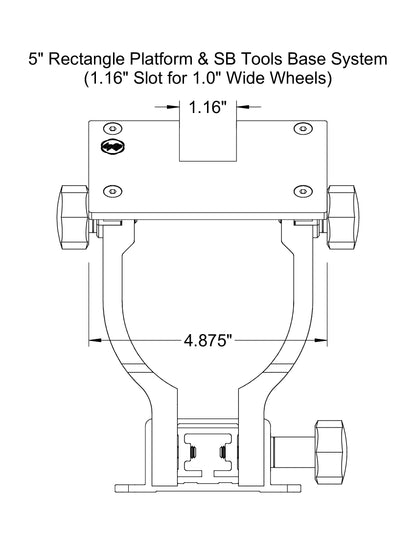

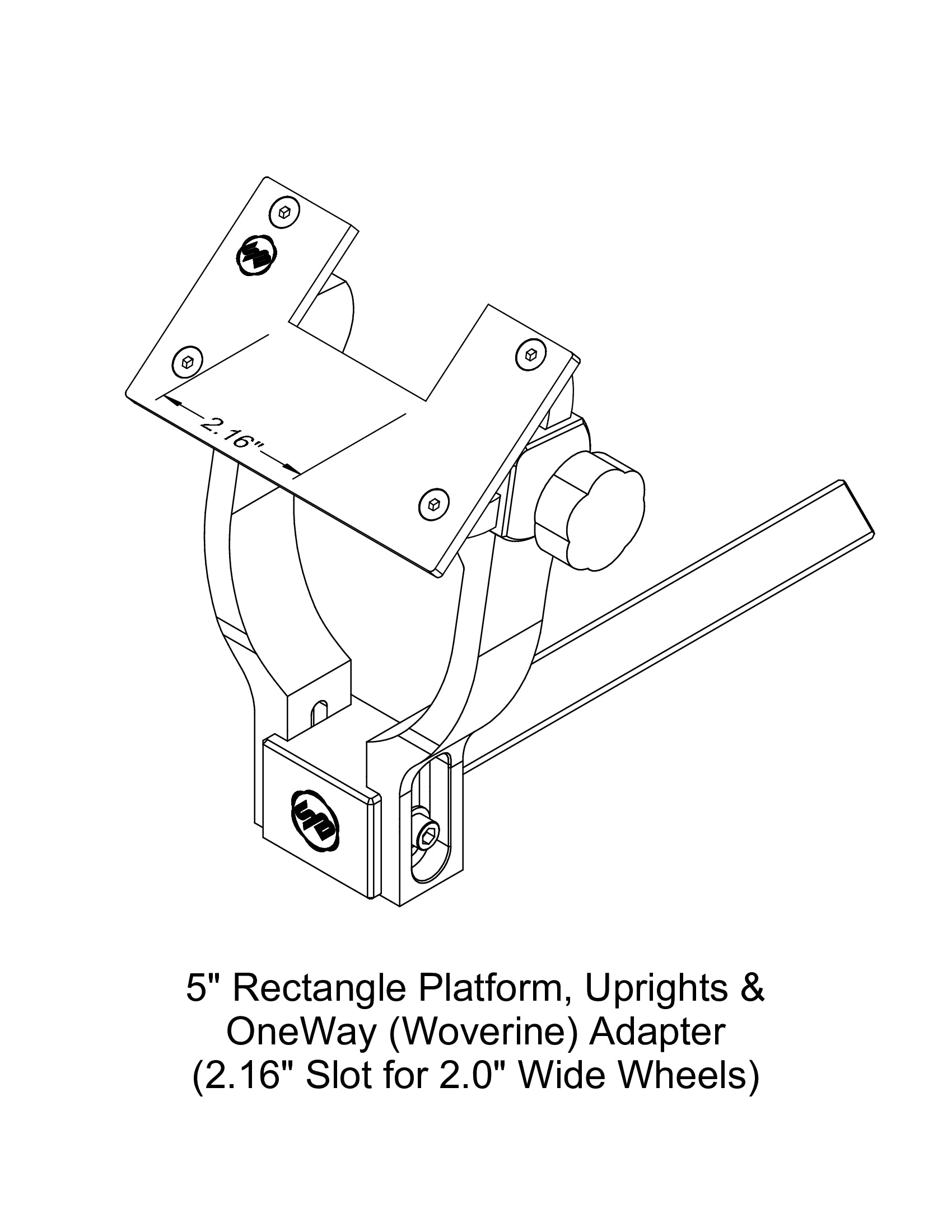

• 5" Rectangle — compact rectangular platform

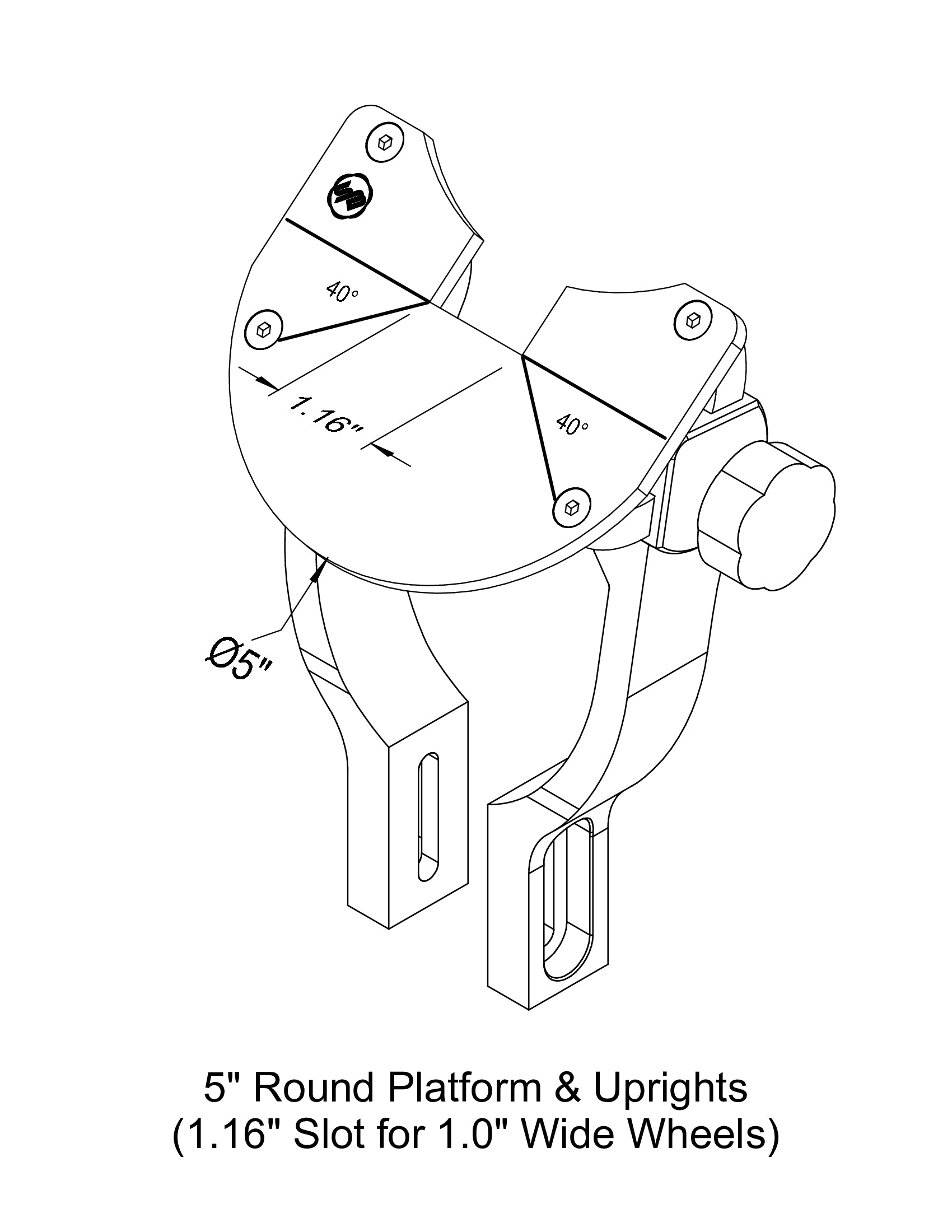

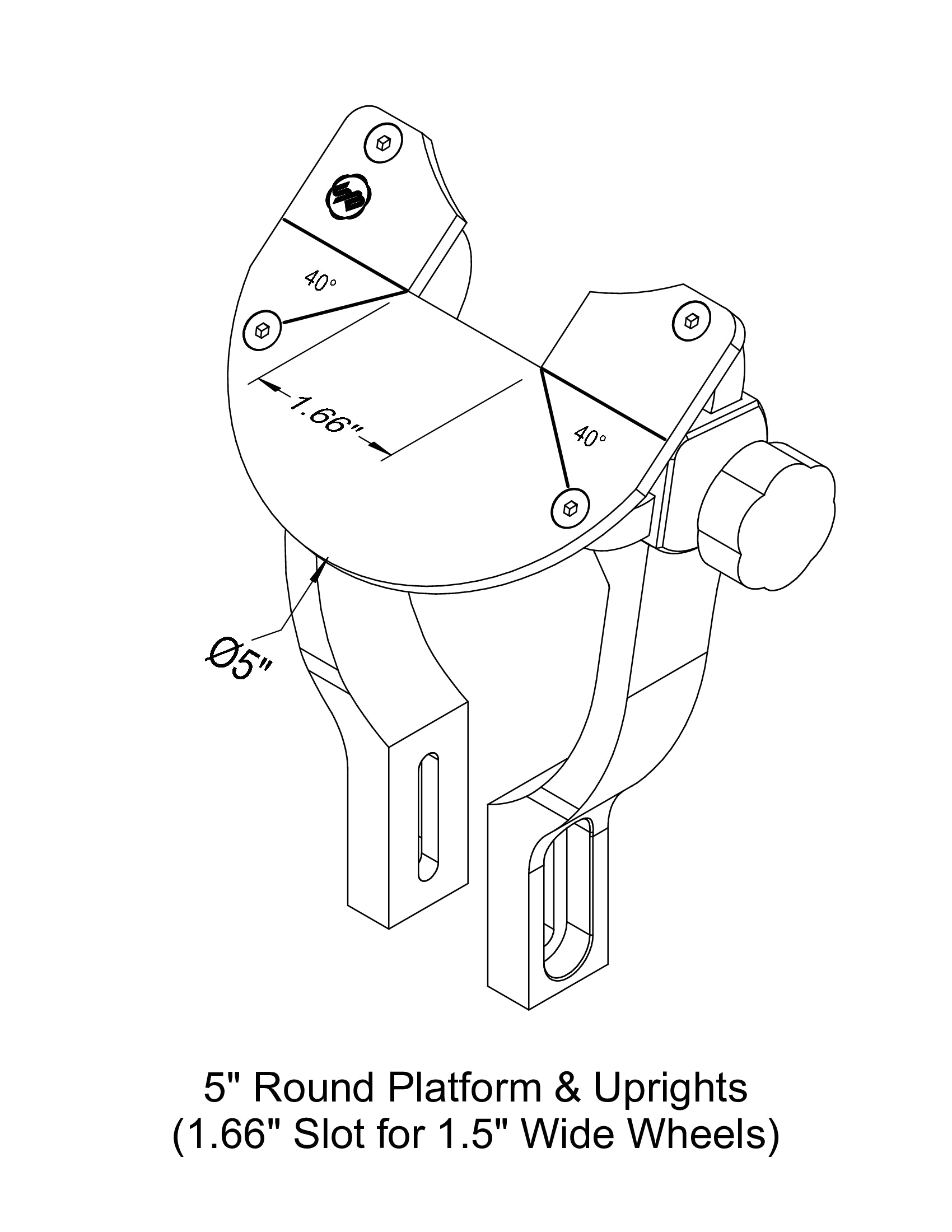

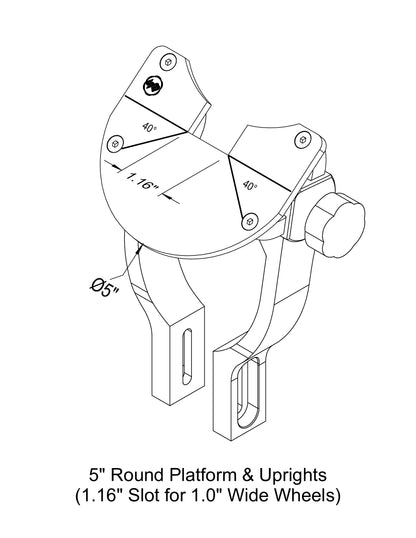

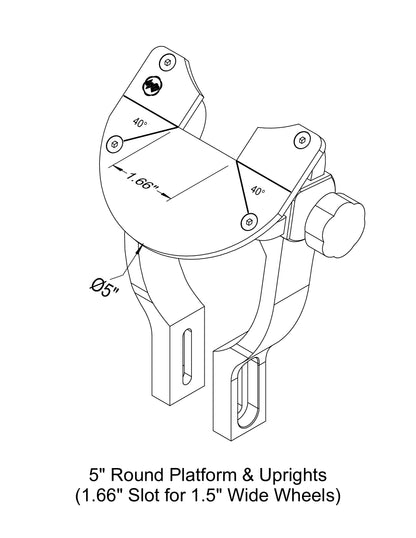

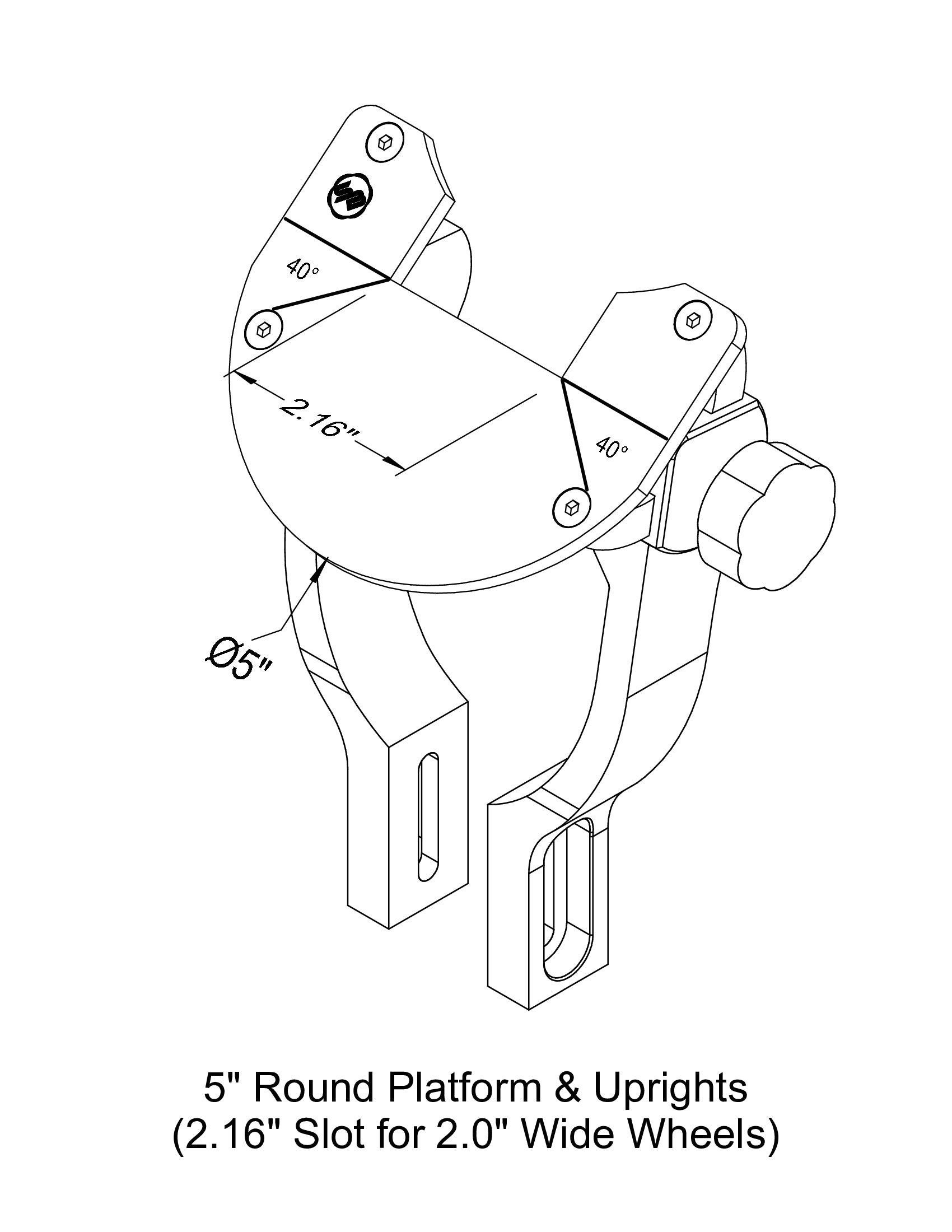

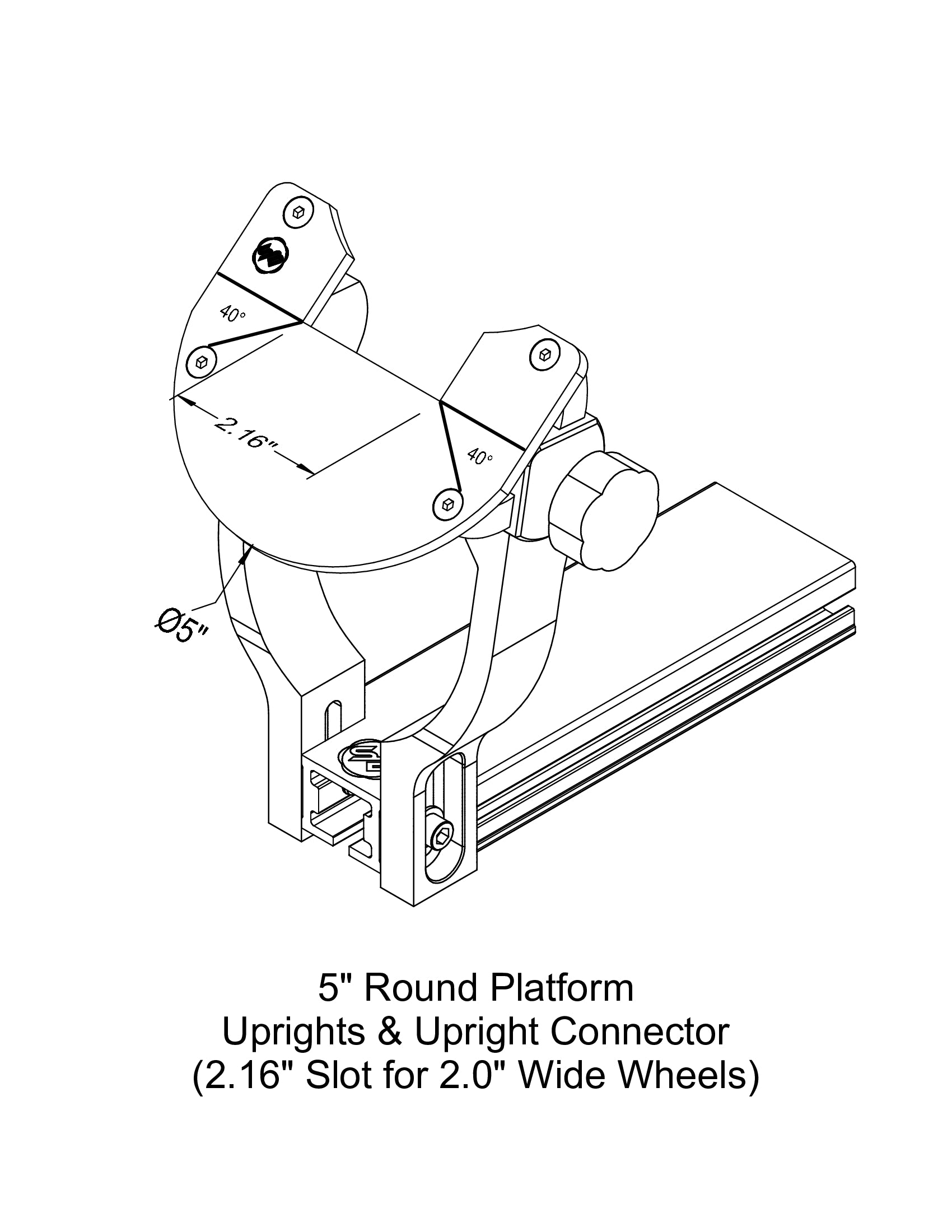

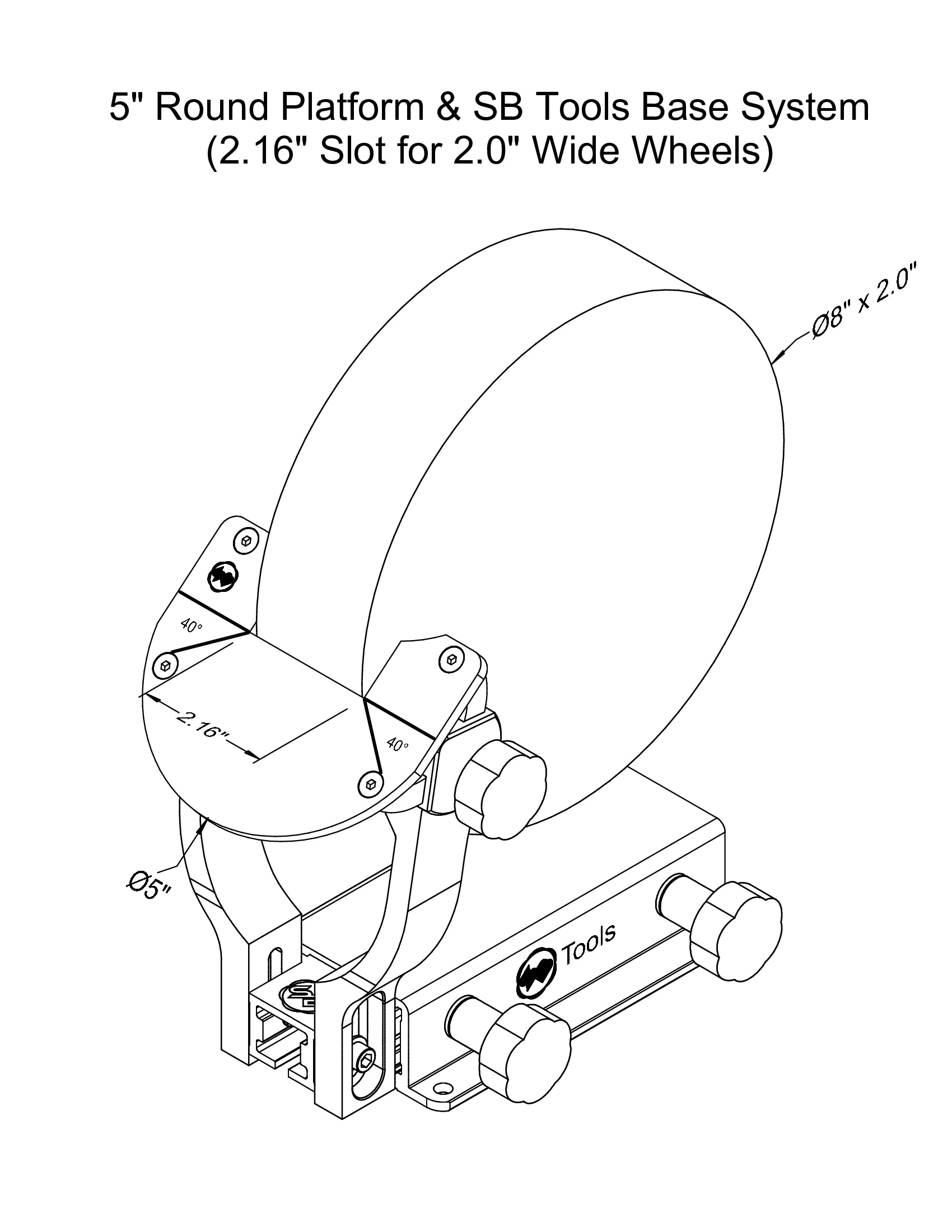

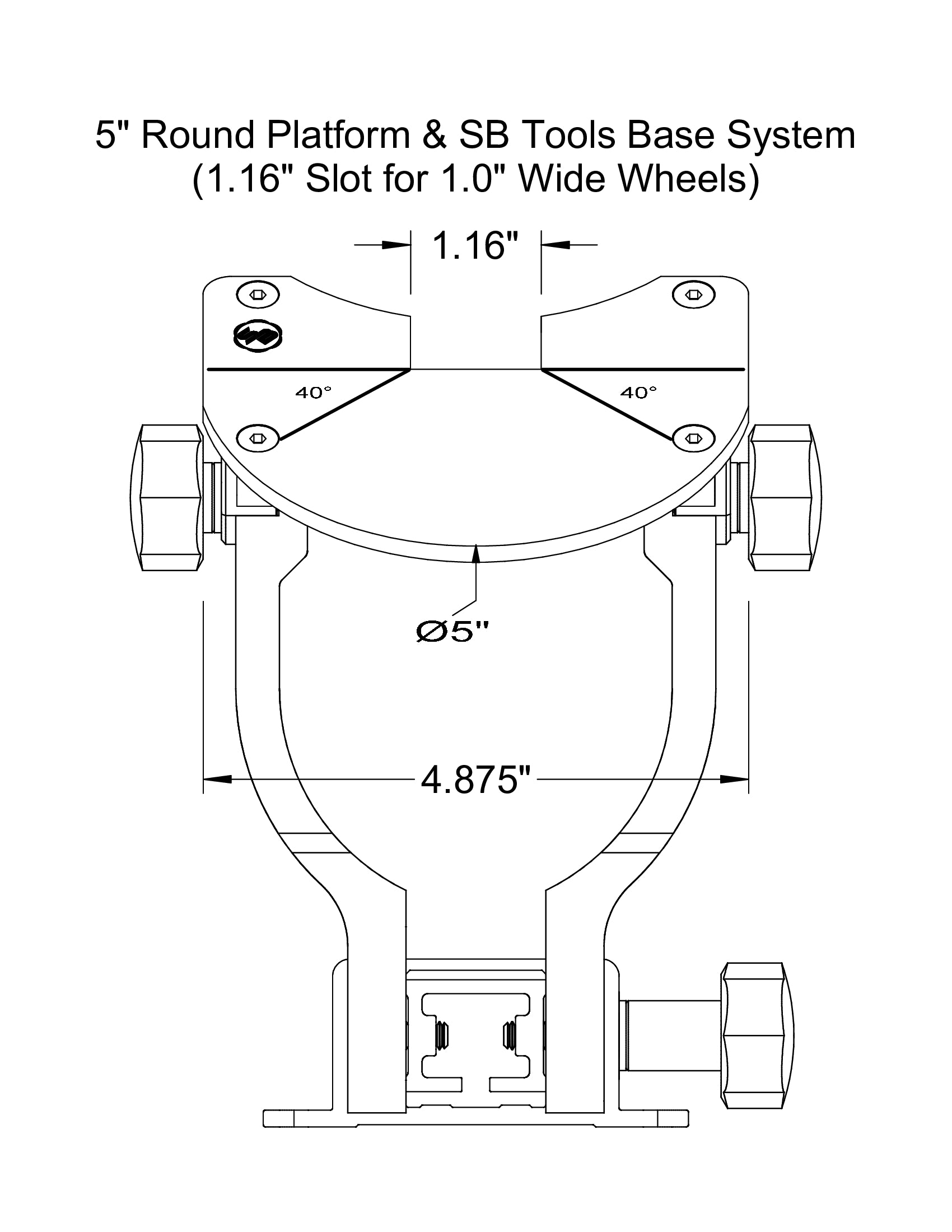

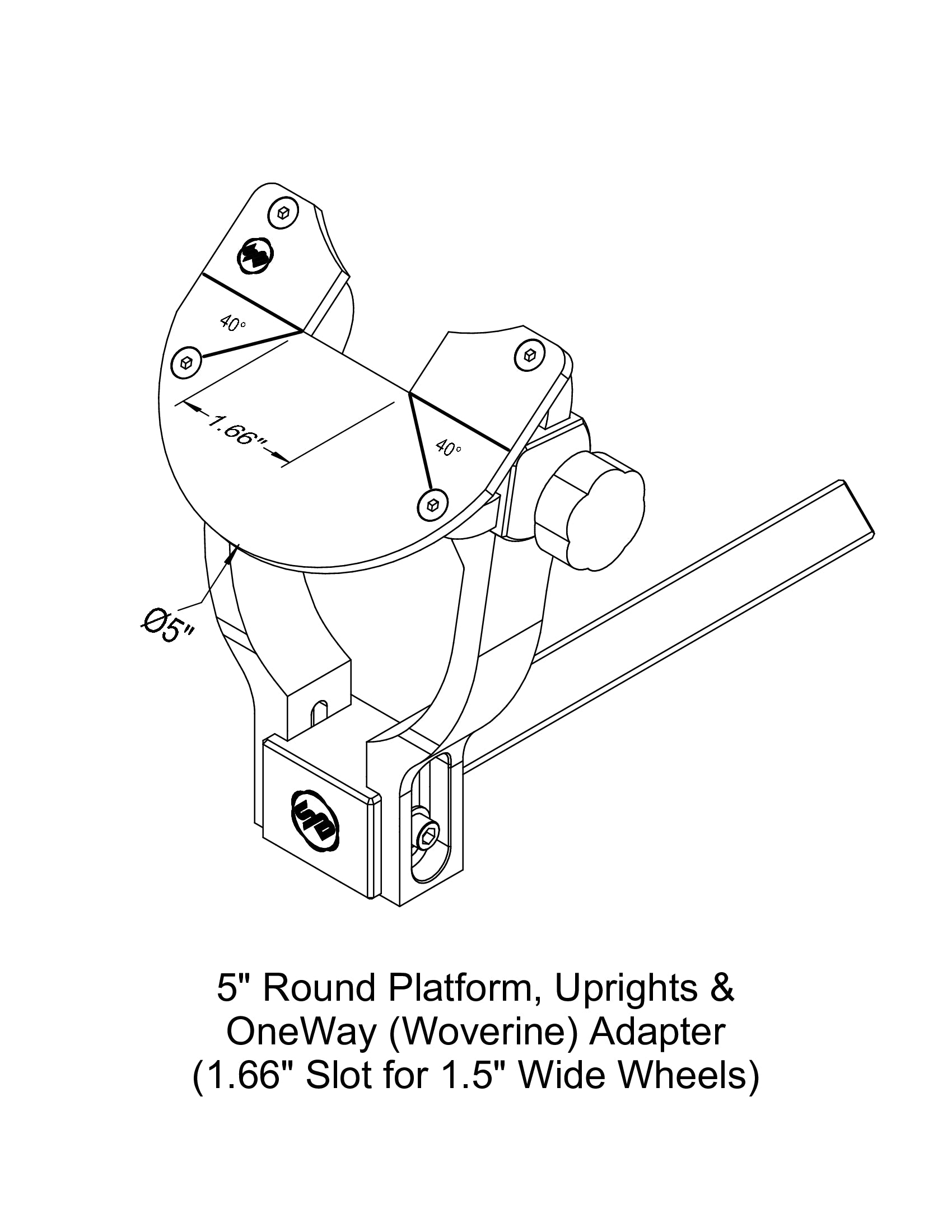

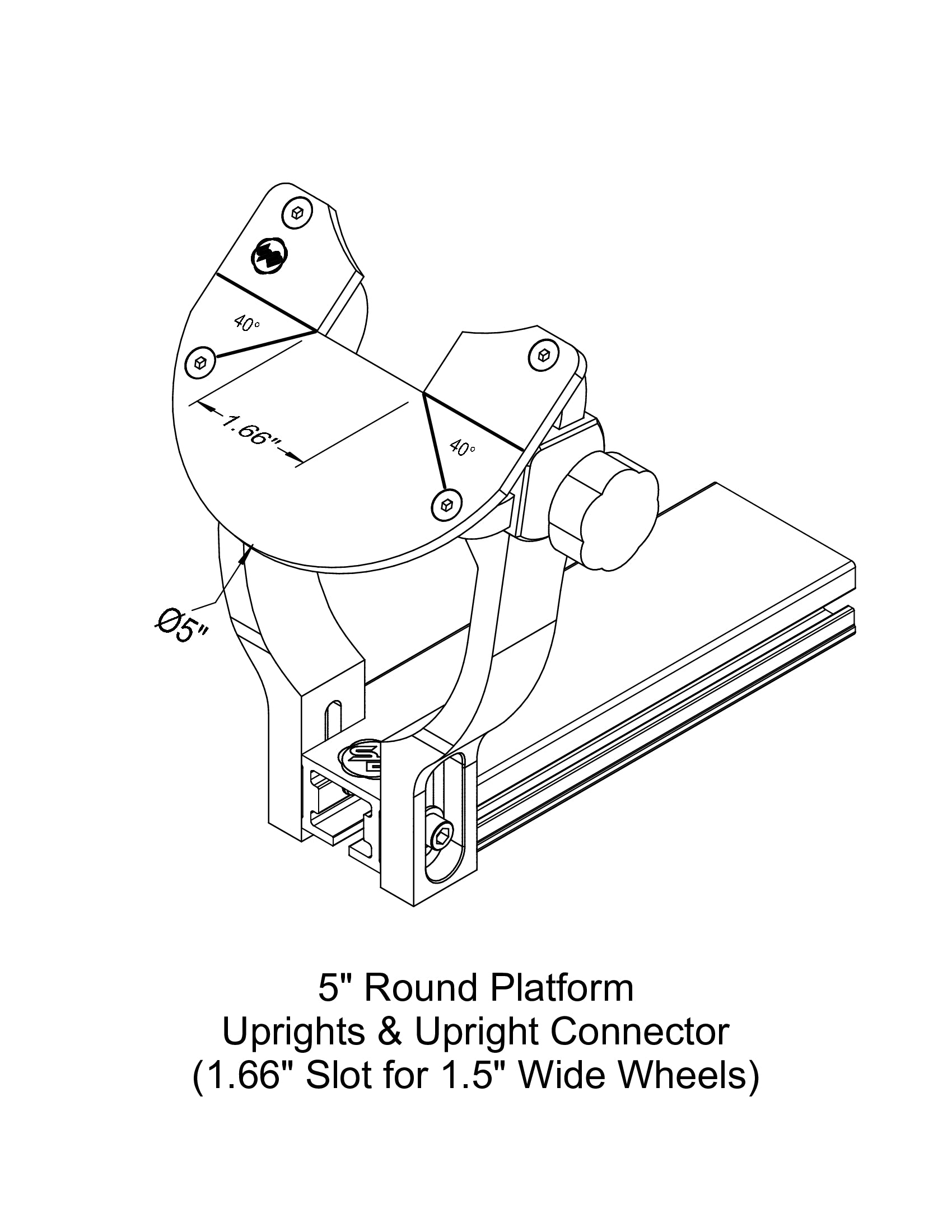

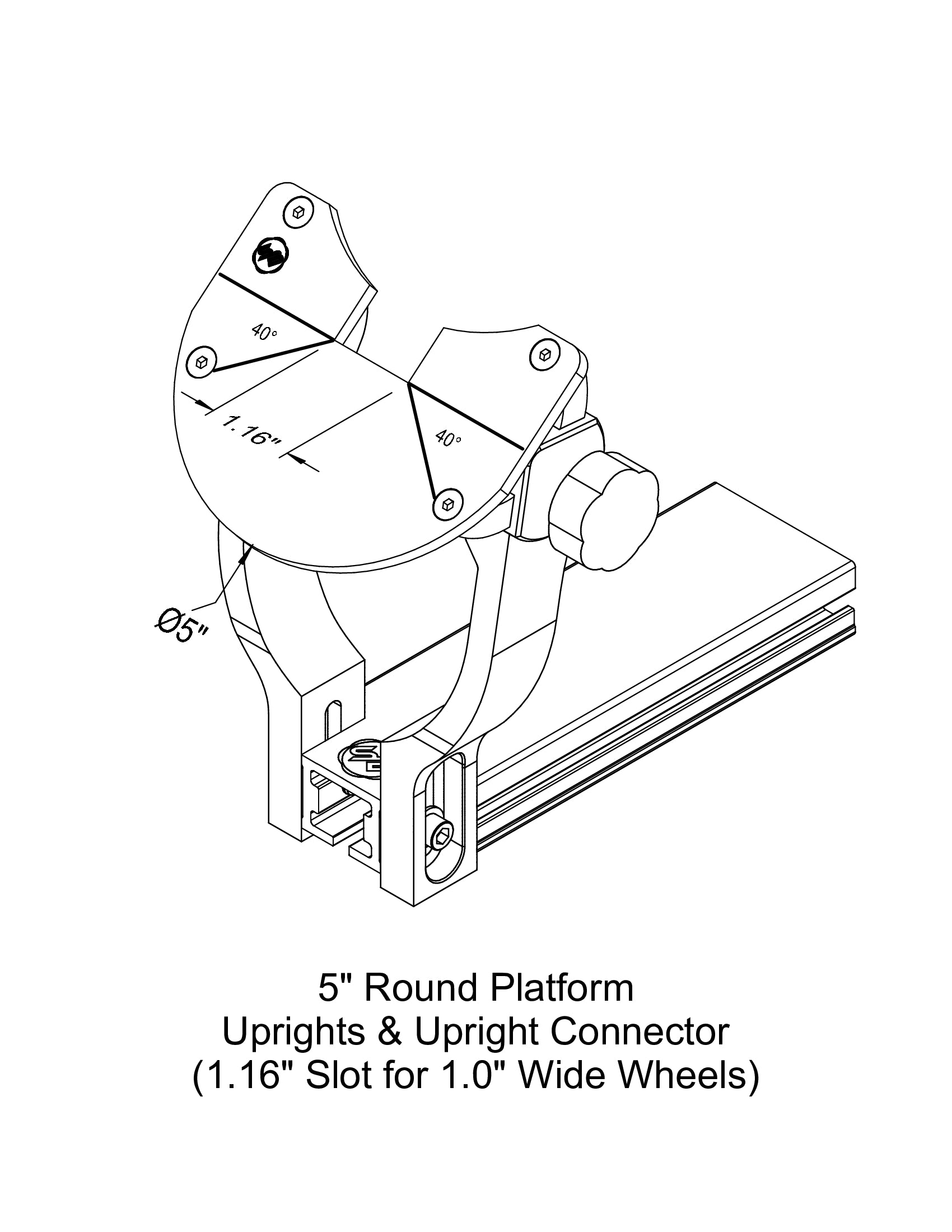

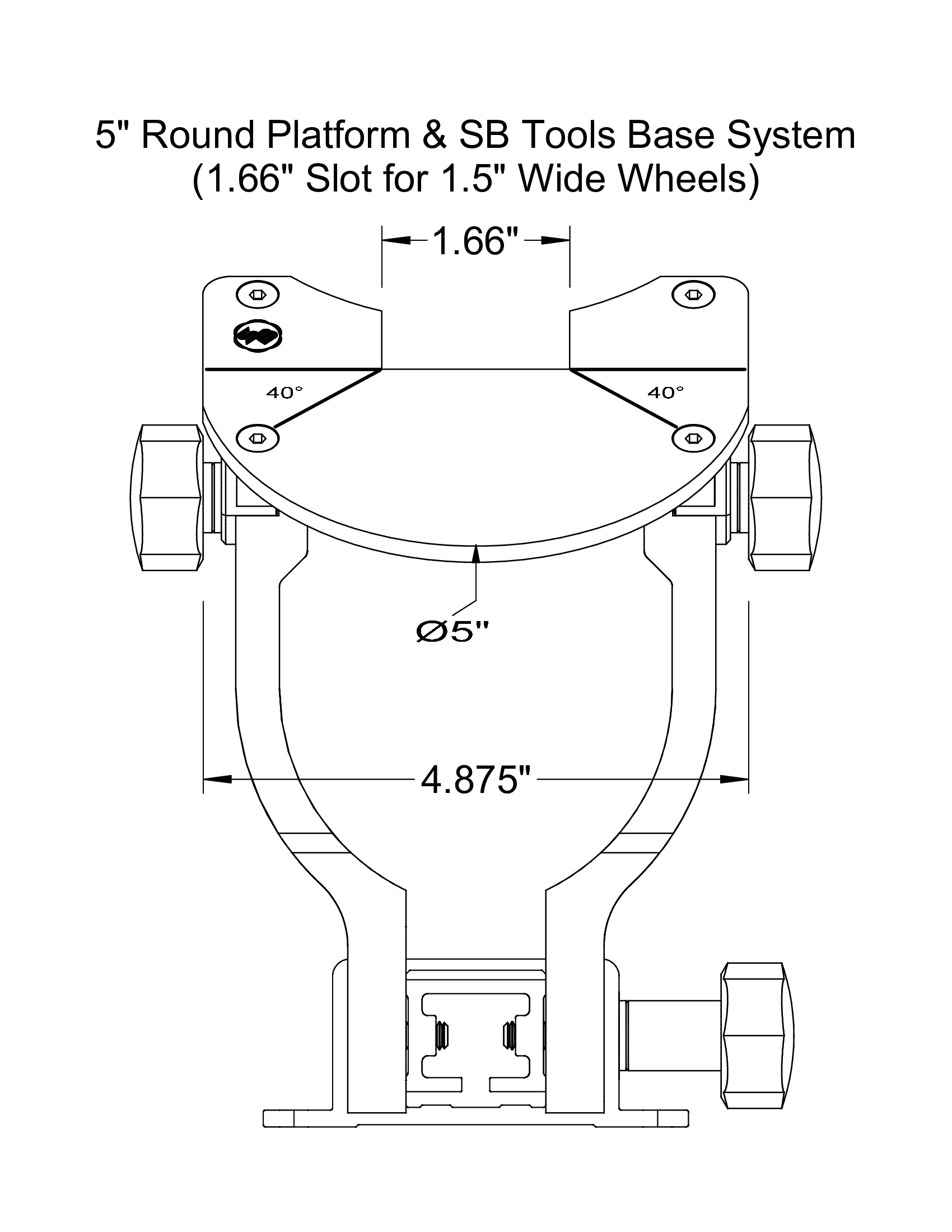

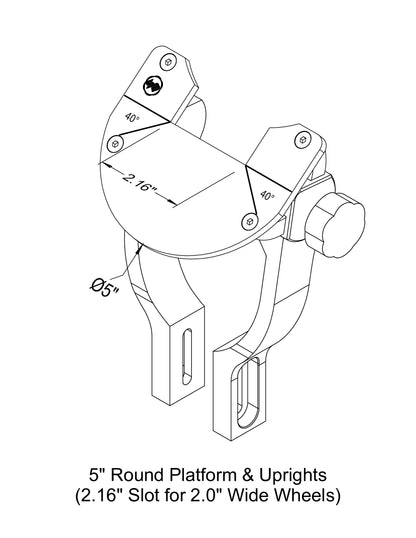

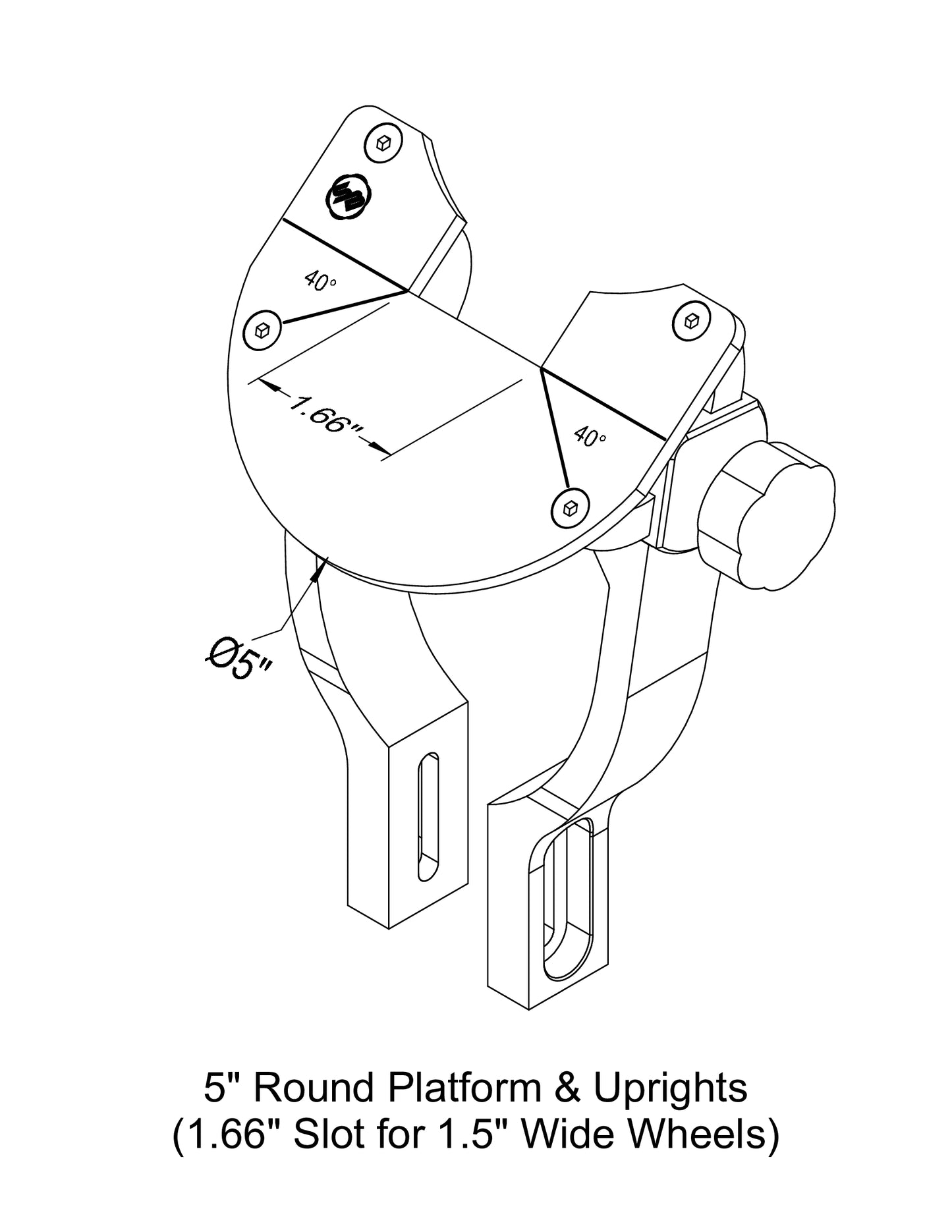

• 5" Round — versatile round platform

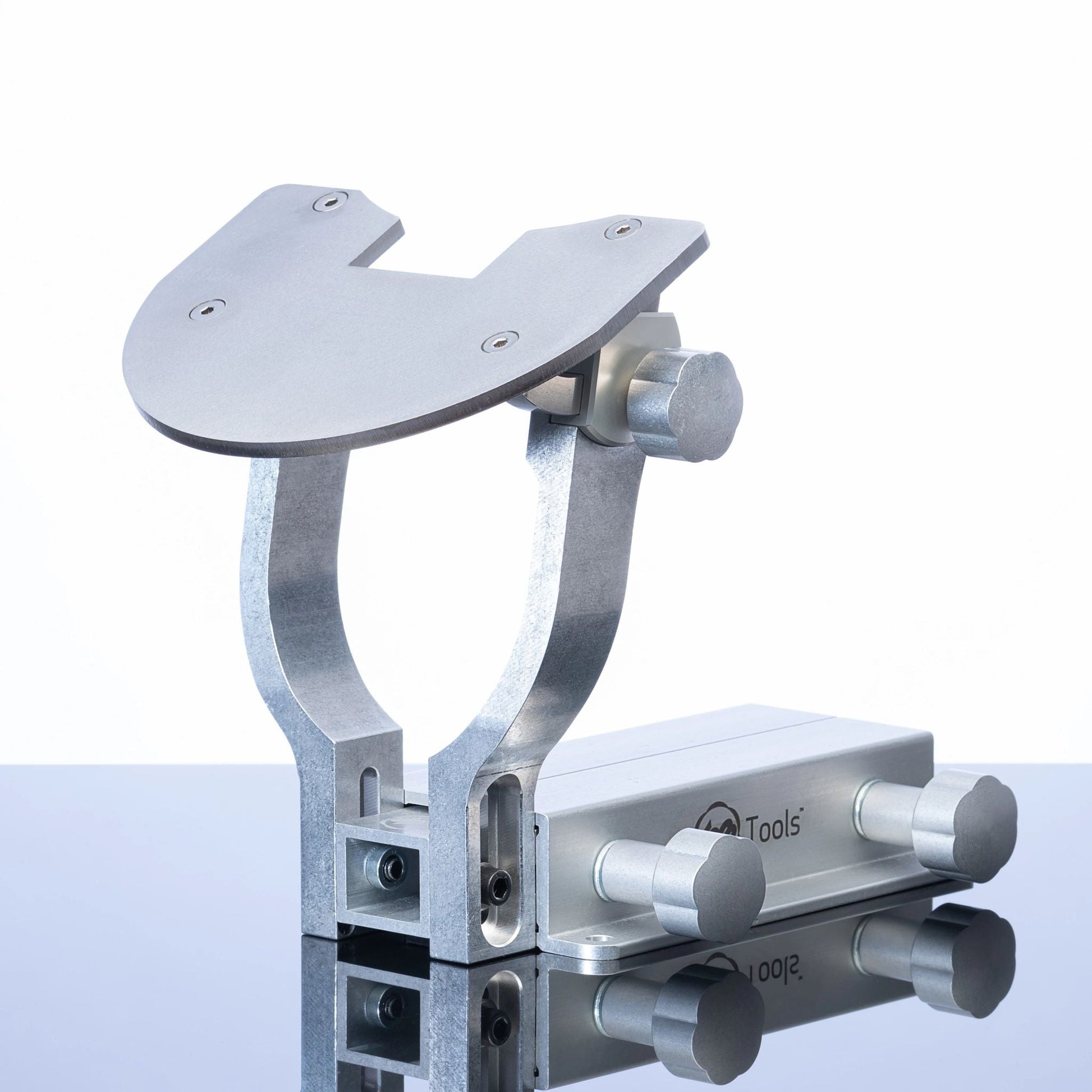

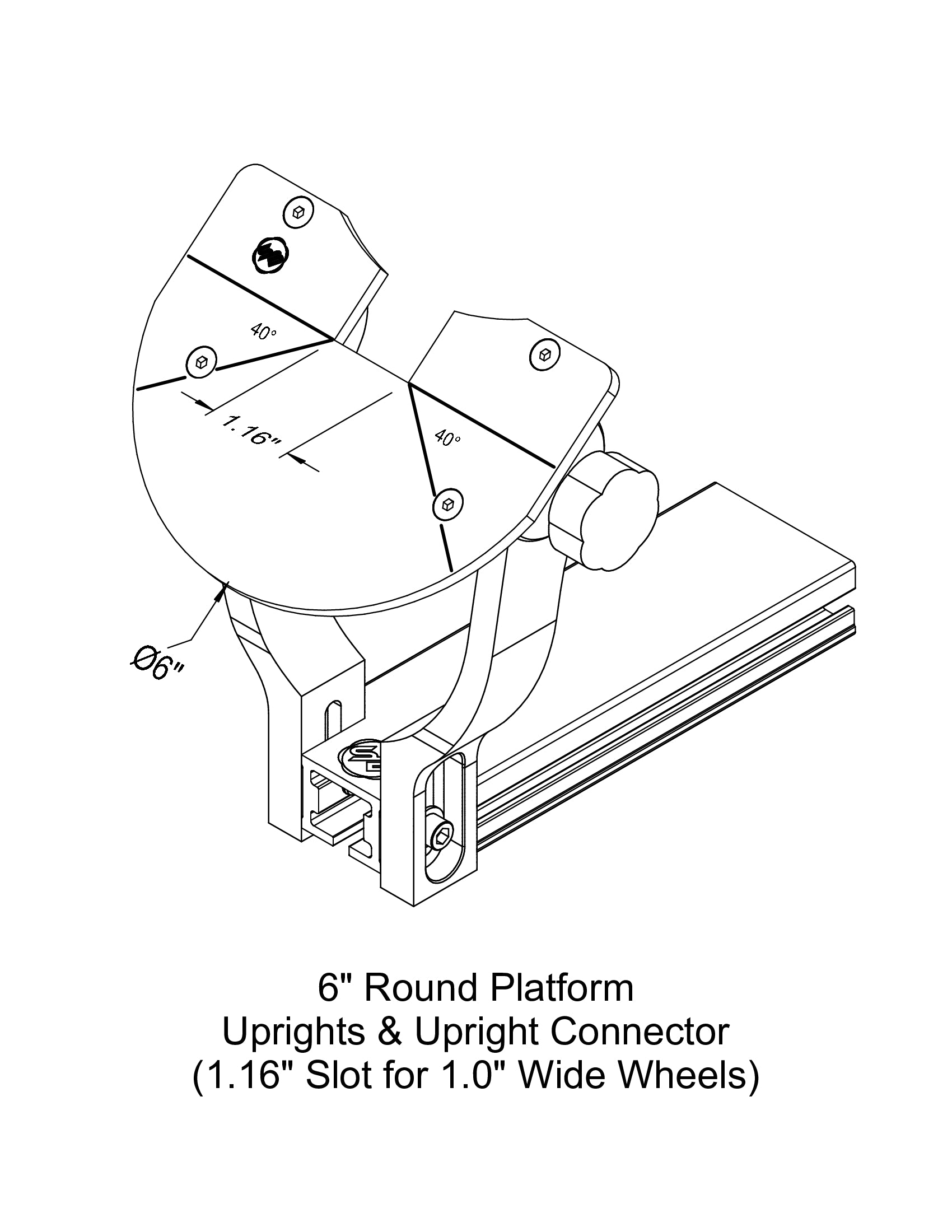

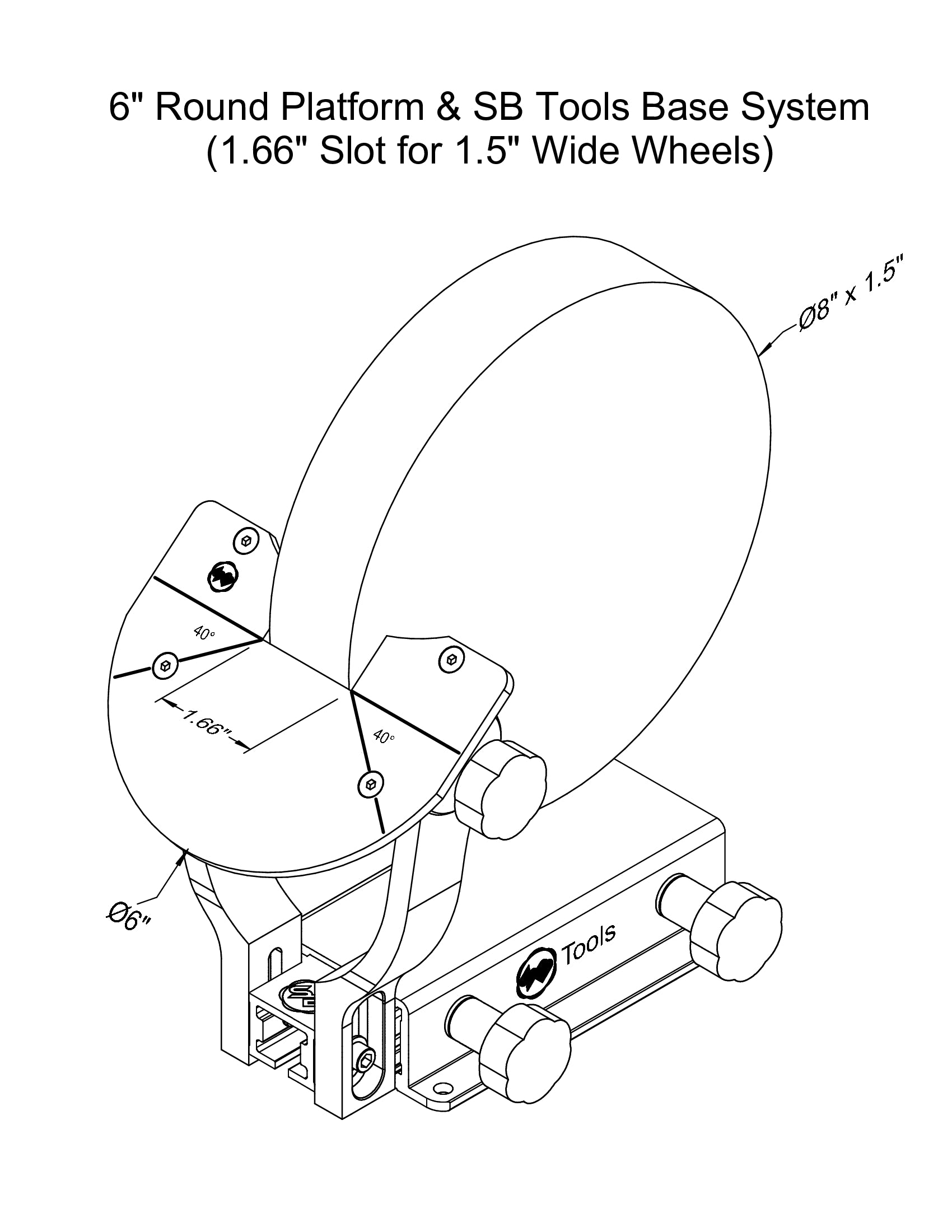

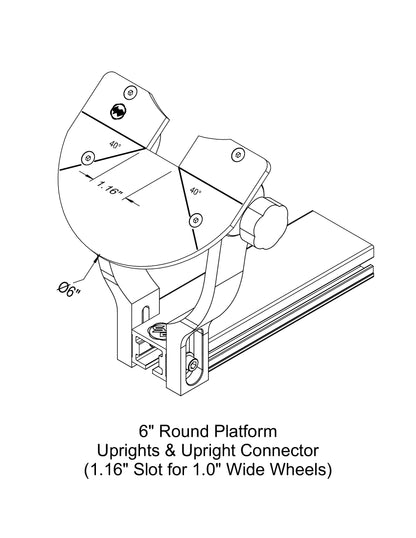

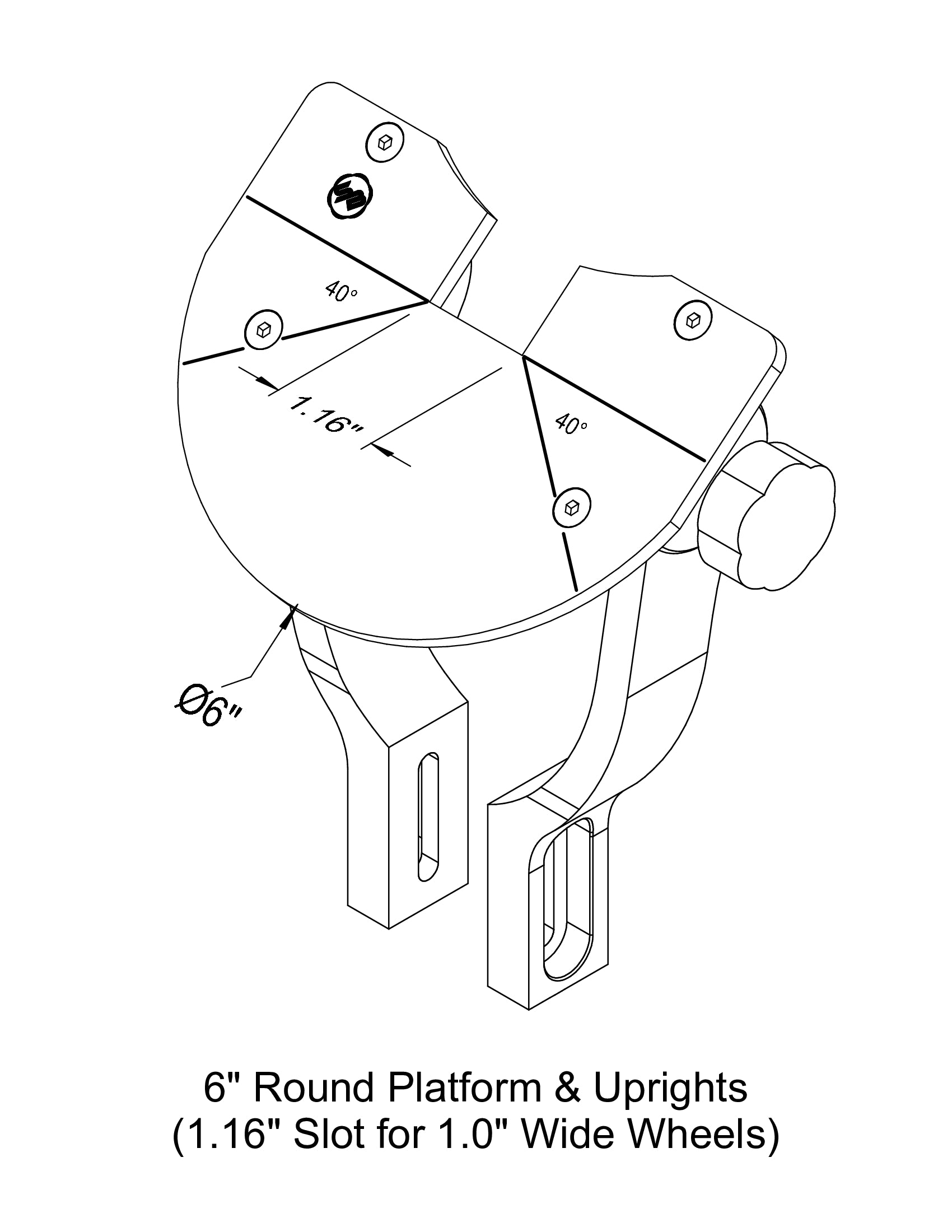

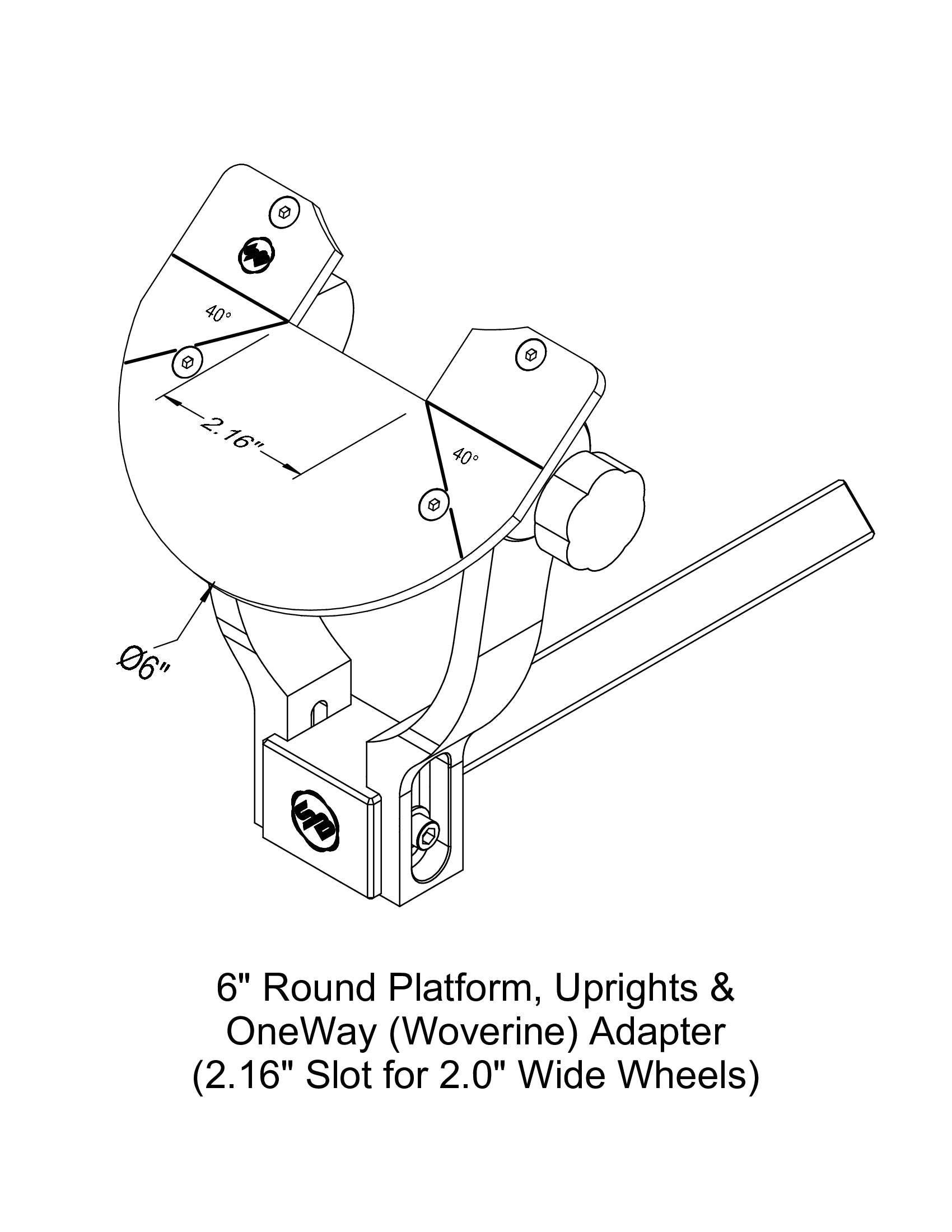

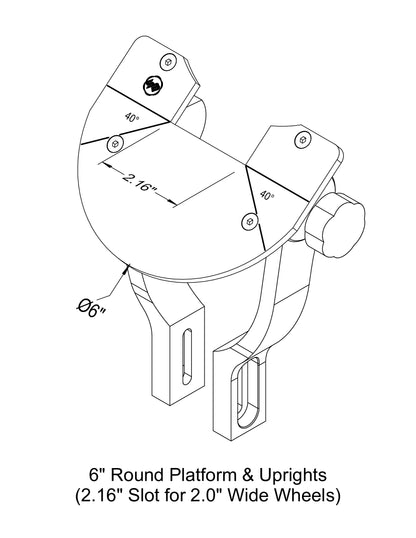

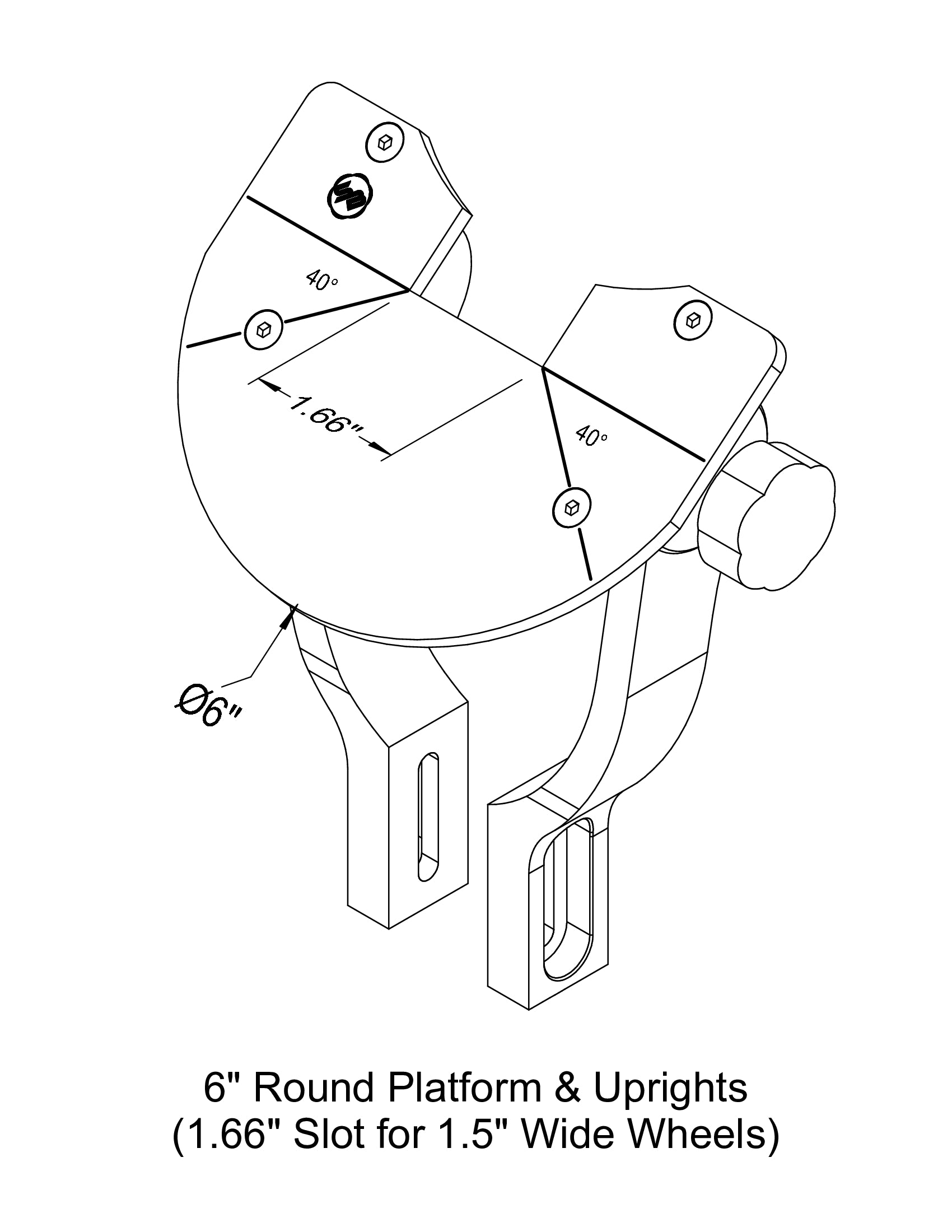

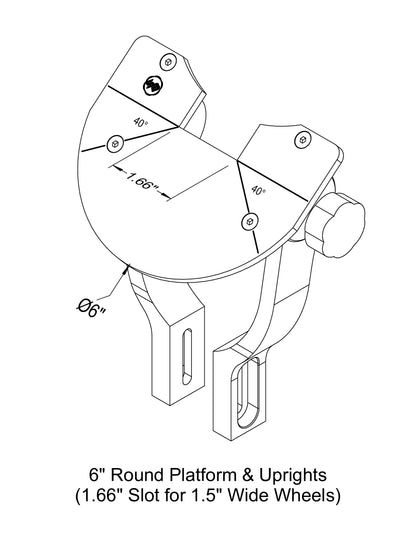

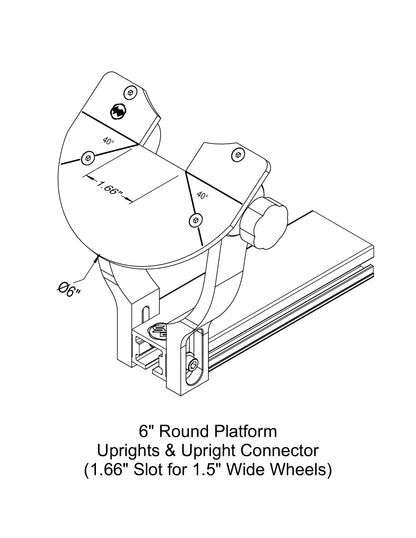

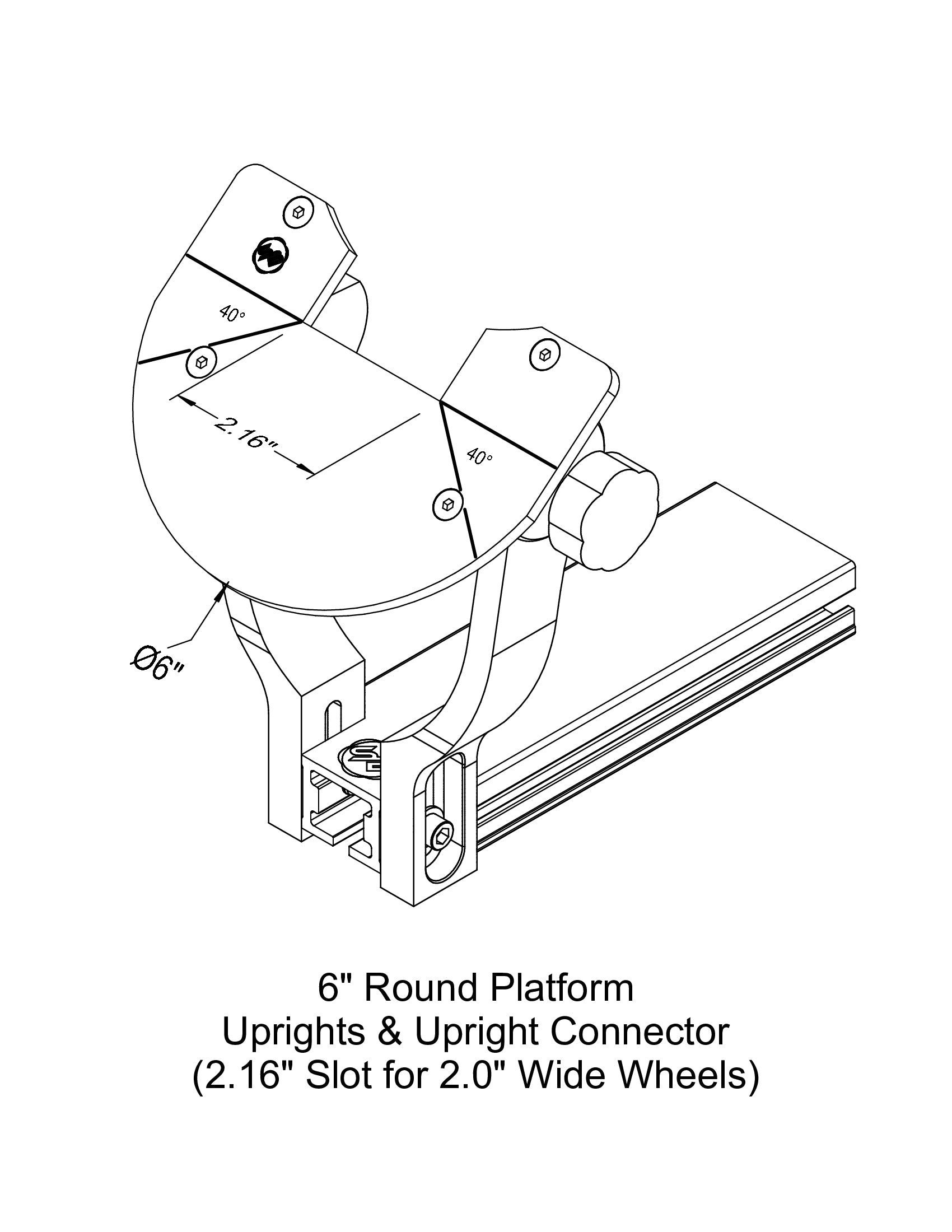

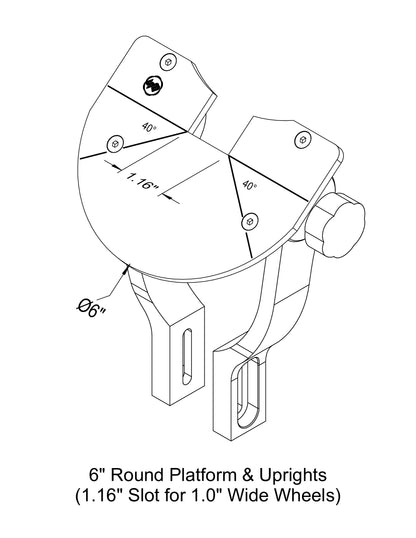

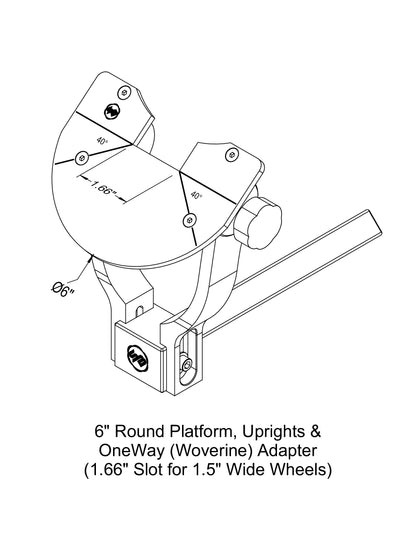

• 6" Round — broader tool support for wider blades and scrapers

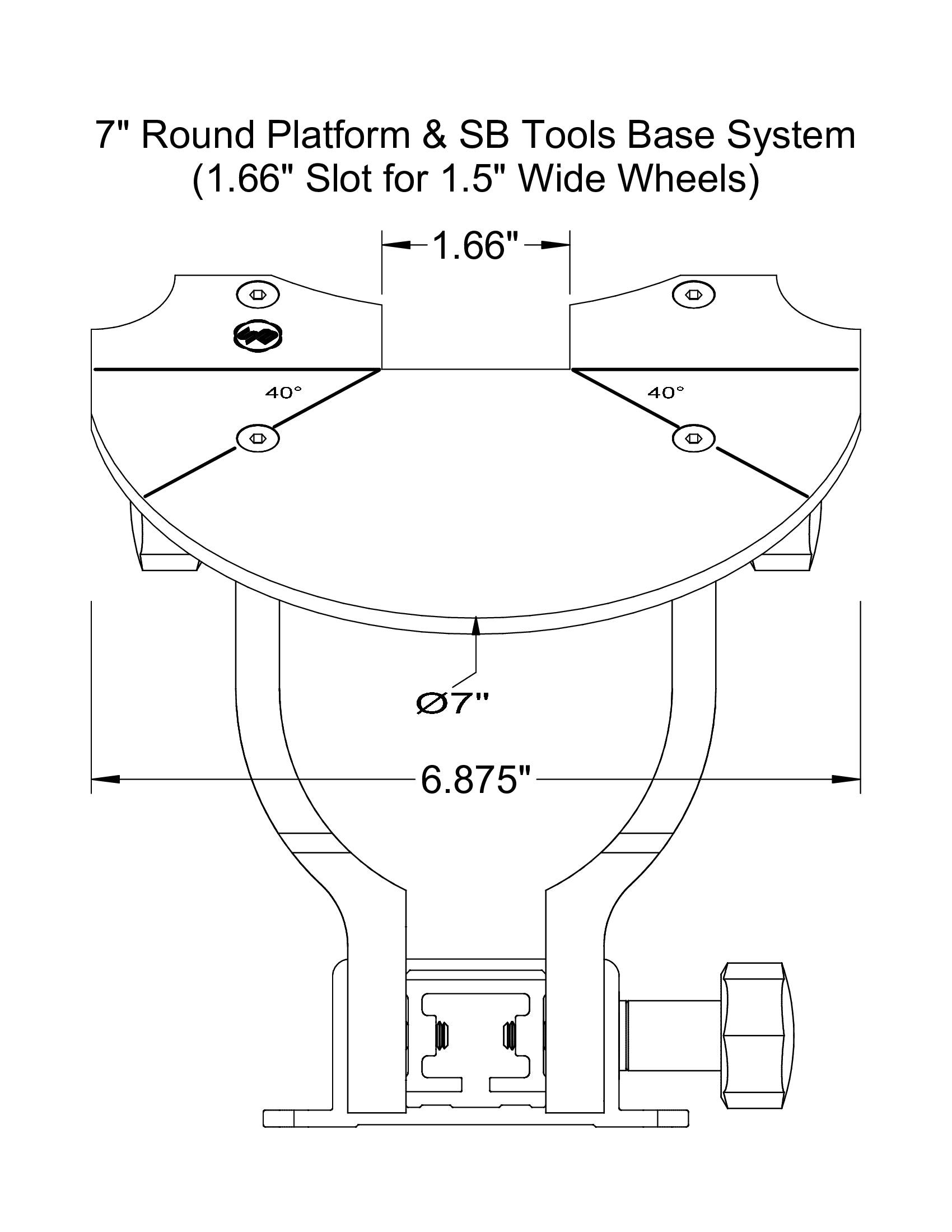

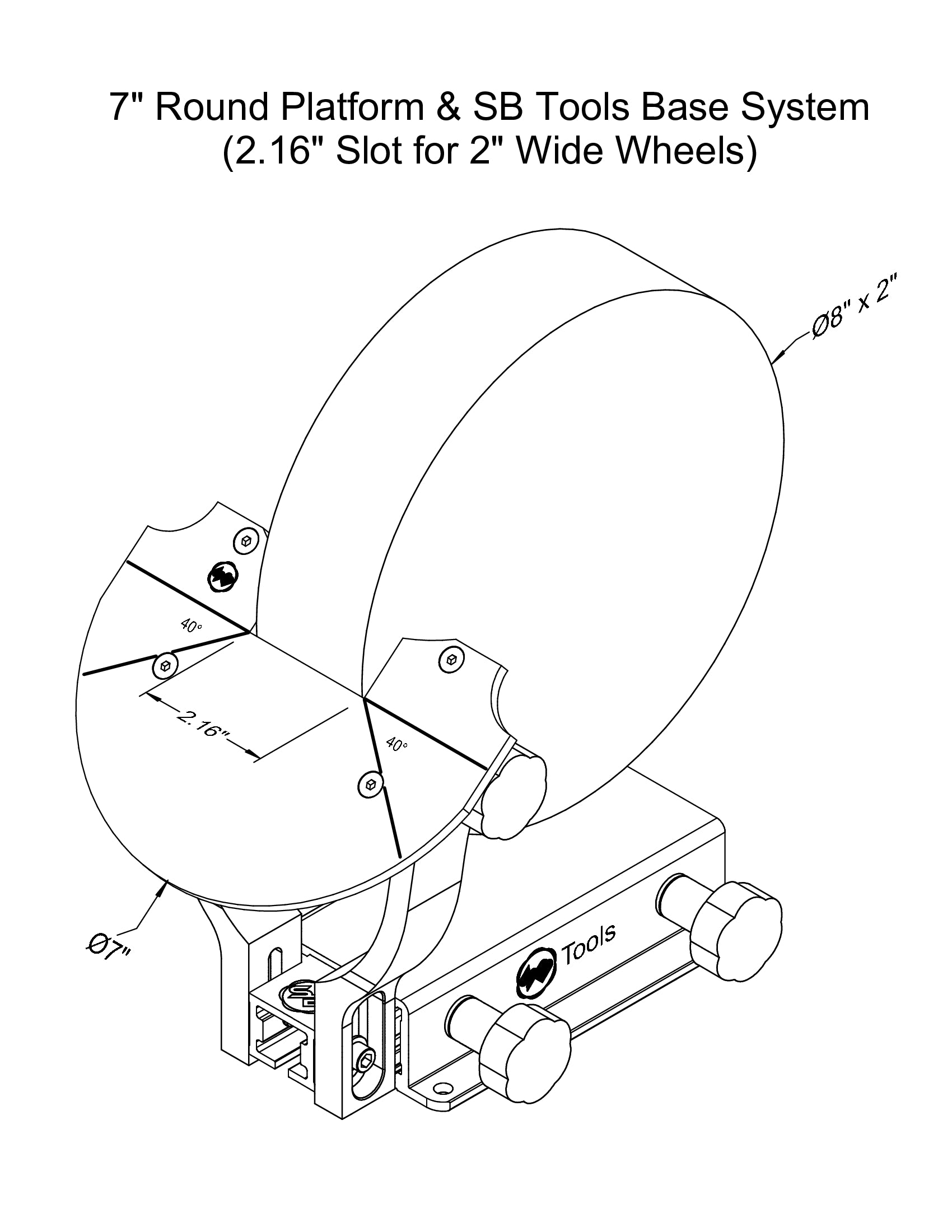

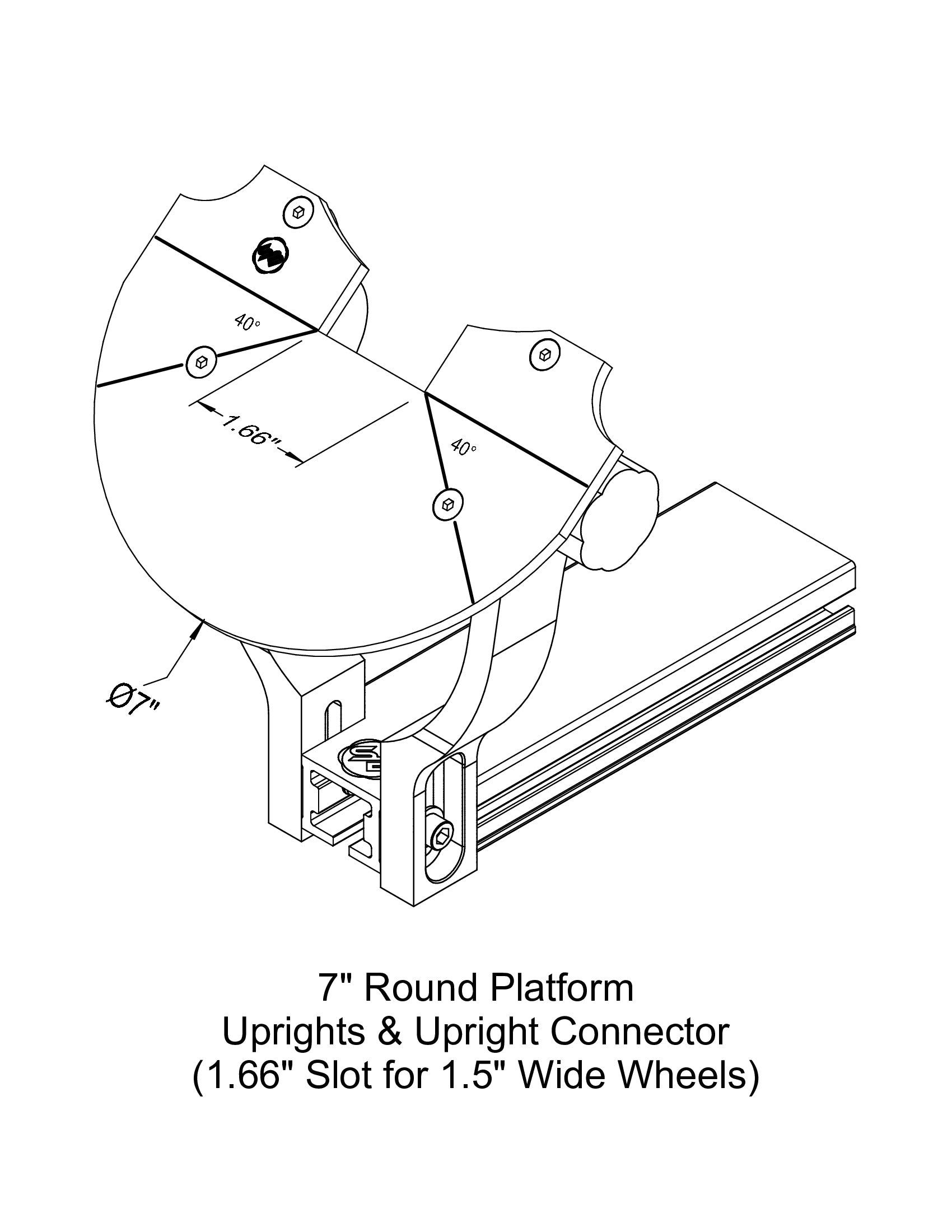

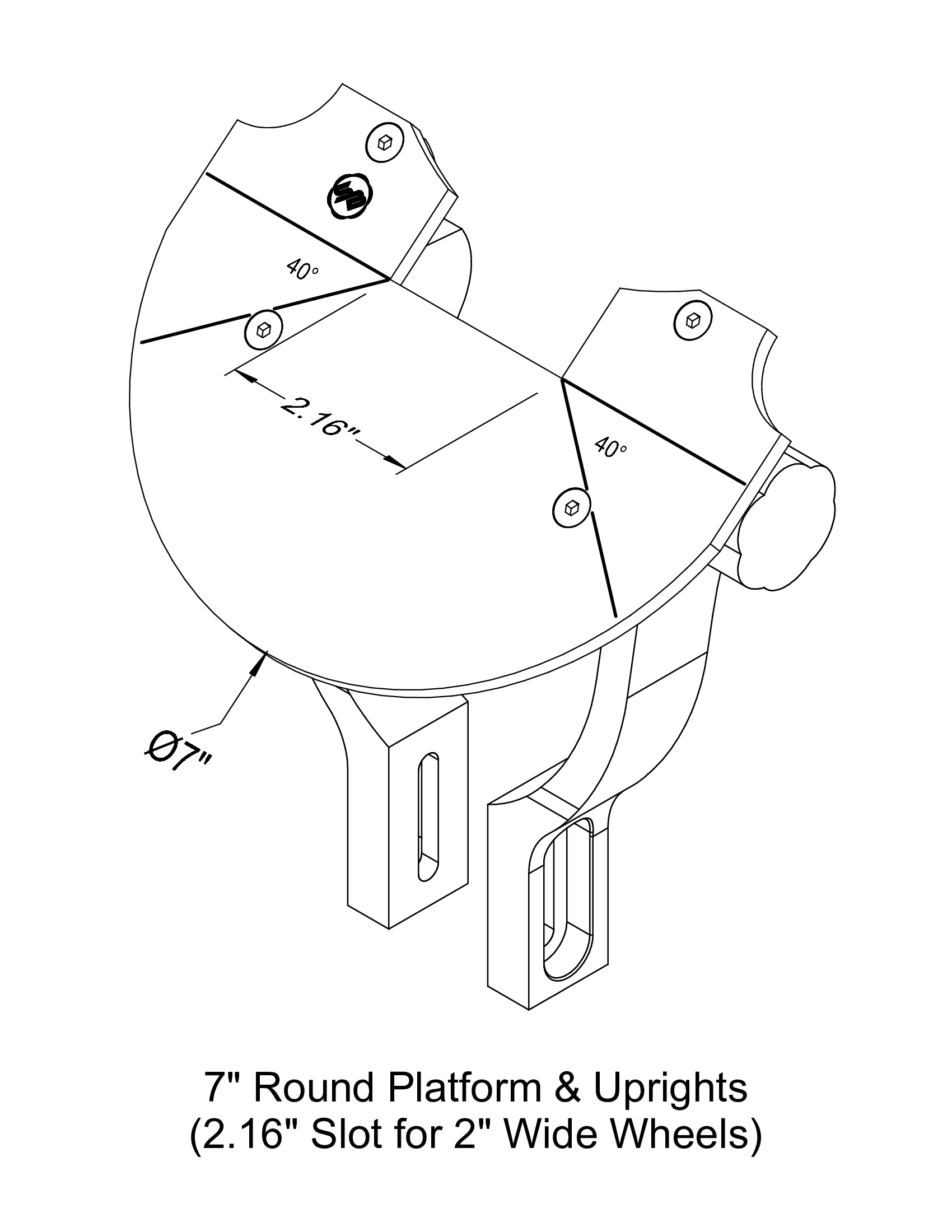

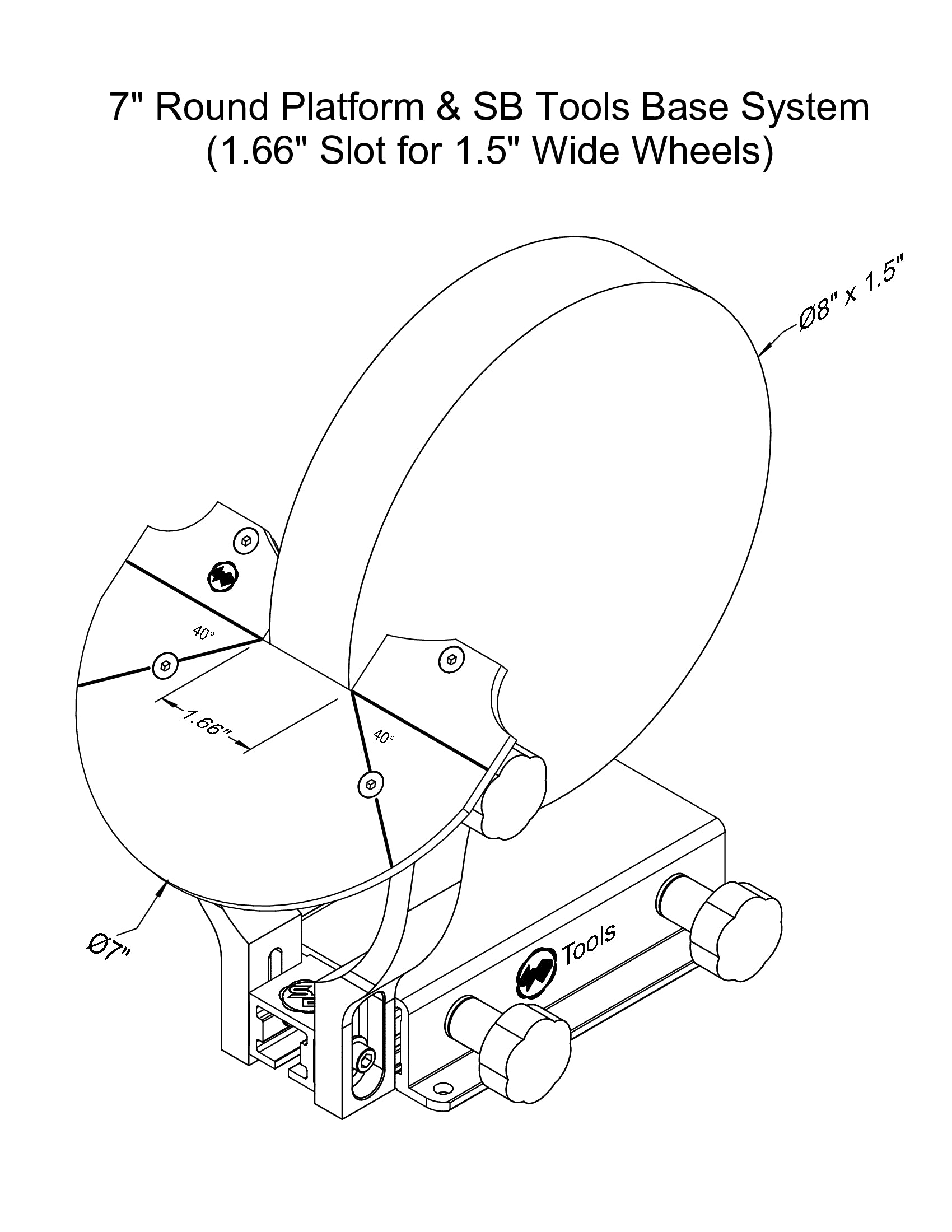

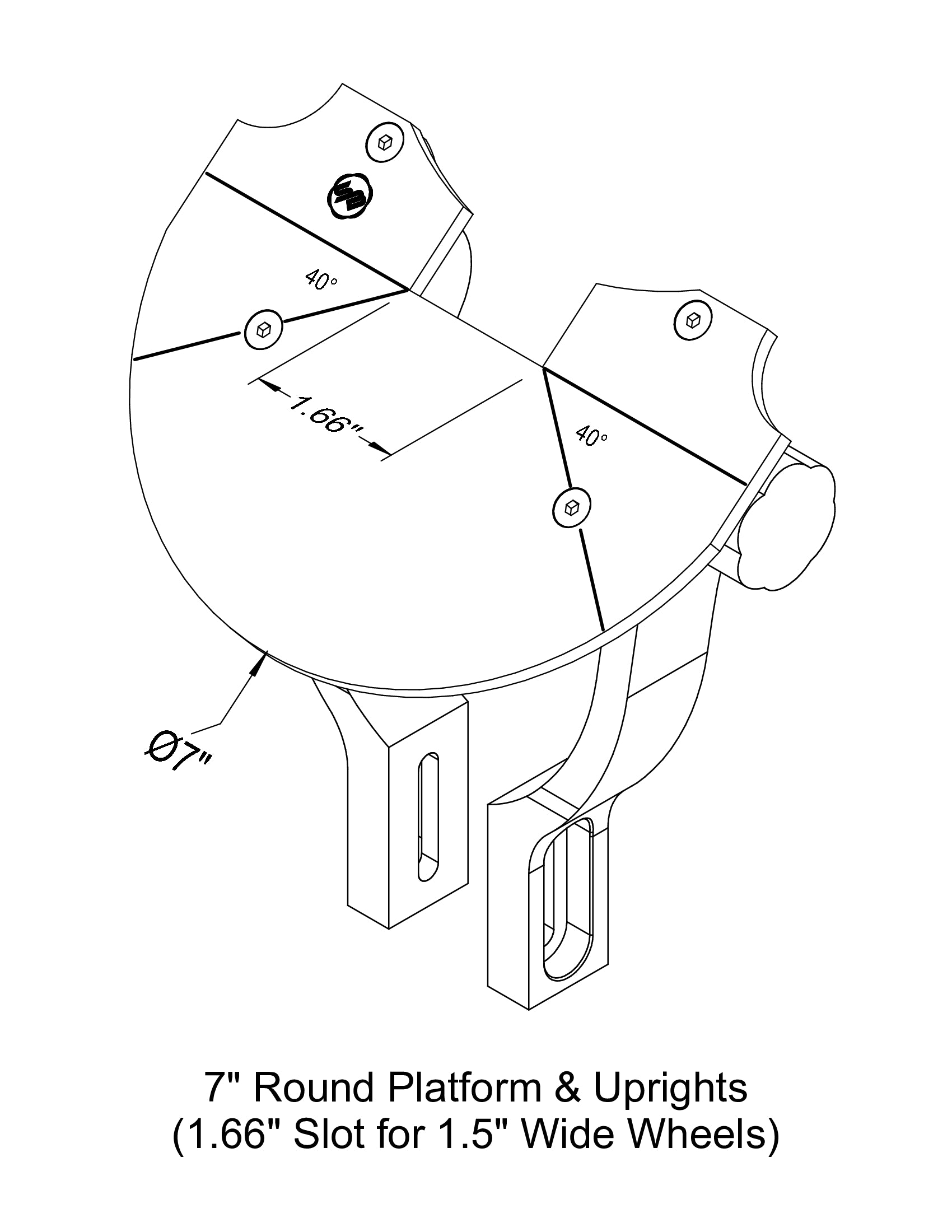

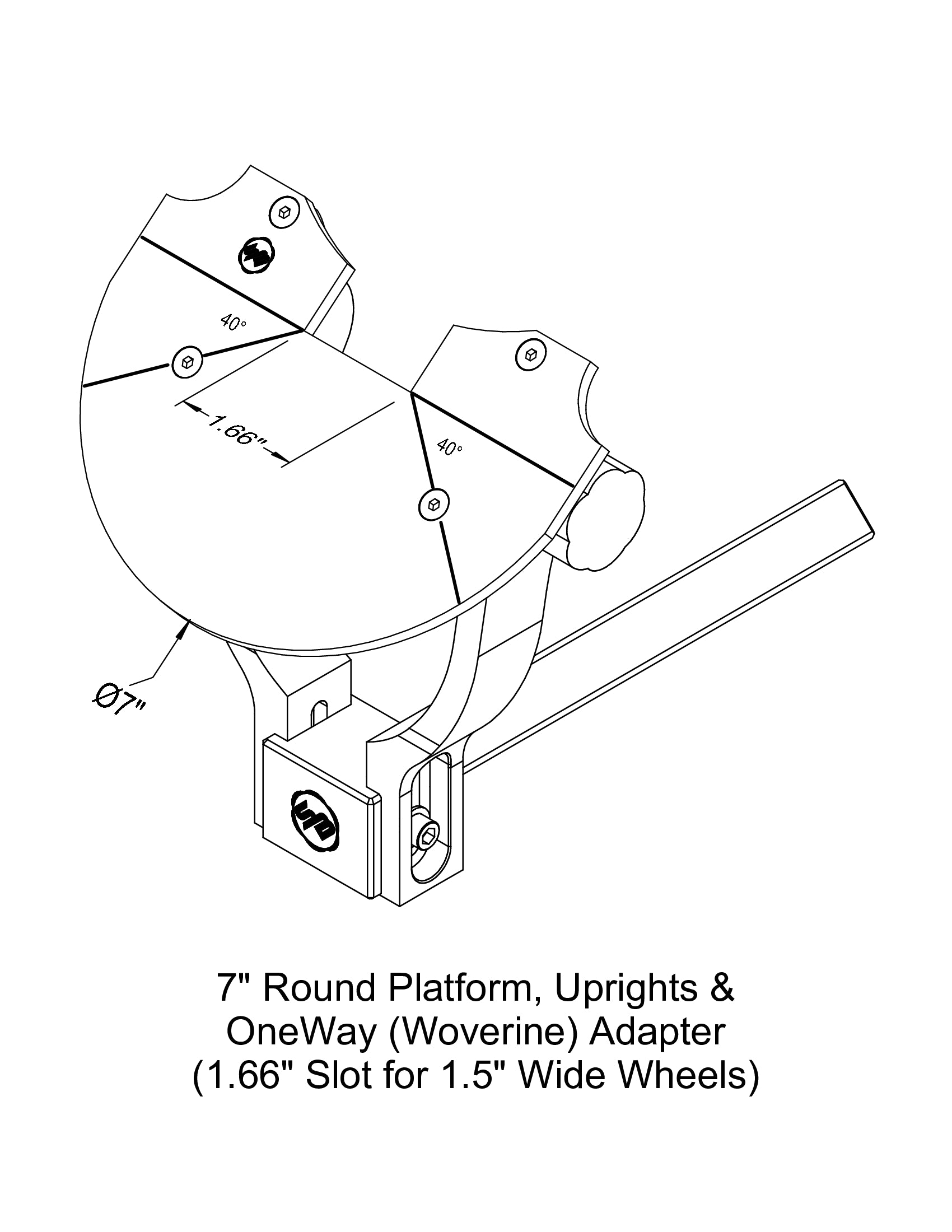

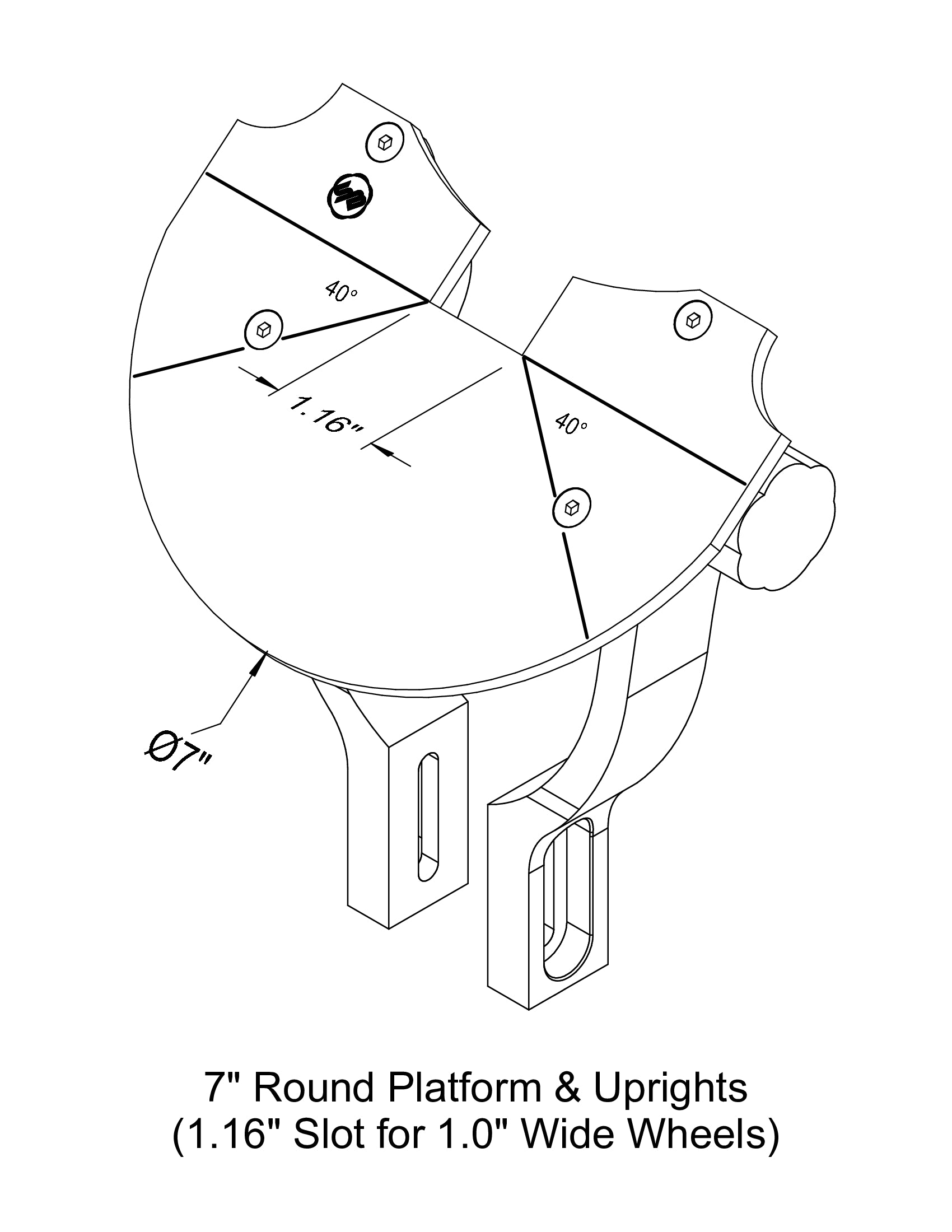

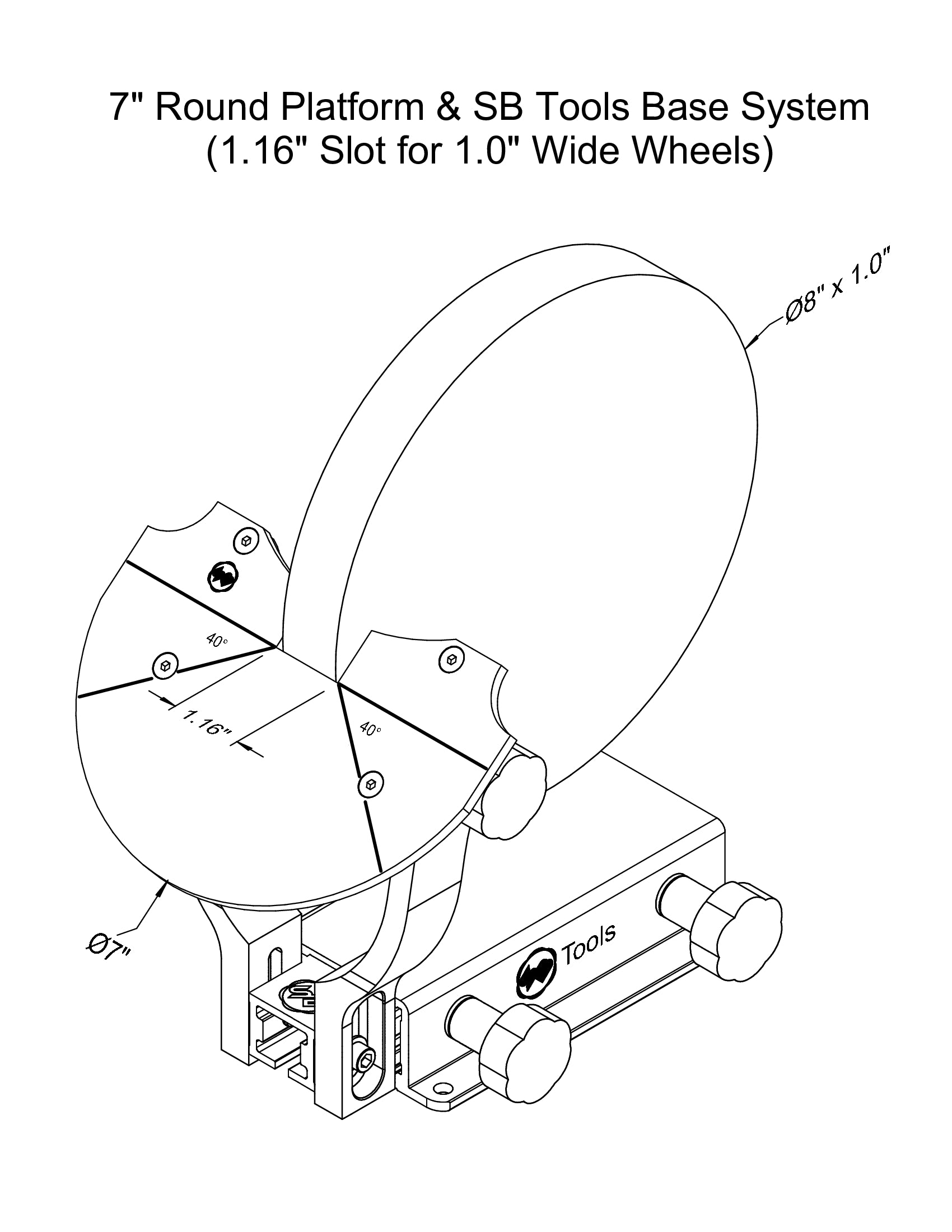

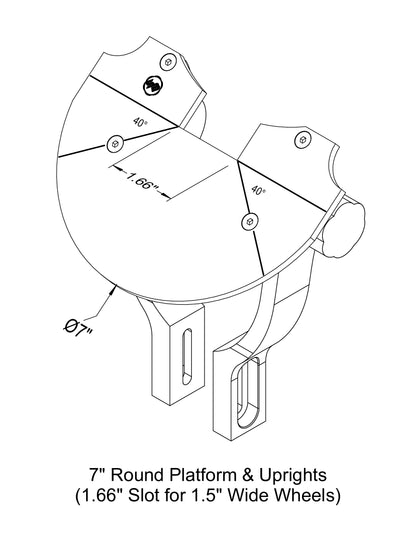

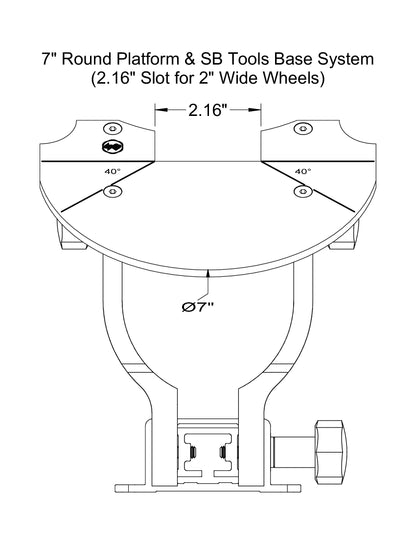

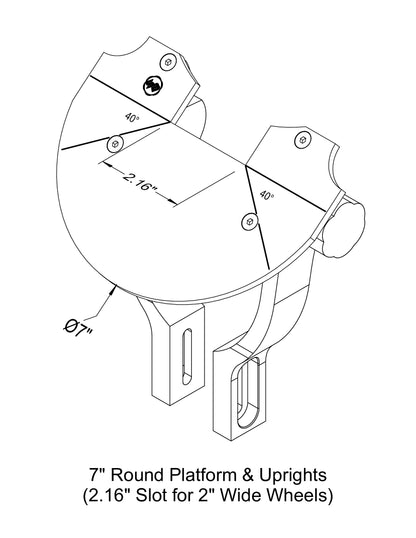

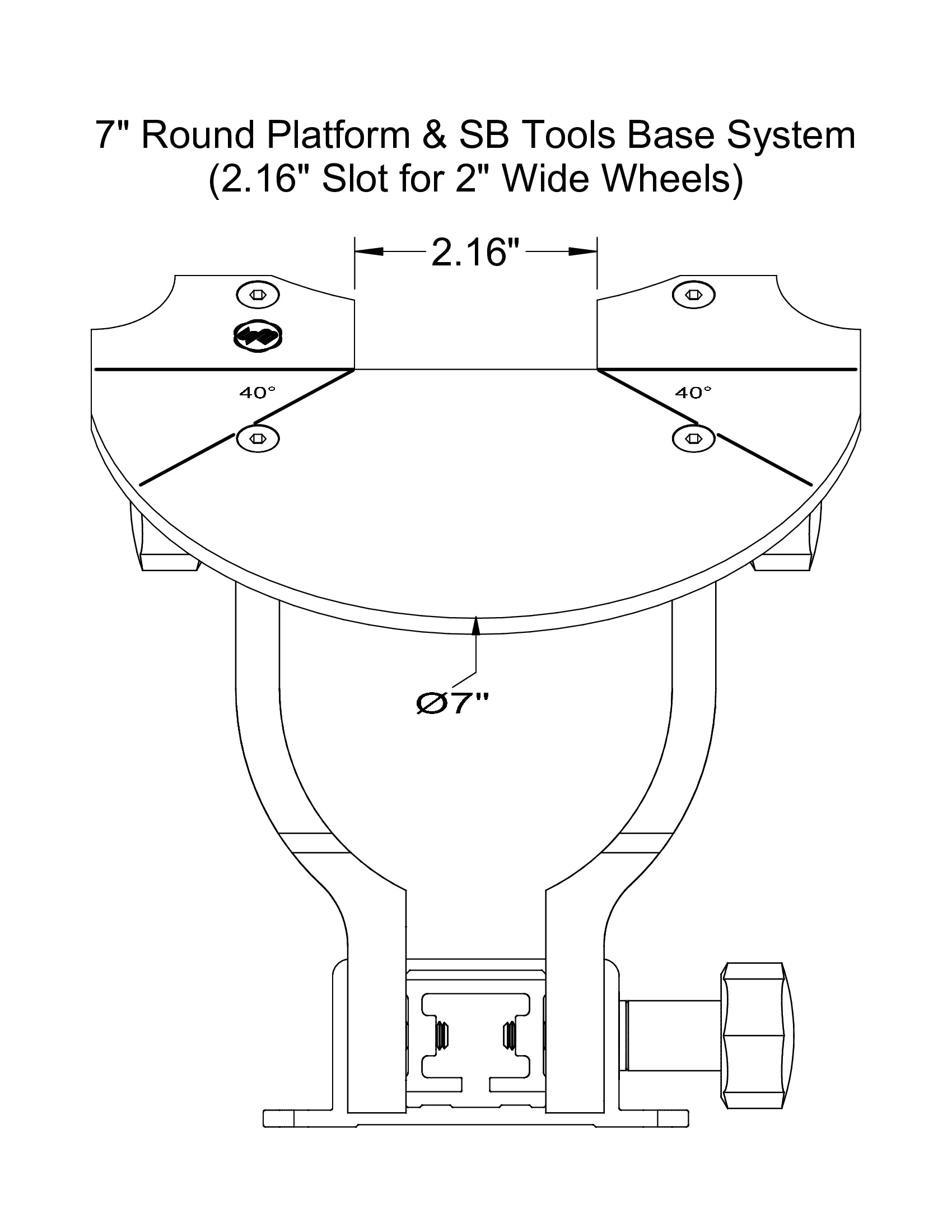

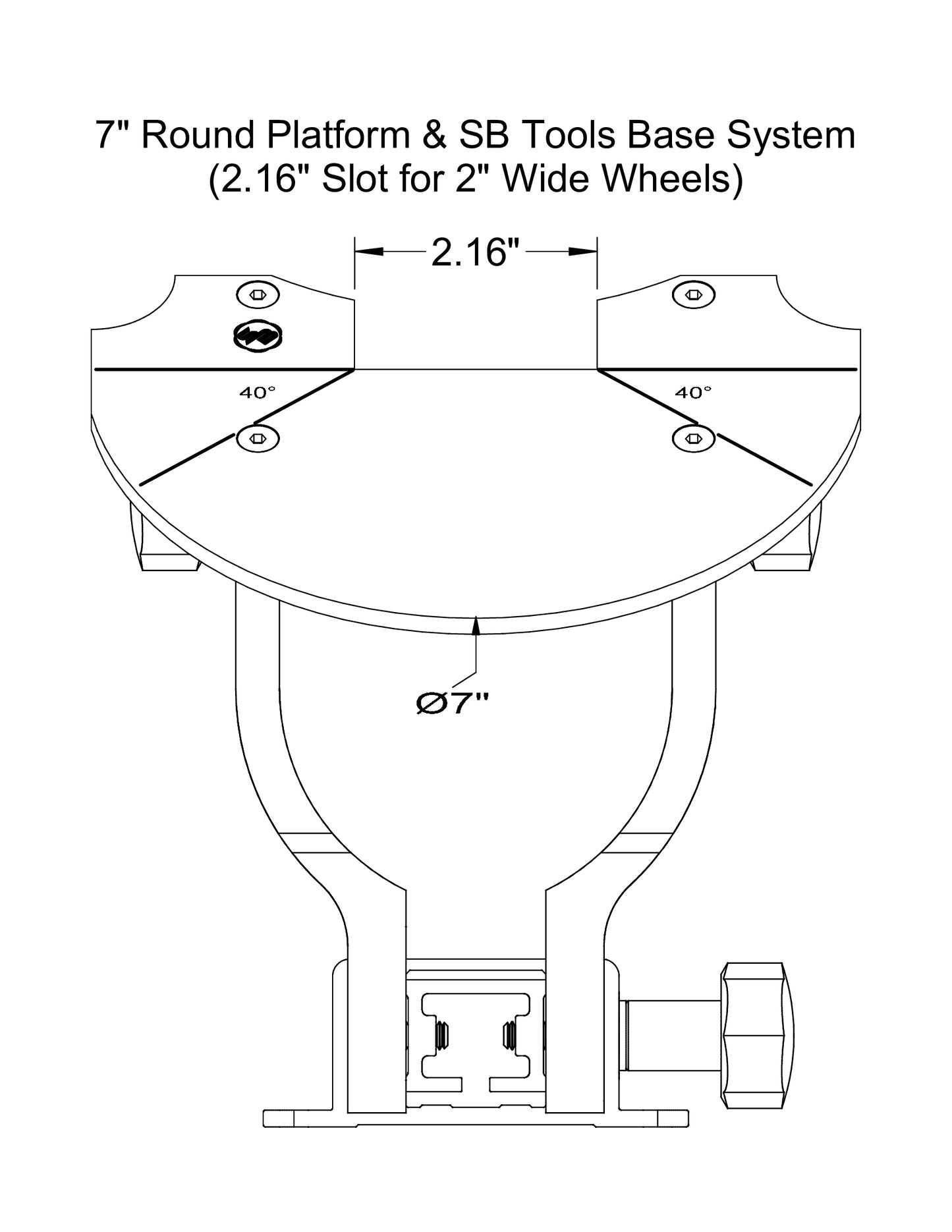

• 7" Round — the largest platform, maximum tool support area

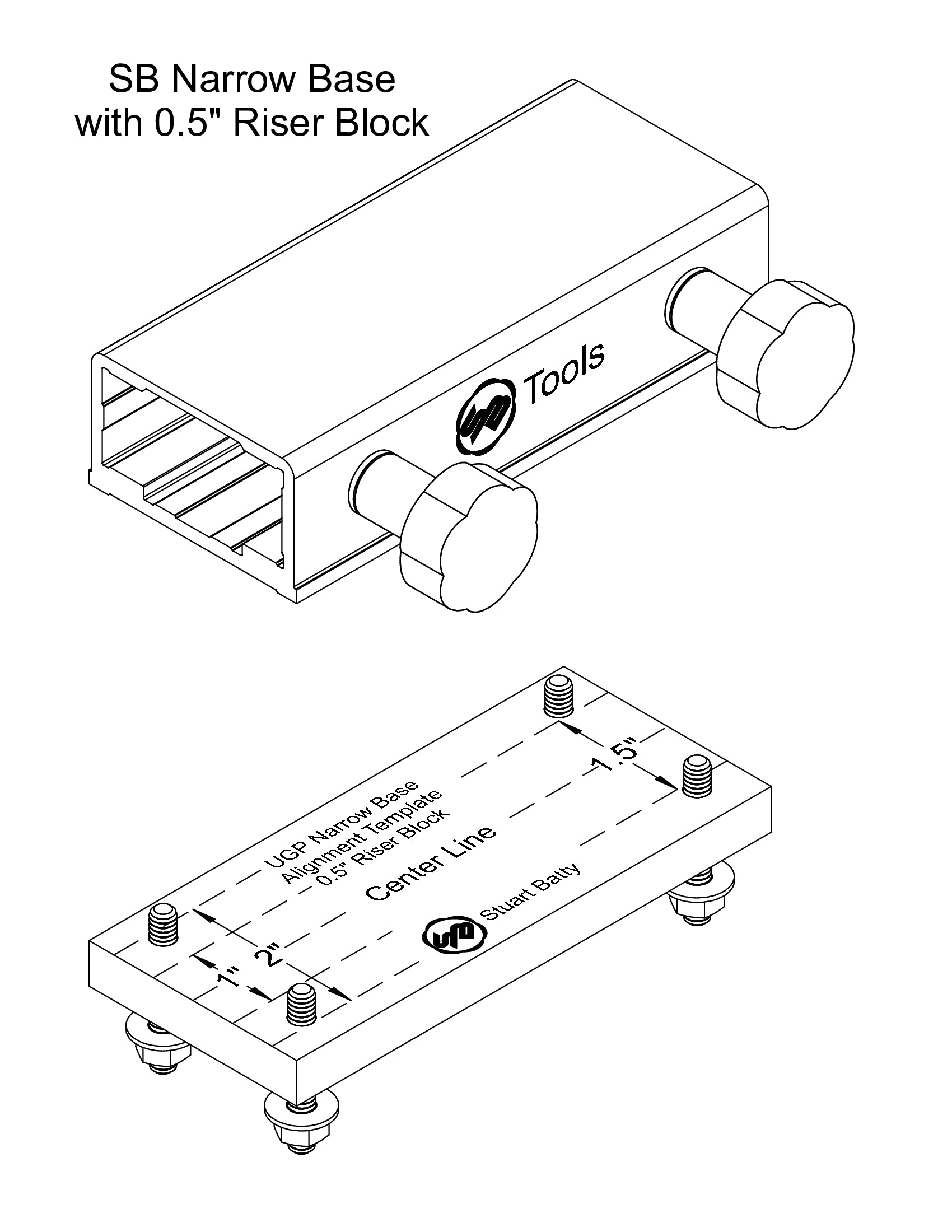

Base System Options

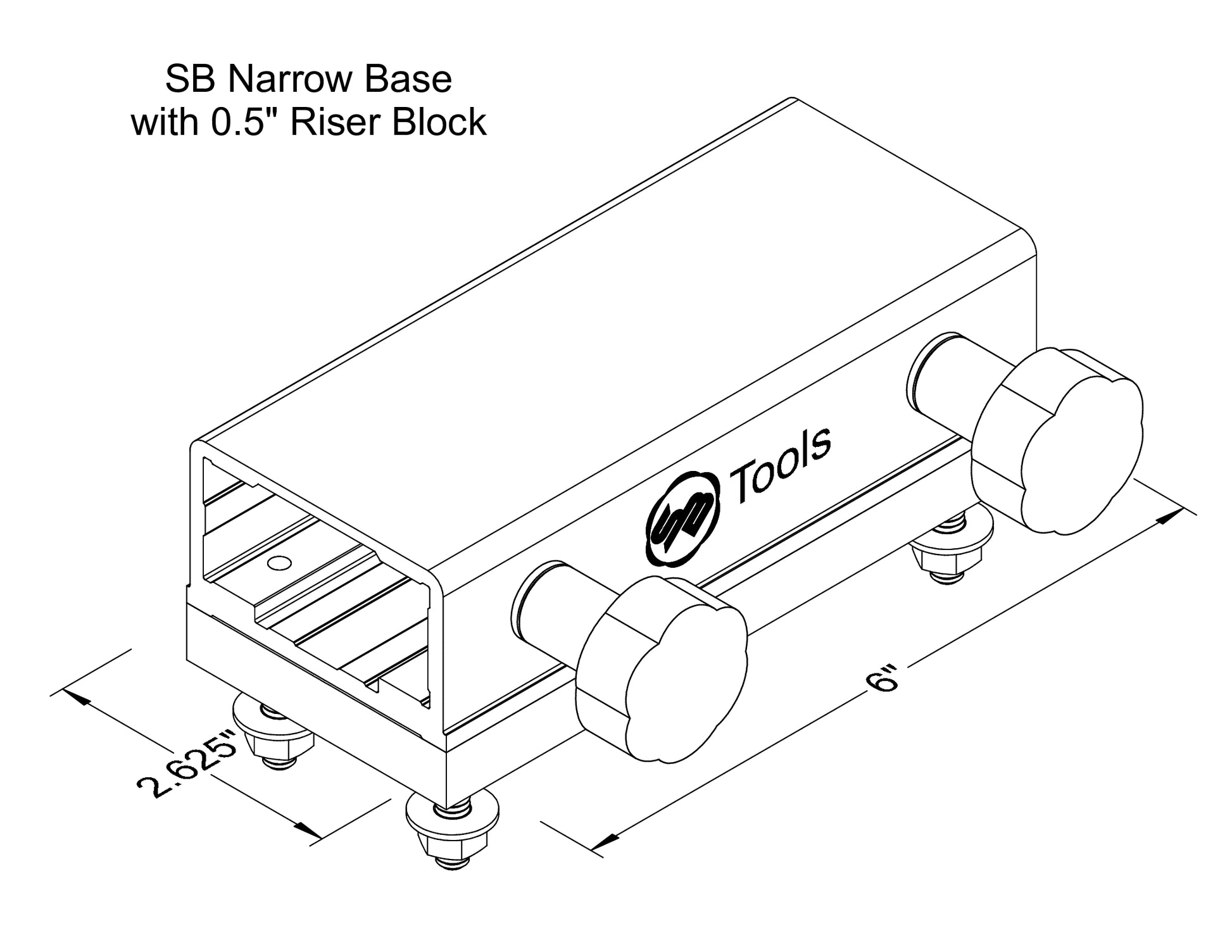

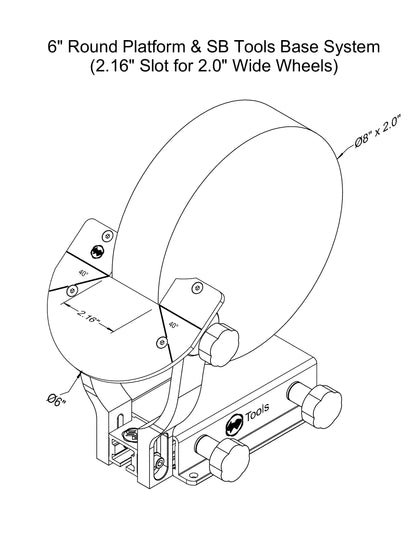

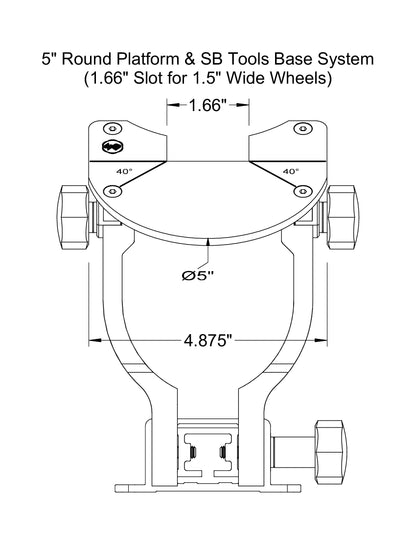

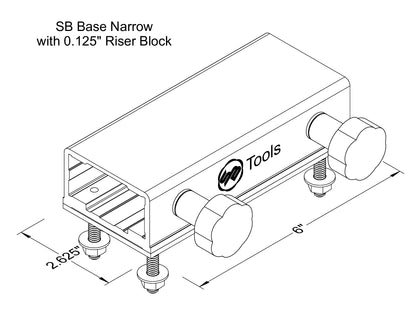

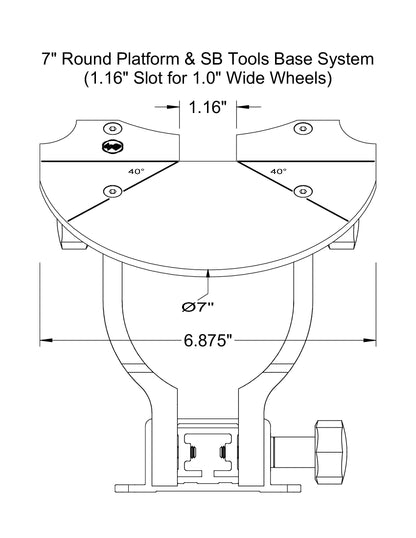

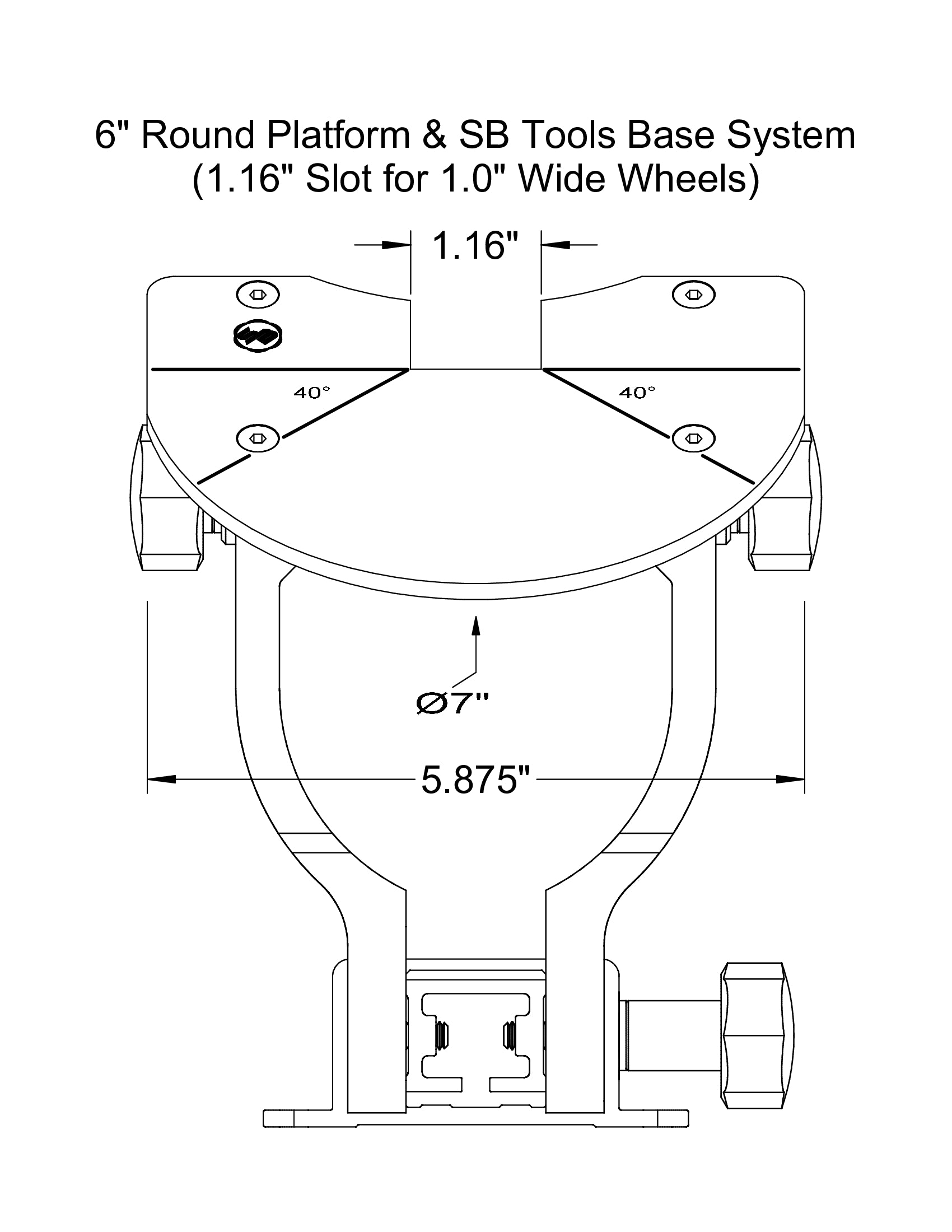

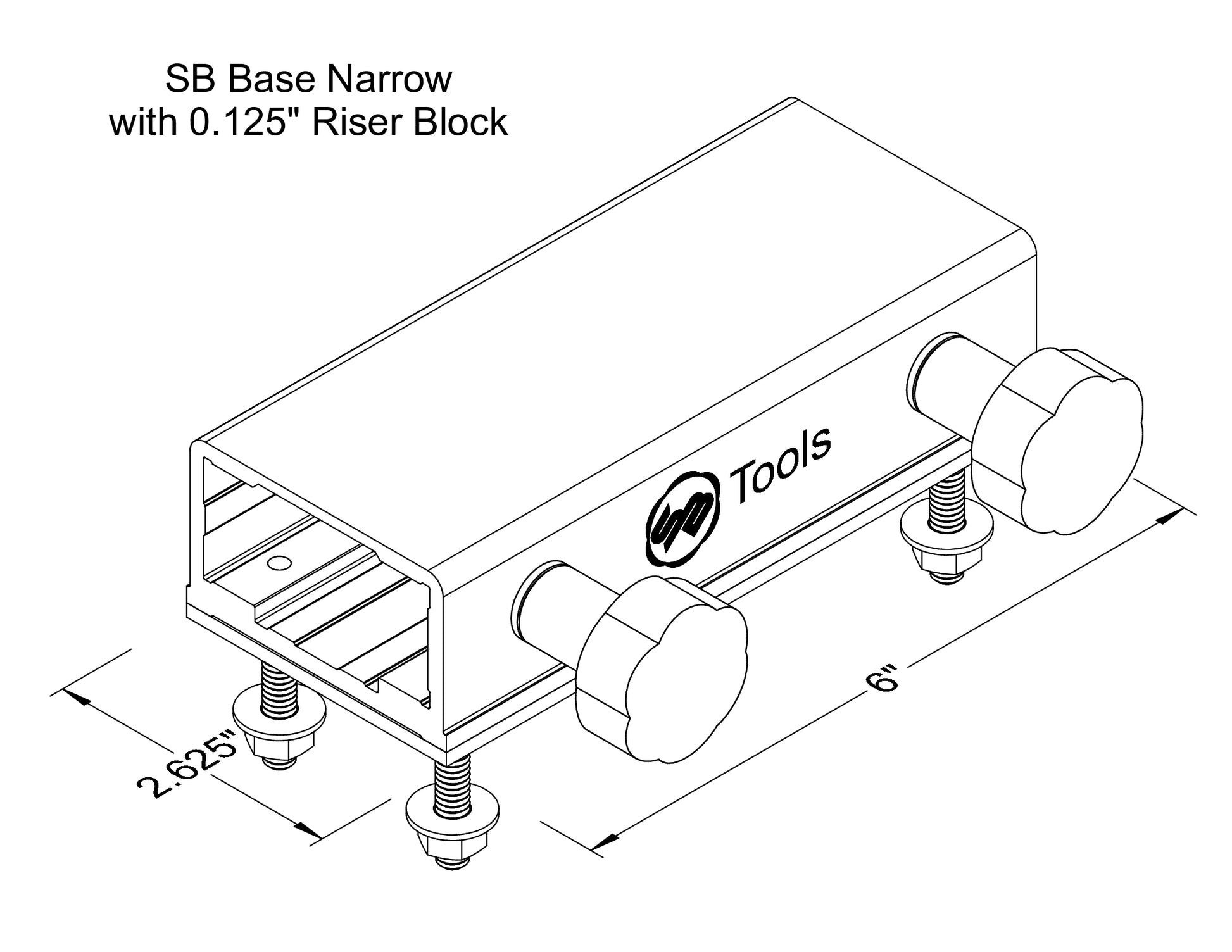

• UGP Base System — includes UGP base with dual locking pressure plate and upright connector

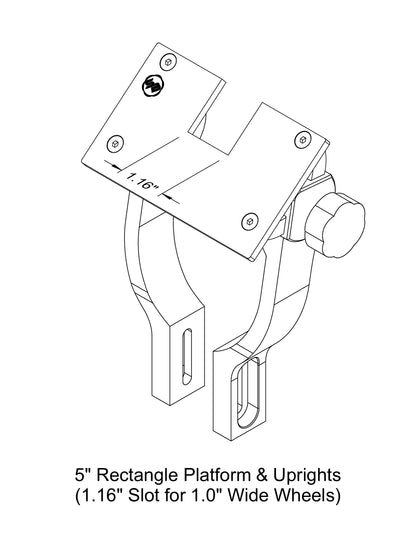

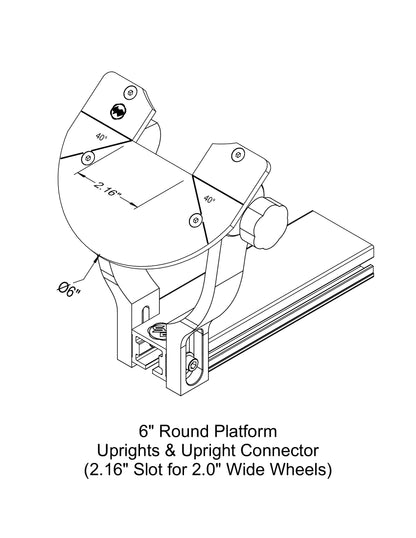

• Upright Connector Only — for adding a platform to an existing UGP base

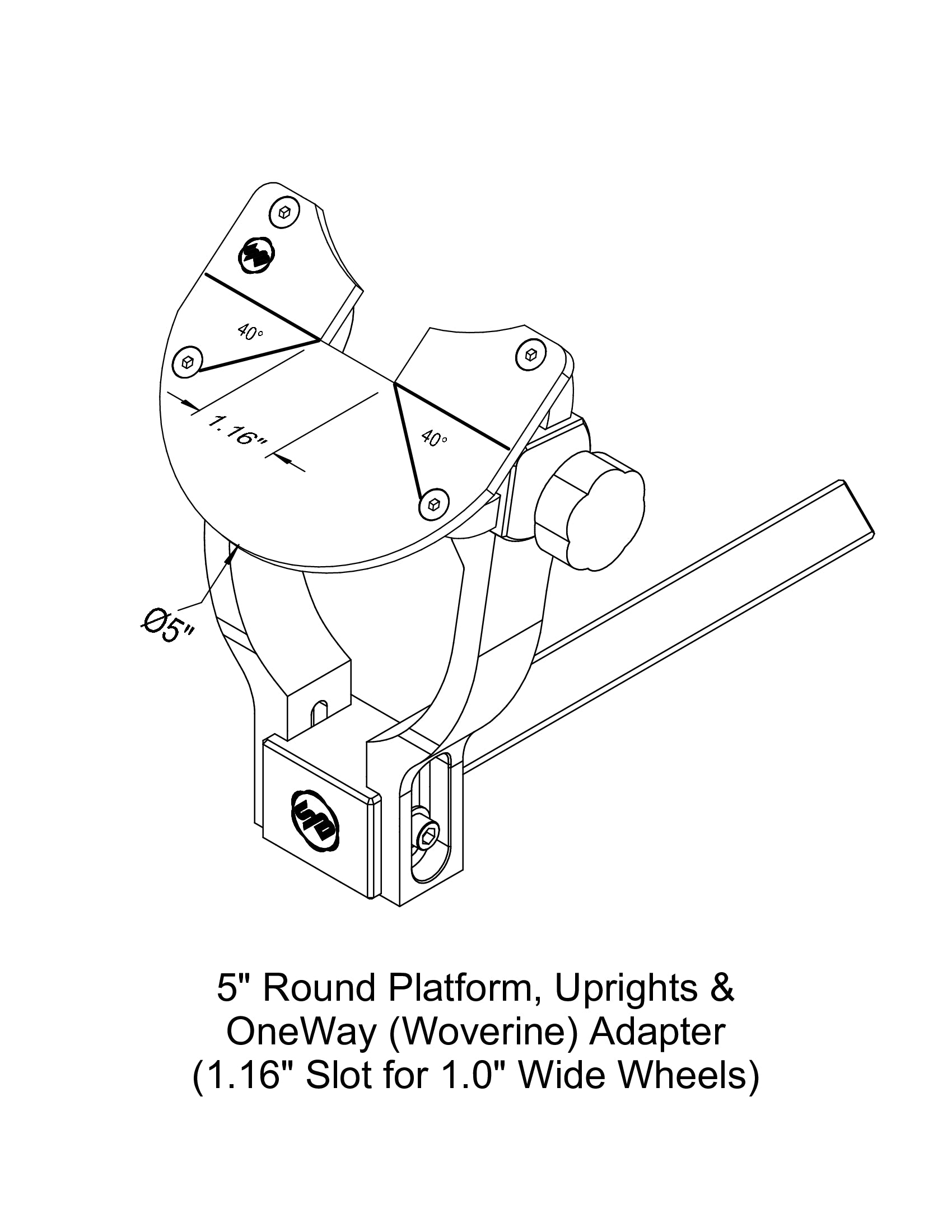

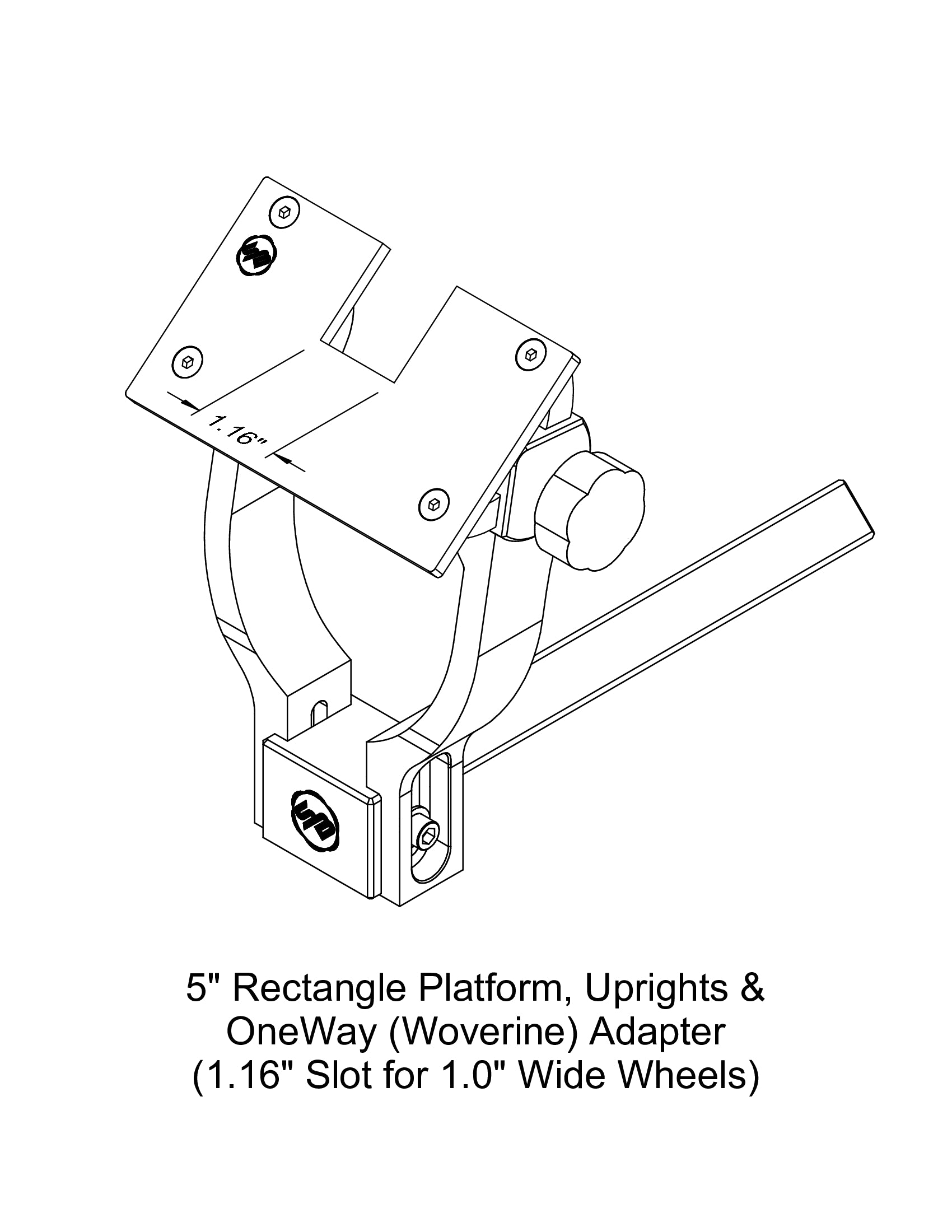

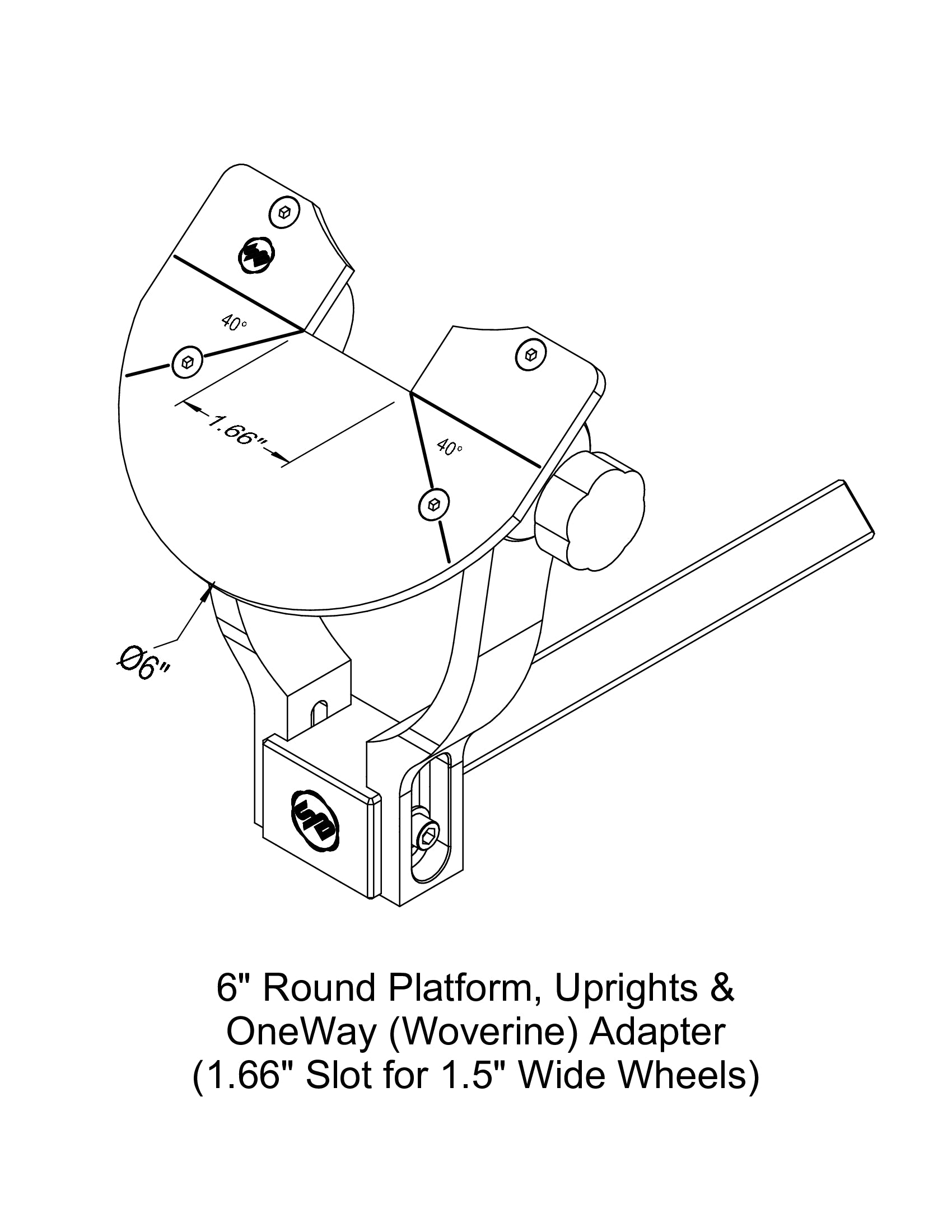

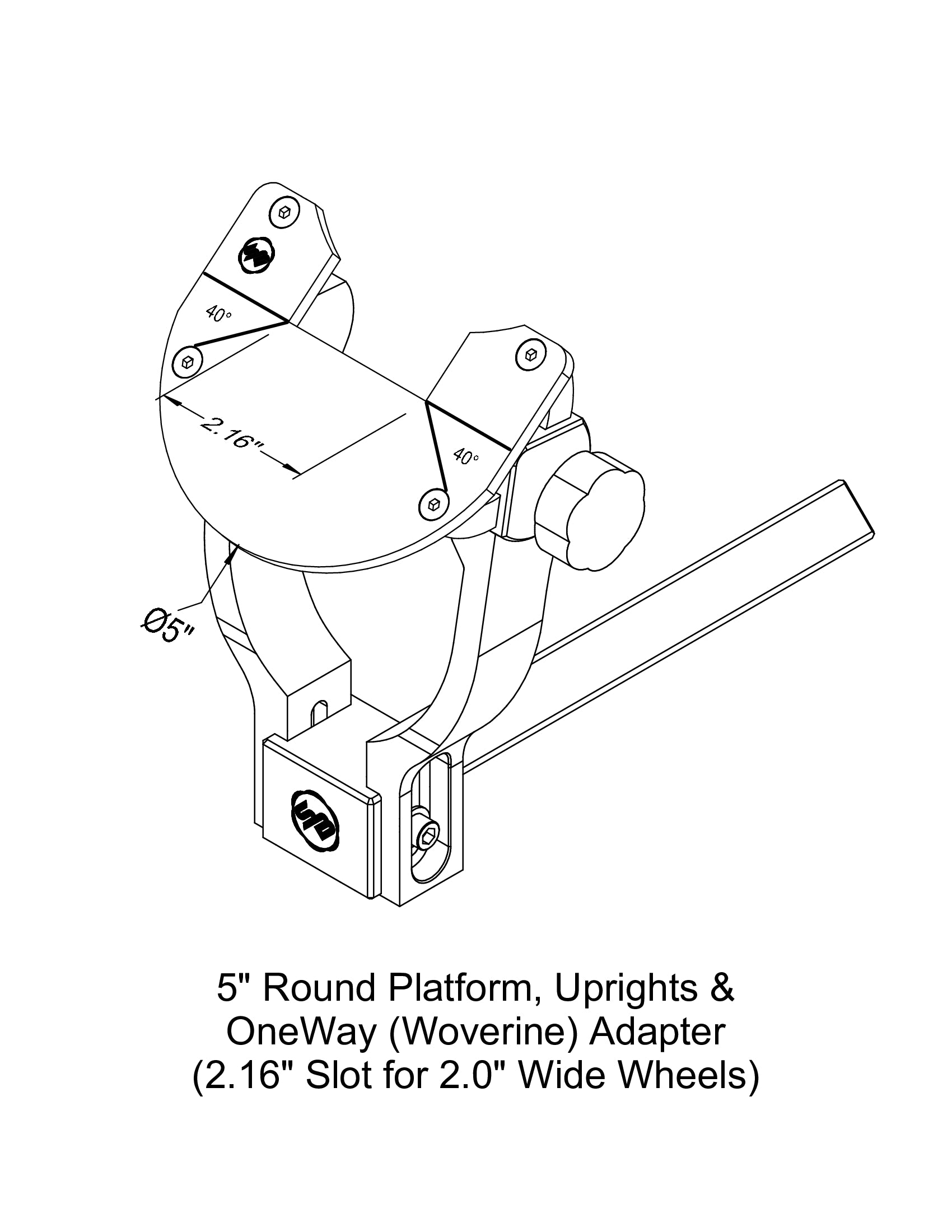

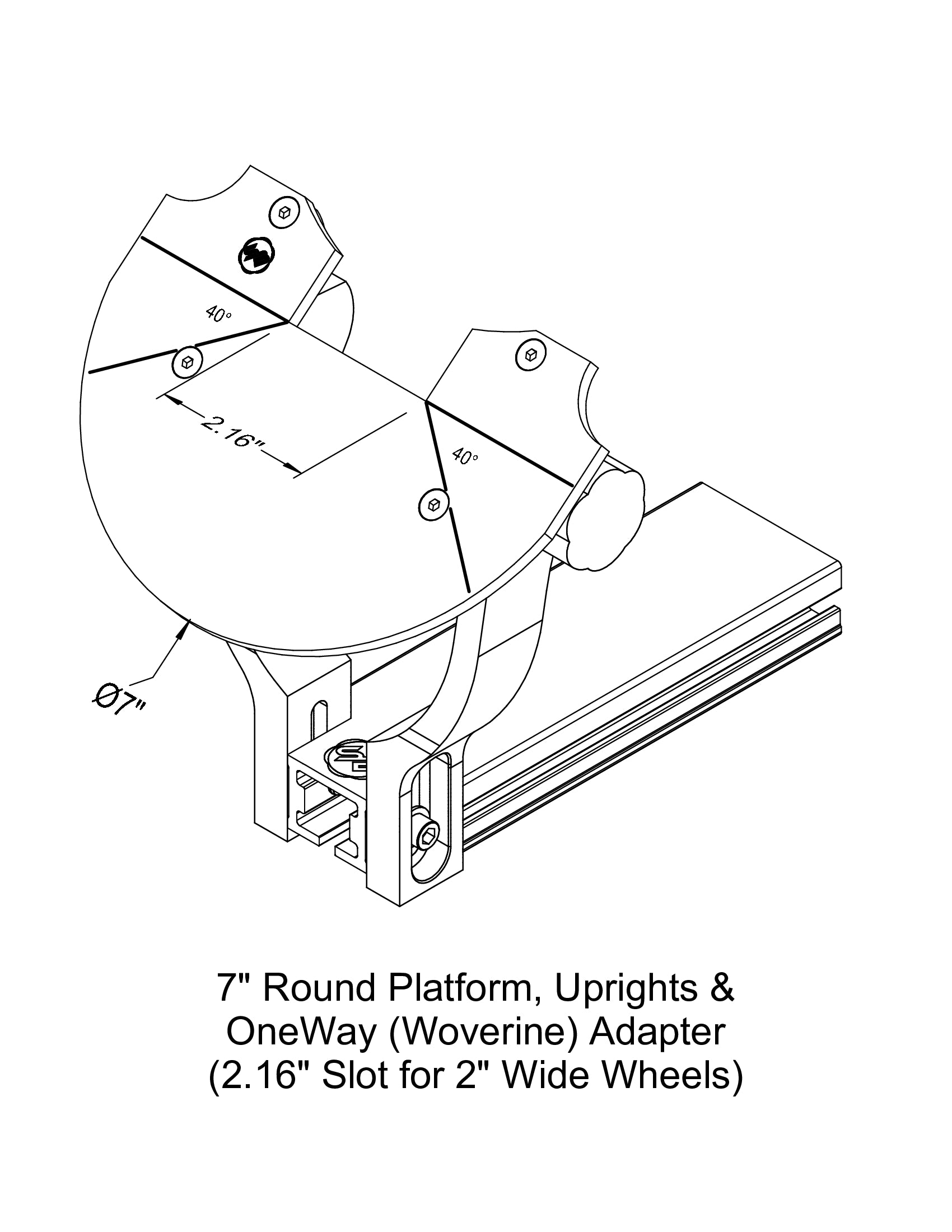

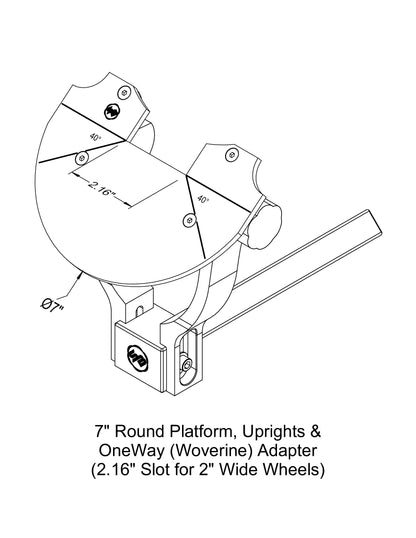

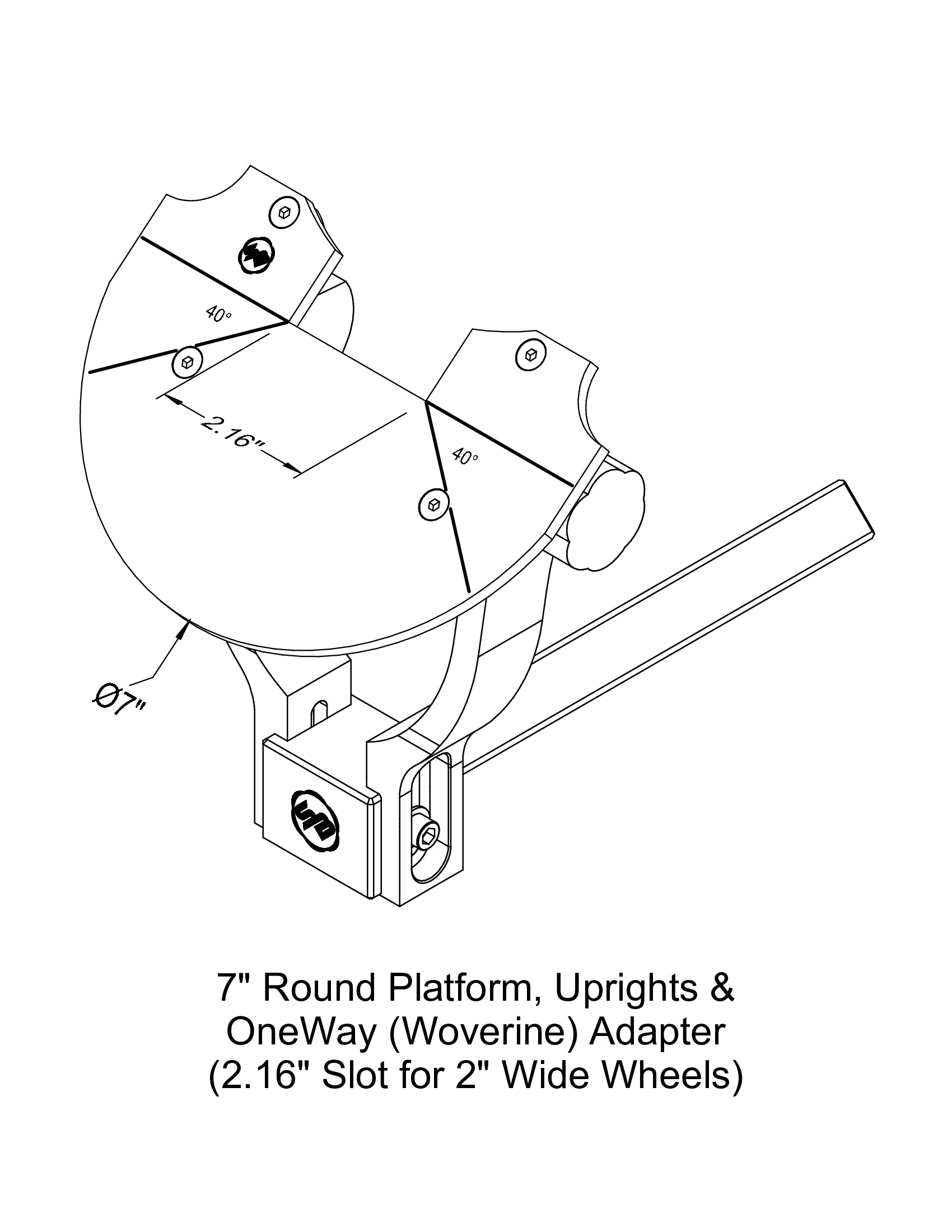

• Wolverine Adapter — mounts any UGP platform on a OneWay Wolverine base

Specifications

Available in 3 wheel slot widths:

• 1" (Actual Slot Width 1.16")
• 1 1/2" (Actual Slot Width 1.66")

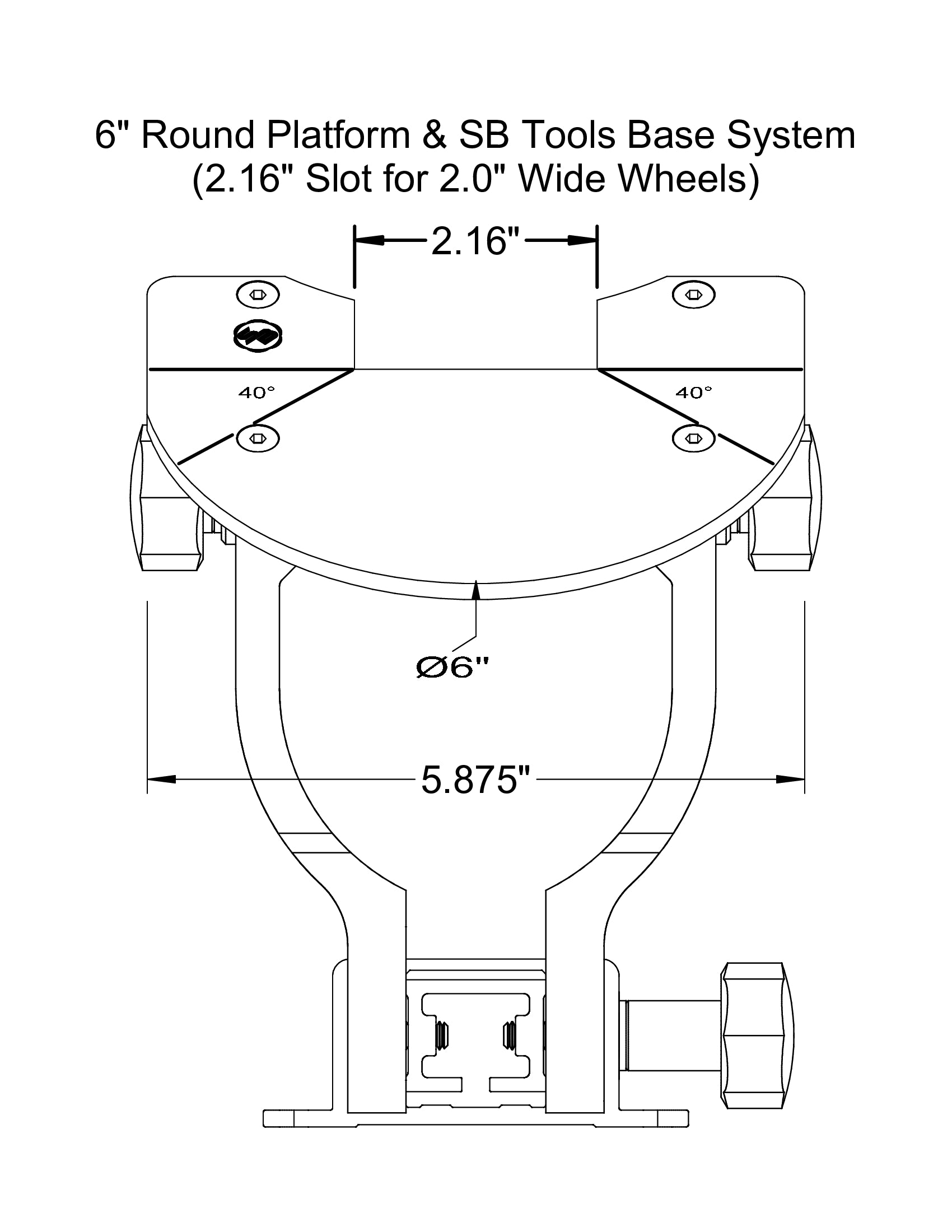

• 2" (Actual Slot Width 2.16")
