Bolster with 0.265" x 0.630" Slot (Radius Ends) Removable Insert

Bolster with 0.265" x 0.630" Slot (Radius Ends) Removable Insert

Patent Pending — removable taper-lock insert system.

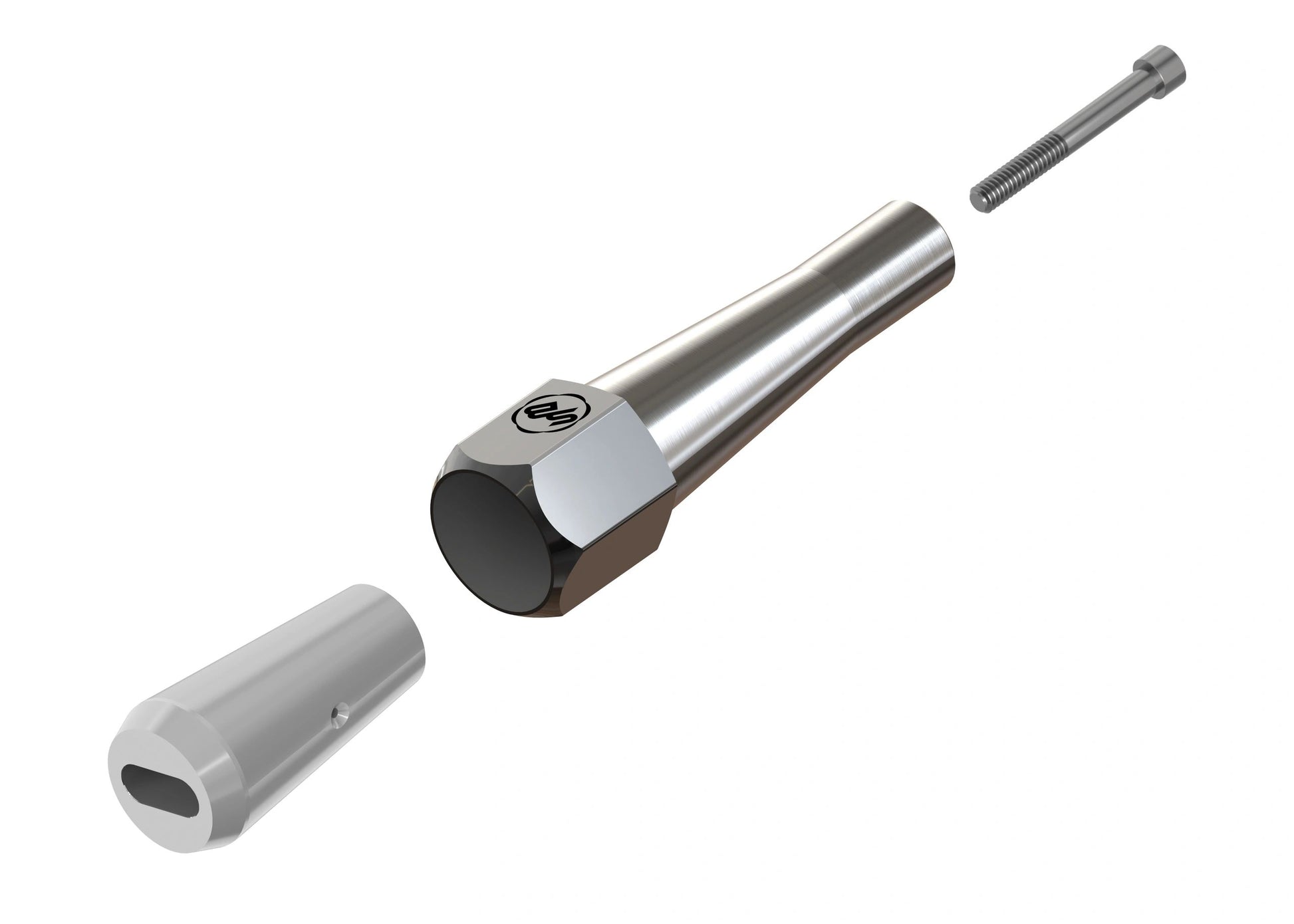

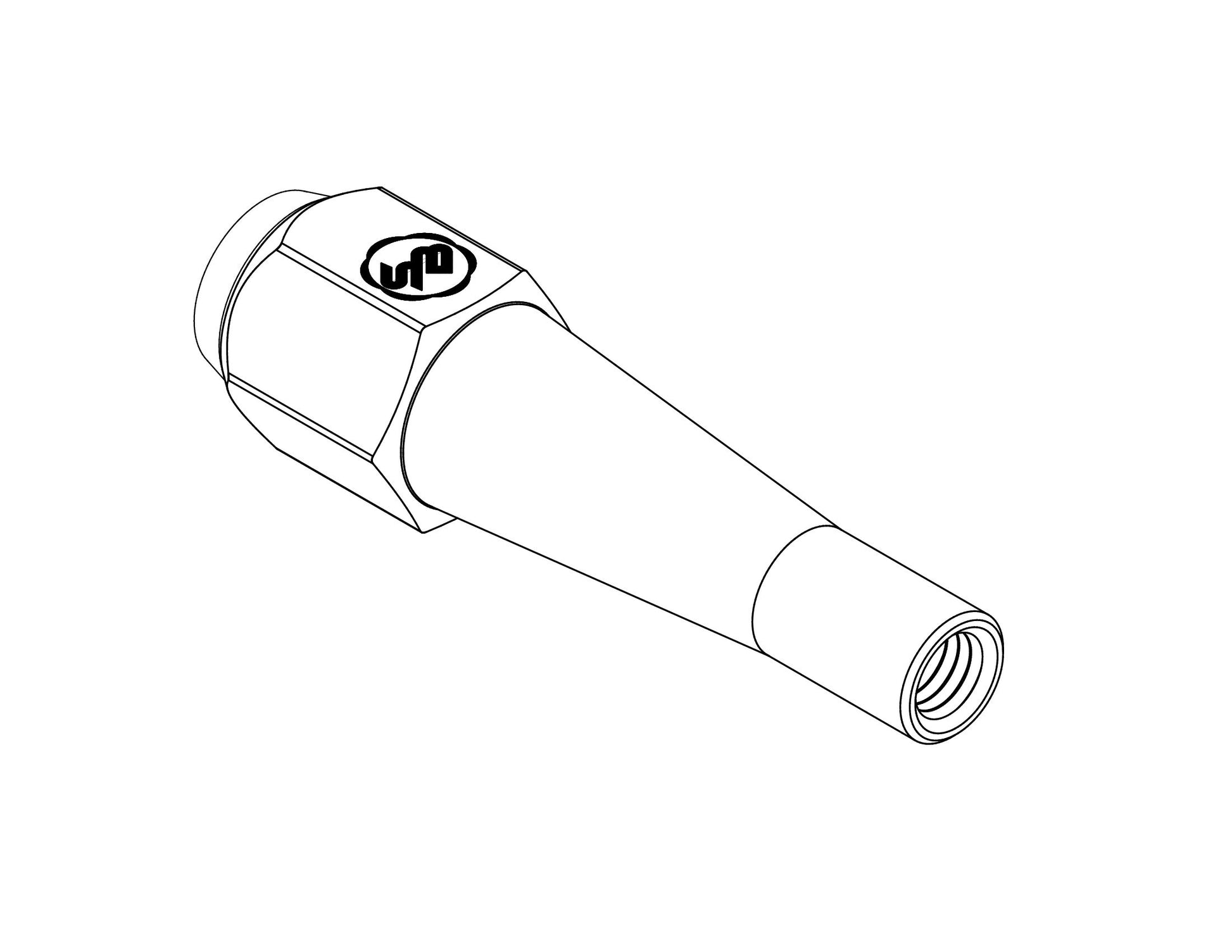

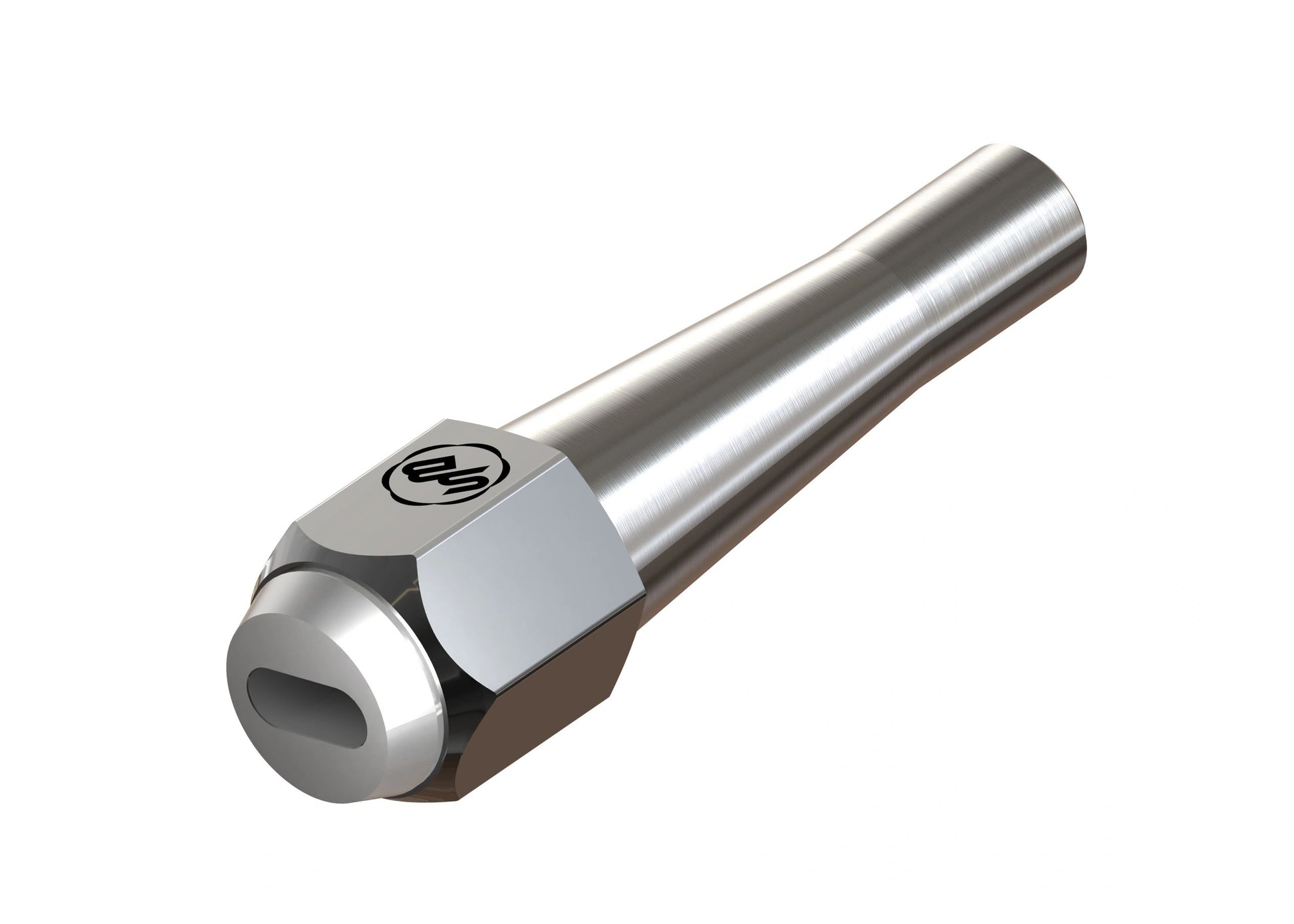

Removable insert bolster with a 0.265" x 0.630" slot (radius ends) for rectangular blades. Features the taper lock system for fast, secure blade-to-handle connection.

Key Features

• Precision-machined hardened stainless steel bolster

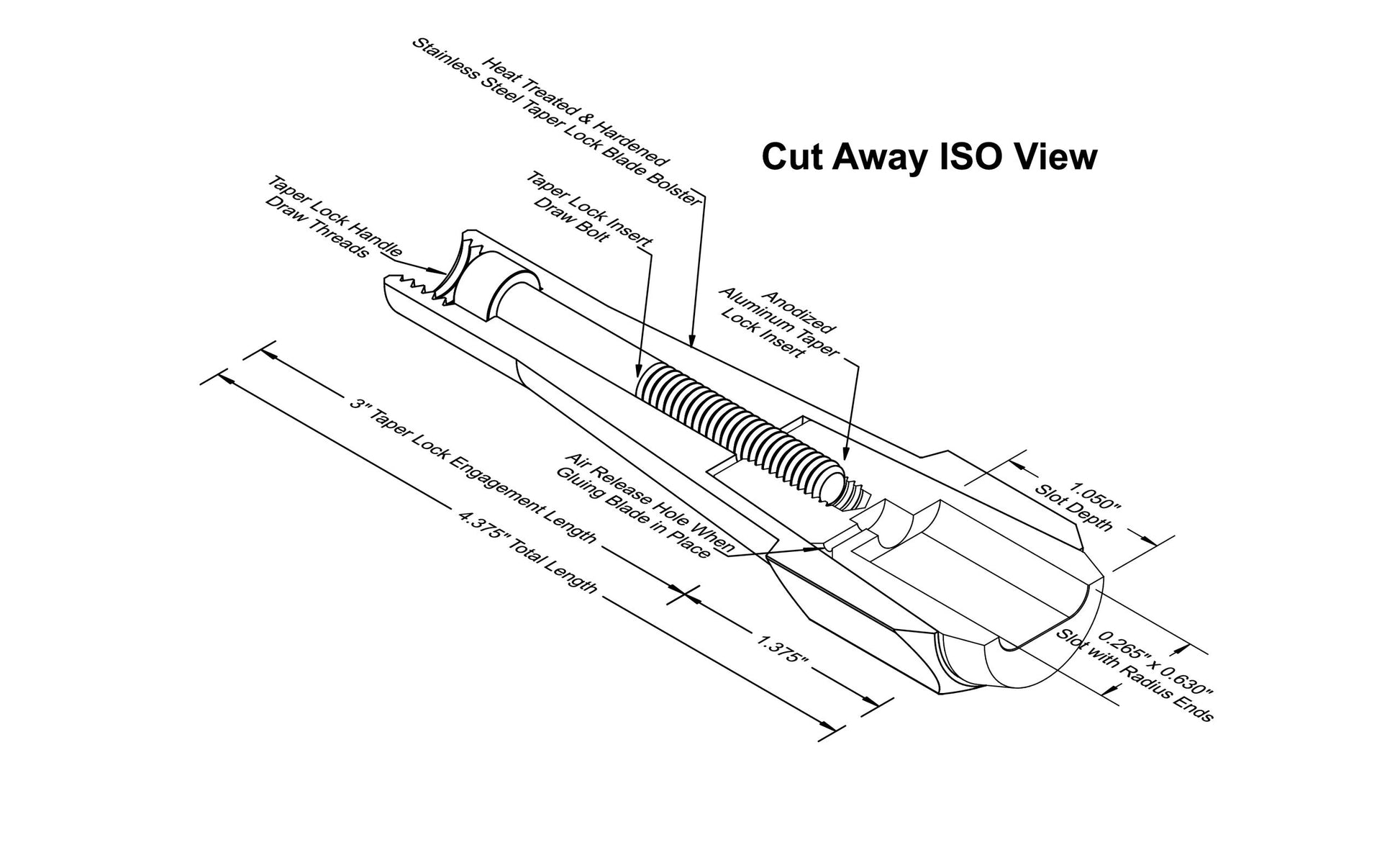

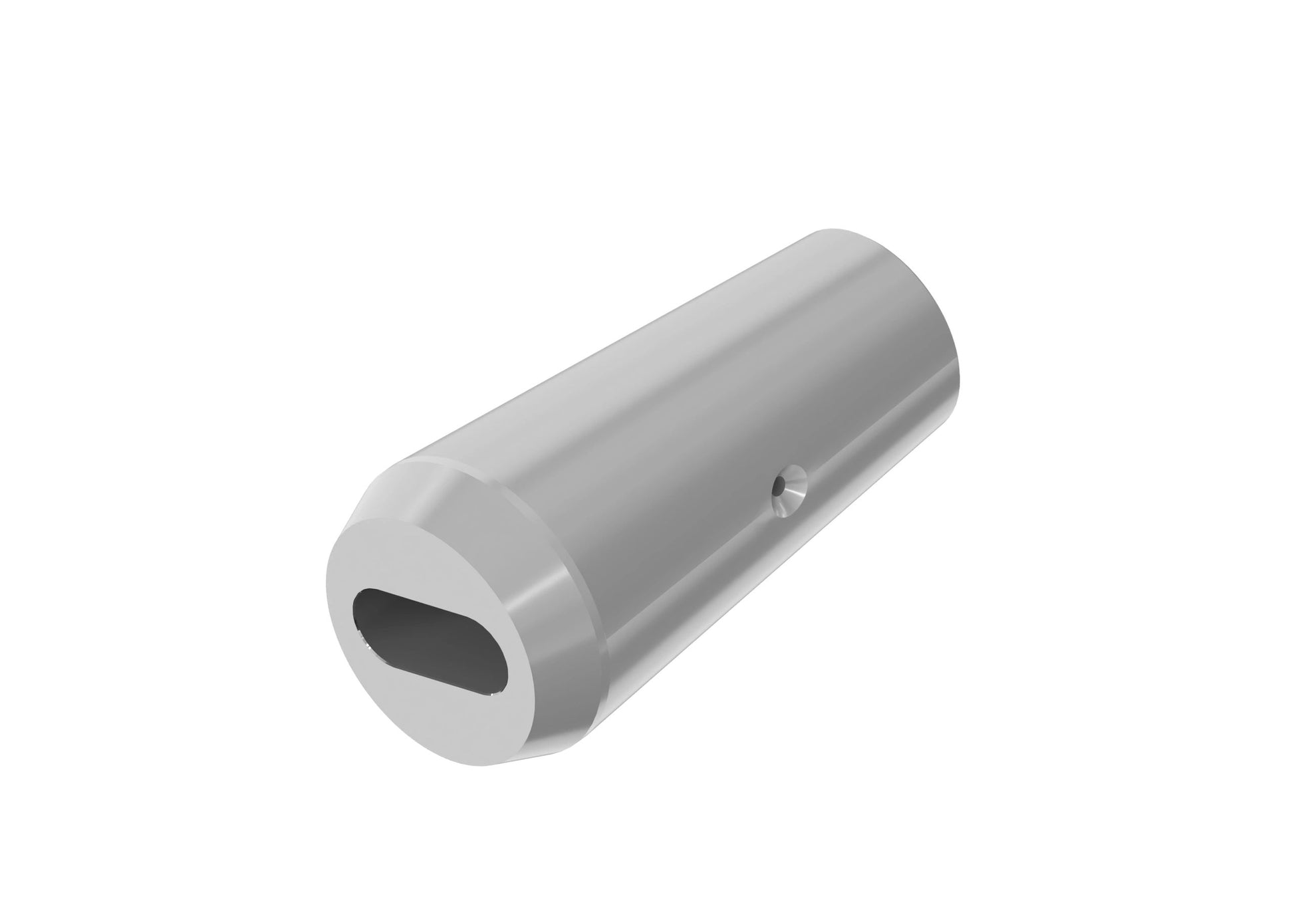

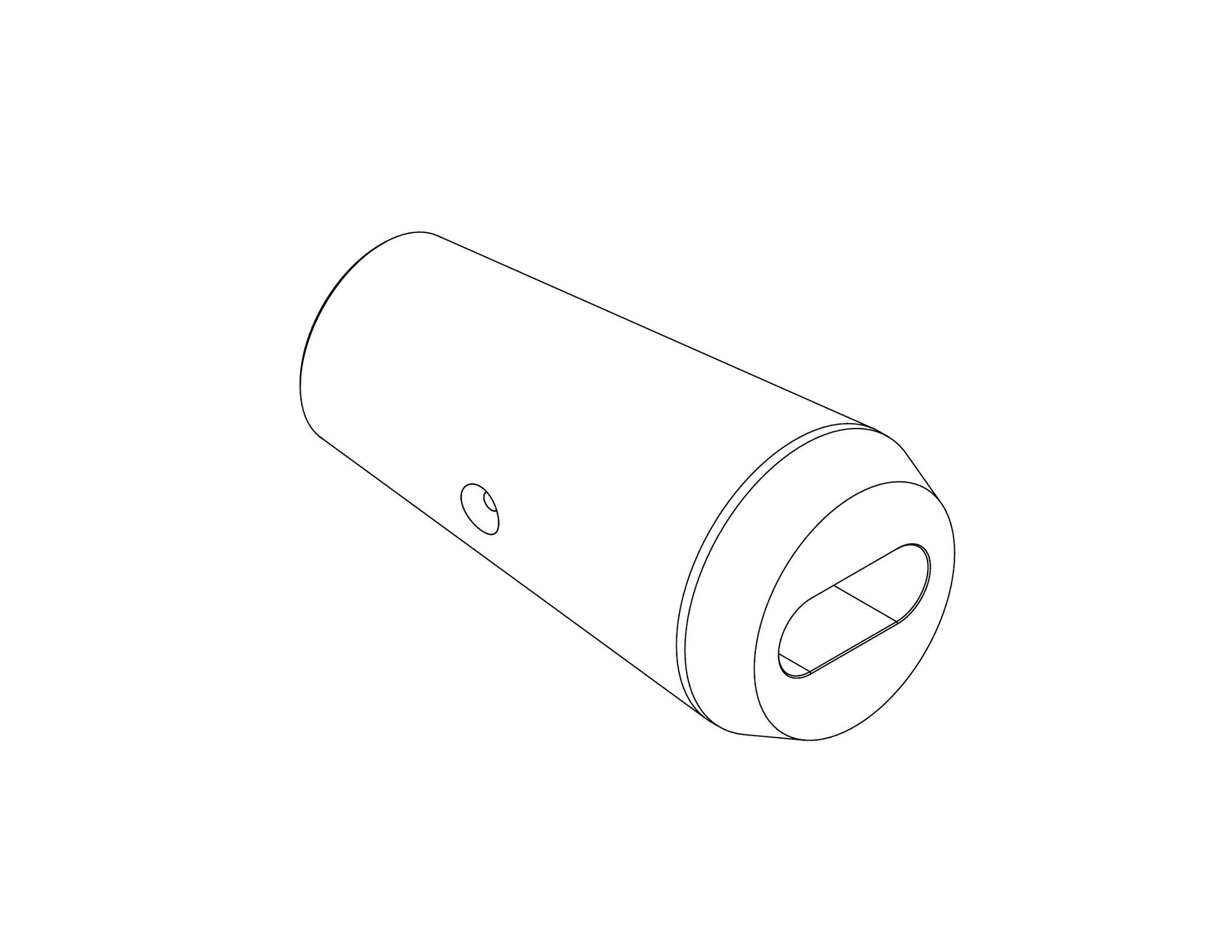

• Removable anodized aluminum taper lock insert
• Easy blade removal and replacement
• Fastest and most secure blade-to-handle locking and unlocking
• No fasteners or Allen keys required for handle locking
• Reuse the stainless steel bolster unlimited times
• 3-inch square surface contact for perfect fit to handles

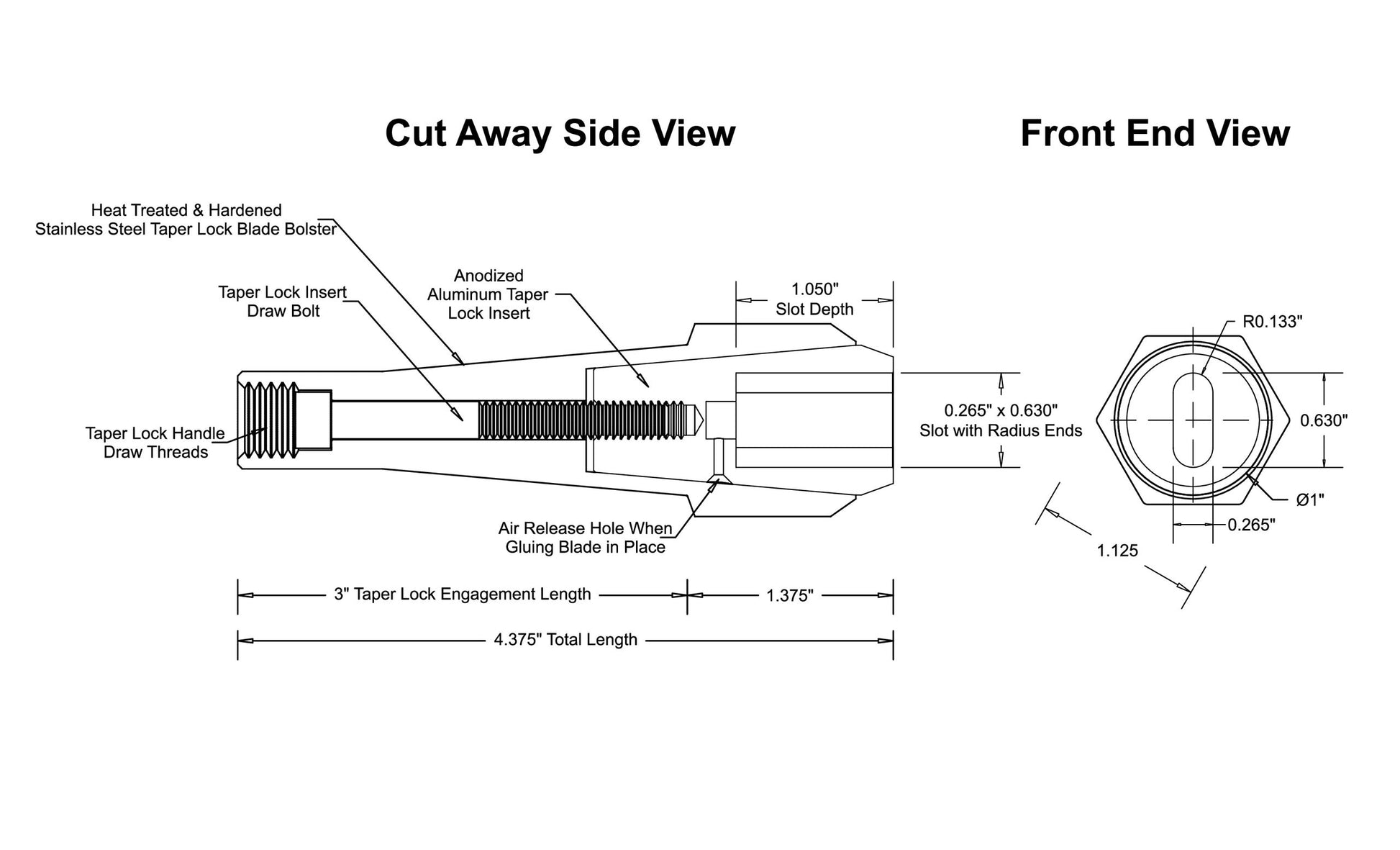

Specifications

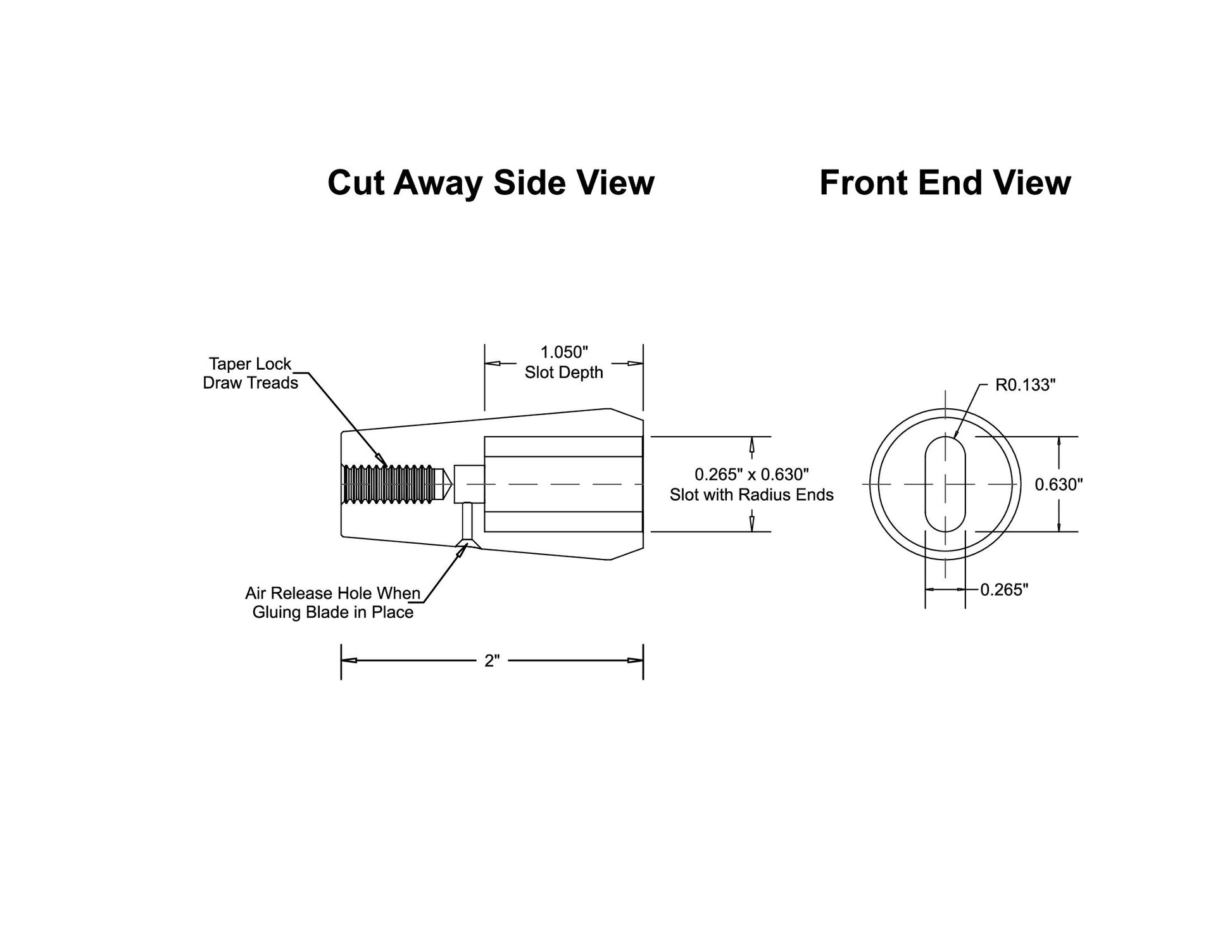

• Slot Size: 0.265" x 0.630" with radius ends
• Bolster Material: Hardened stainless steel
• Insert Material: Precision-machined anodized aluminum
• Insert Locking: Taper lock with supplied Allen key and fastener
• Handle Compatibility: All SB taper lock handles (7" to 48")

Blade Bonding Guide

• Always dry-fit the blade before applying adhesive
• Two-part epoxy recommended for strong, gap-filling bond
• Use 20+ minute epoxy for rectangular blades
• Keep acetone on hand to remove excess glue before it sets

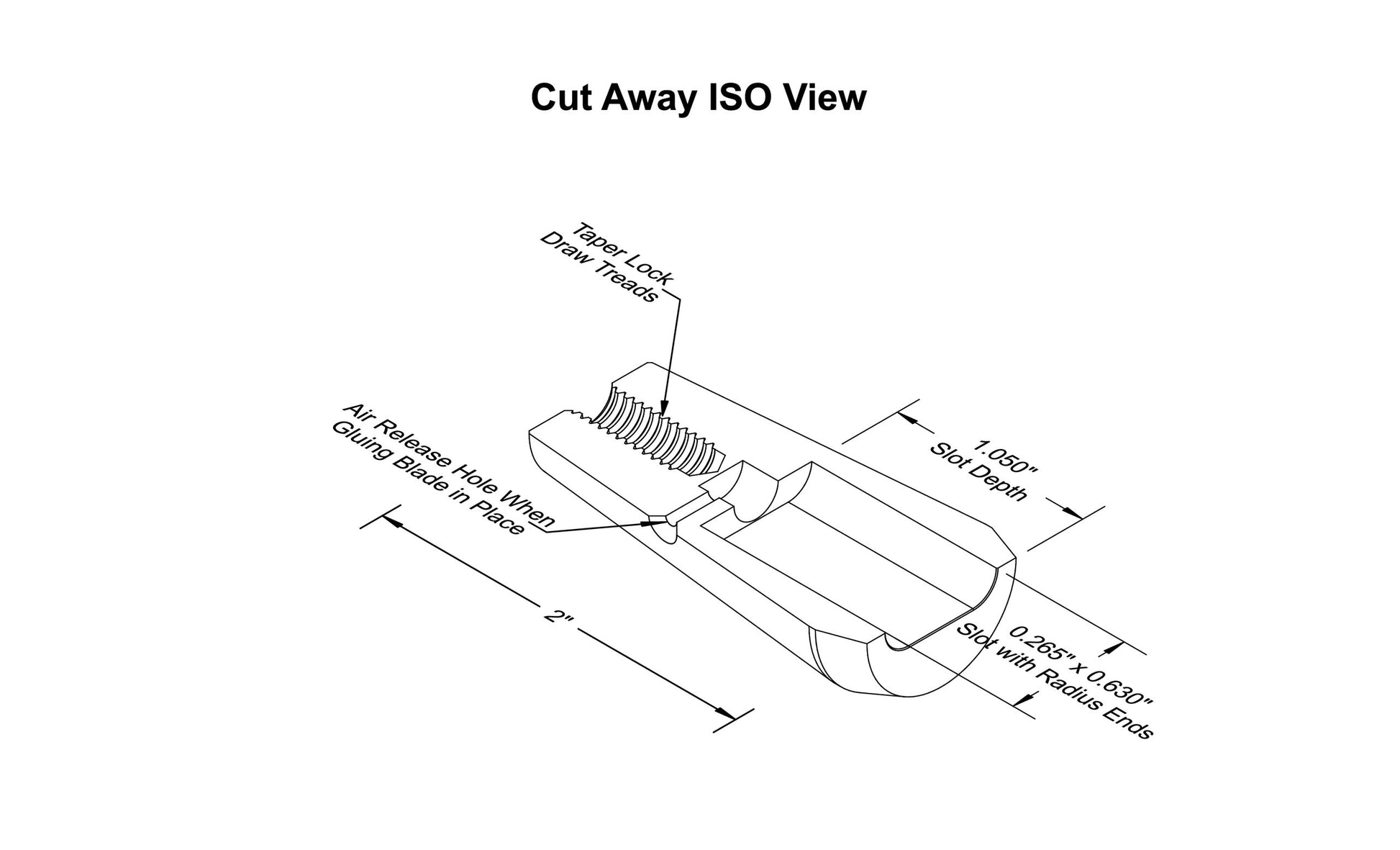

• Insert design features an air/glue release hole and vacuum seal to prevent excess glue escape
