Taper Lock Bolster with 0.625" x 0.320" Rectangular Slot - Insert type

Taper Lock Bolster with 0.625" x 0.320" Rectangular Slot - Insert Type

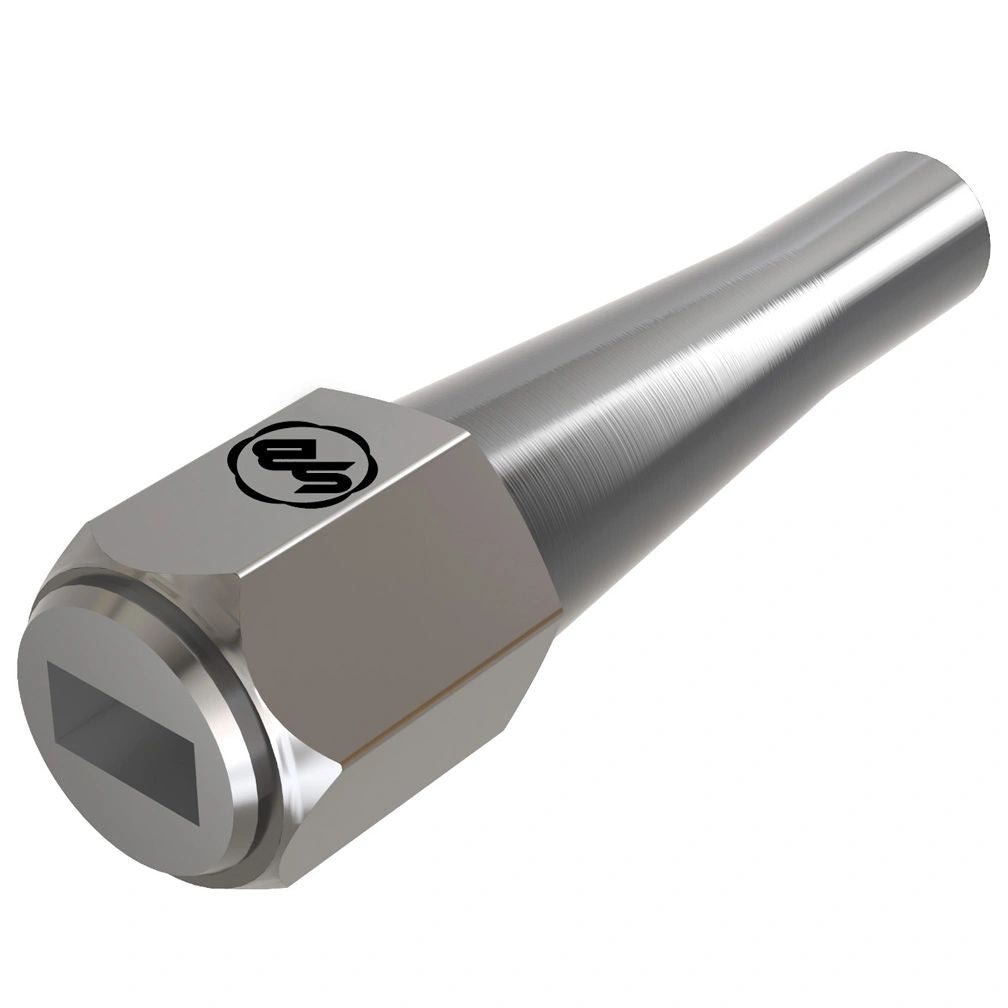

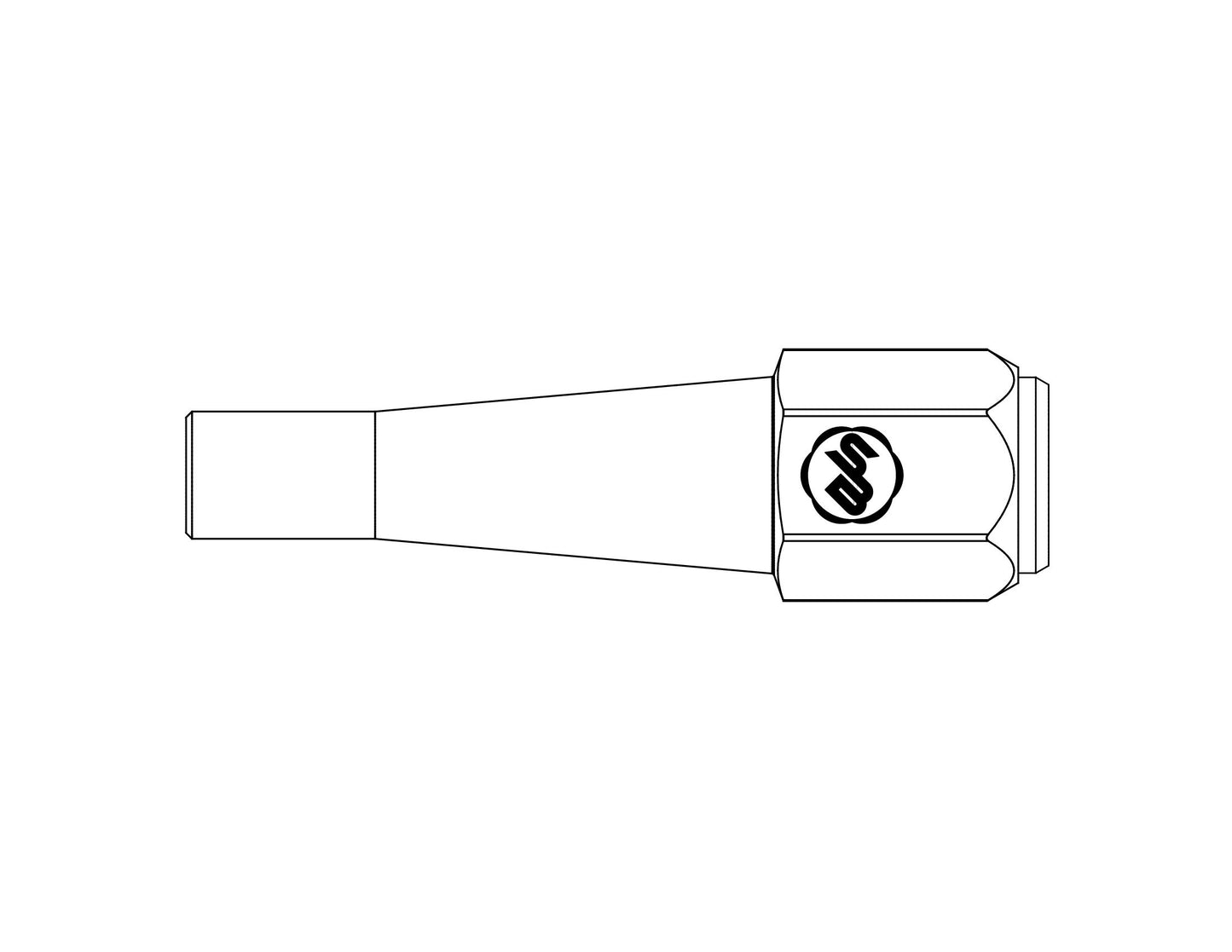

Nickel-coated gray iron taper lock bolster with an aluminum insert featuring a broach-cut 0.625" x 0.320" rectangular slot for rectangular blades. Bolster and insert ship loose and are bonded together on assembly.

Key Features

• Precision-machined for rapid blade locking and unlocking
• Aluminum insert with broach-cut rectangular slot
• Nickel-coated gray iron for corrosion resistance
• Complements the vibration-dampening qualities of triple composite handles
• No fasteners or Allen keys required

Specifications

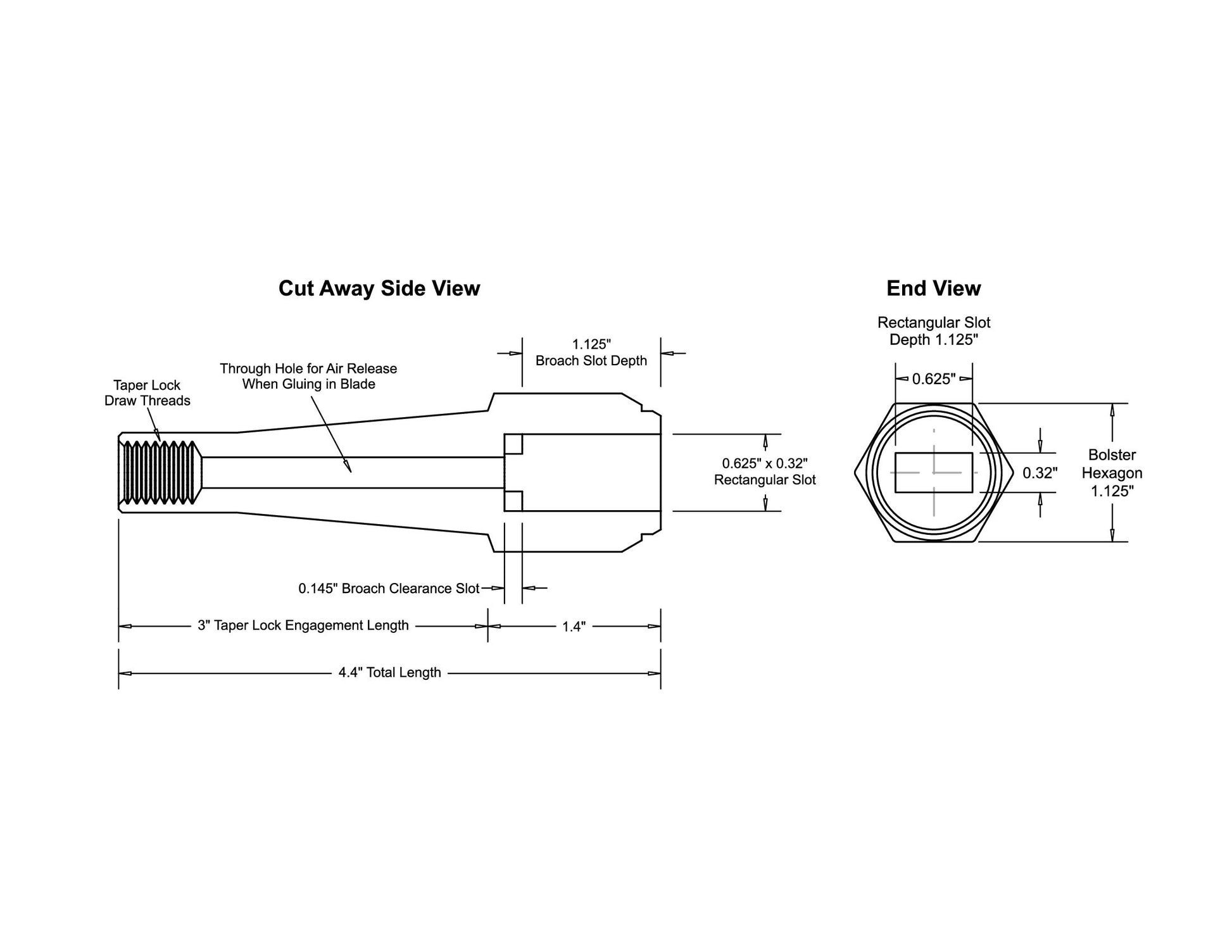

• Slot Size: 0.625" x 0.320" (rectangular)
• Insert: Aluminum, broach-cut
• Bolster Material: Nickel-coated gray iron
• Handle Compatibility: All SB taper lock handles (7" to 48")

Assembly & Bonding Guide

• Bond the insert into the bolster first, then bond the blade into the insert
• Always dry-fit the blade before applying adhesive
• Two-part epoxy recommended for strong, gap-filling bond
• Use 20+ minute epoxy for rectangular blades

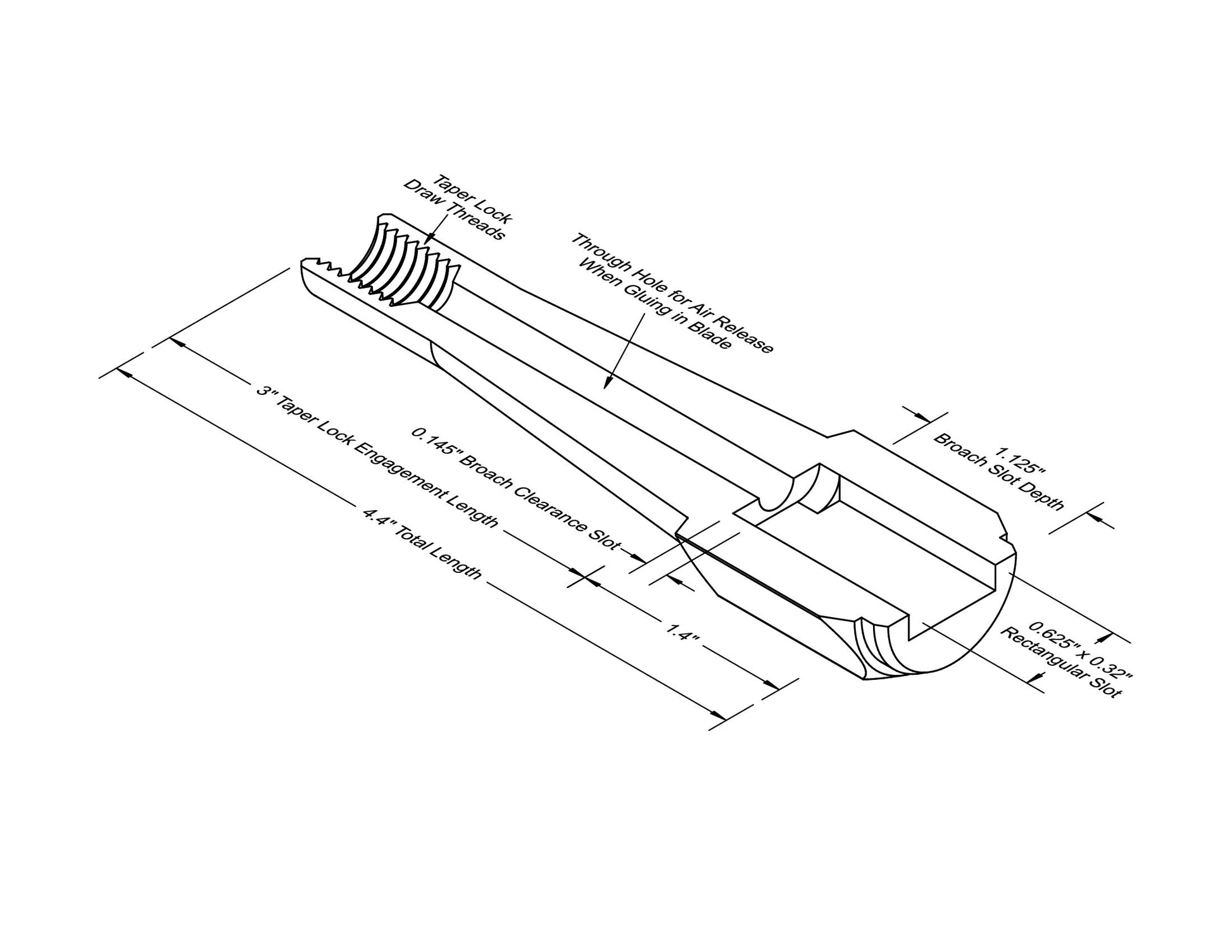

• Avoid excess epoxy, which can run through the air evacuation hole onto locking threads
• Keep acetone on hand to remove excess glue before it sets
