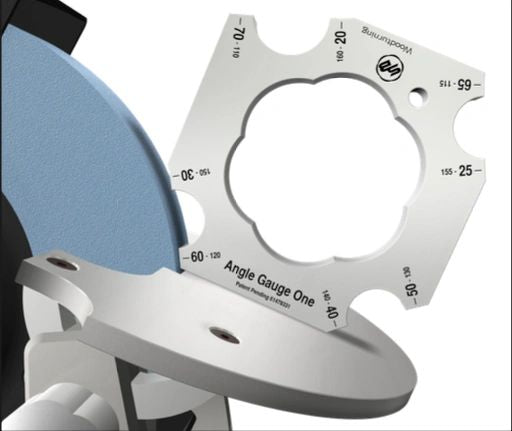

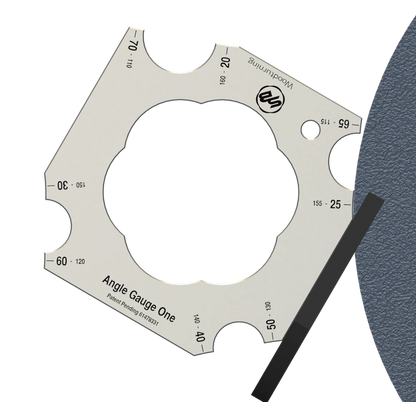

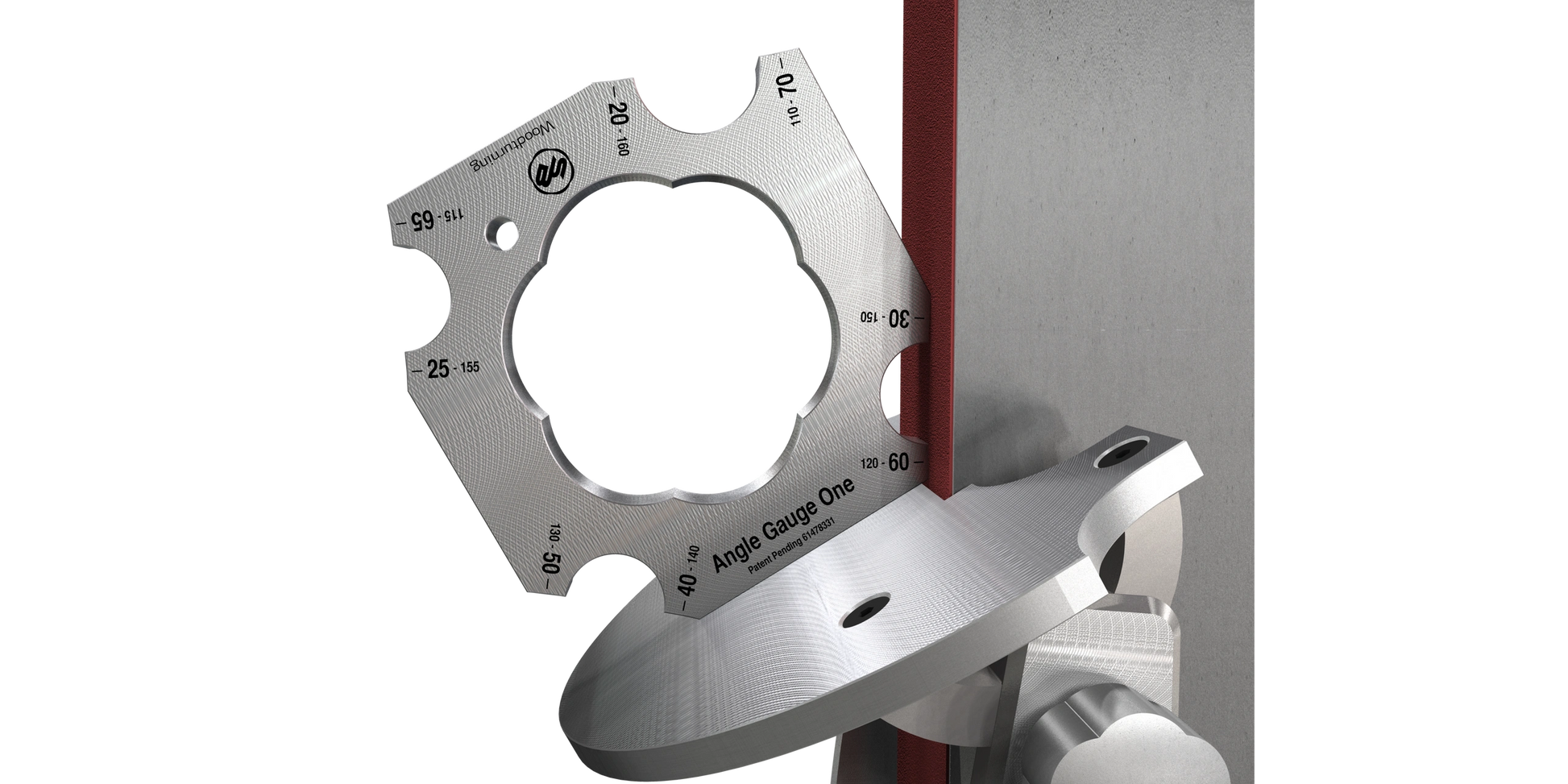

The most accurate angle-setting tool for both wheels and flat surfaces. Angle Gauge #1 provides 9 different edge angles, making it ideal for setting precise blade angles on bench grinders, belt grinders, and flat surfaces like table saw fences.
Key Features
100% accurate on 8" diameter wheels (+1° for 6" and -1° for 10")

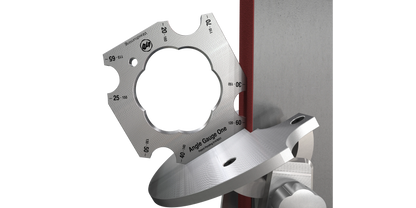

100% accurate on all flat surfaces

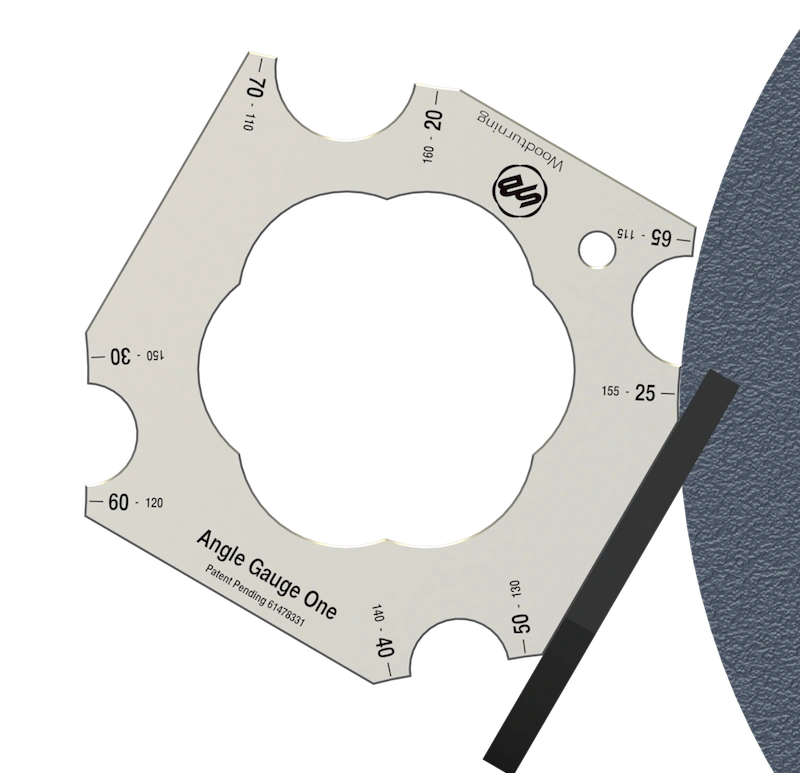

Compensates for wheel curvature and blade thickness

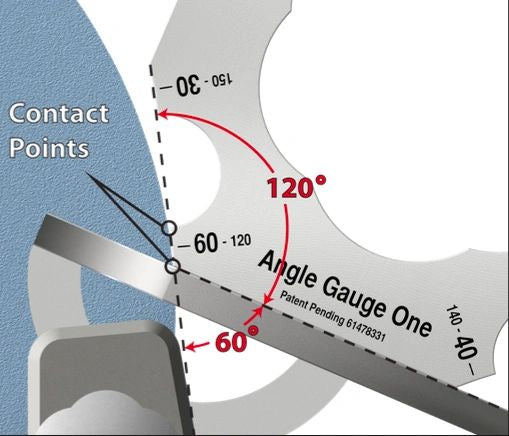

Sets the cutting angle at the edge of the blade, not the heel of the bevel
Works on both curved and flat surfaces — the only angle-setting tool that does
Specifications
Angles: 9 different edge angles

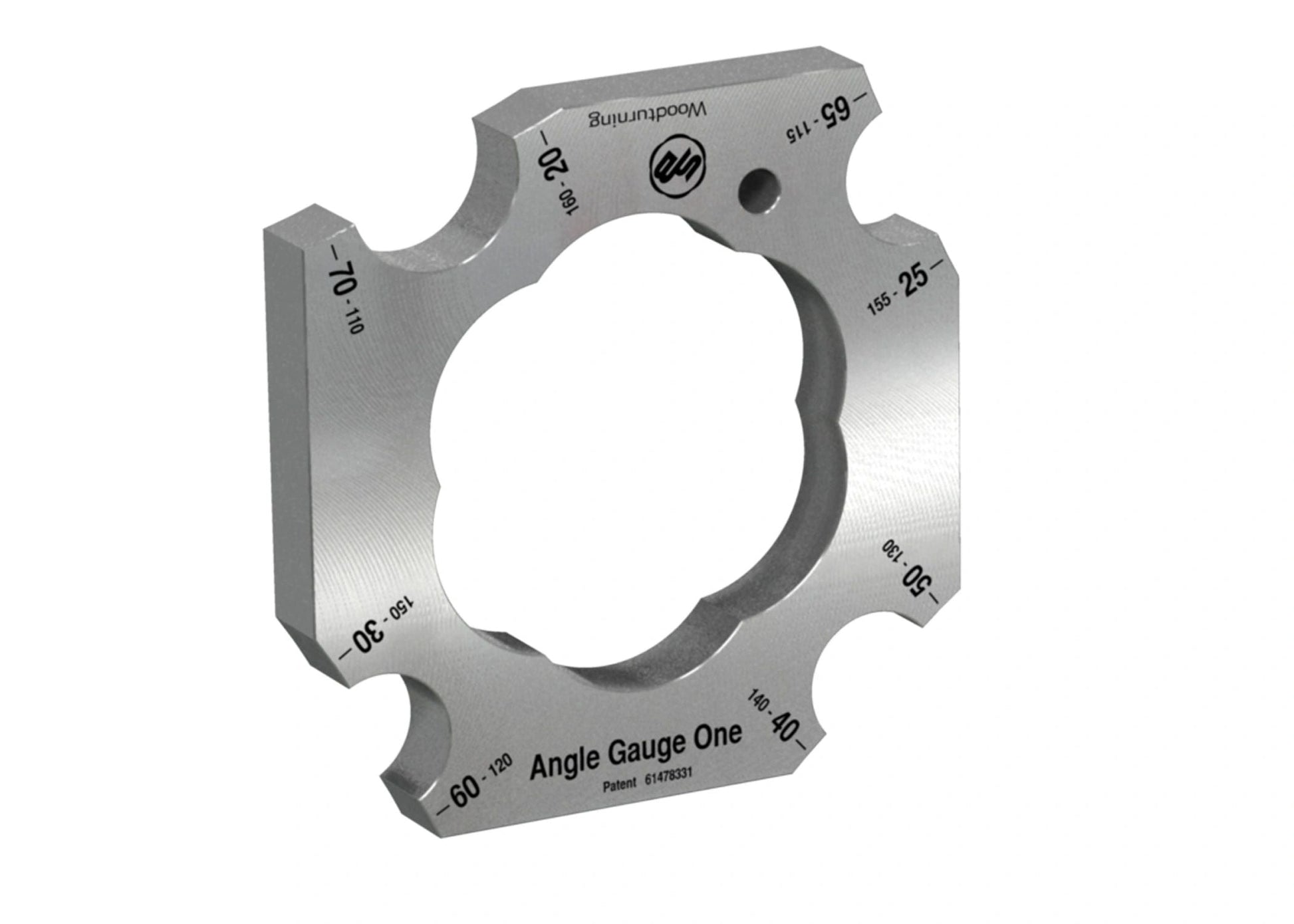

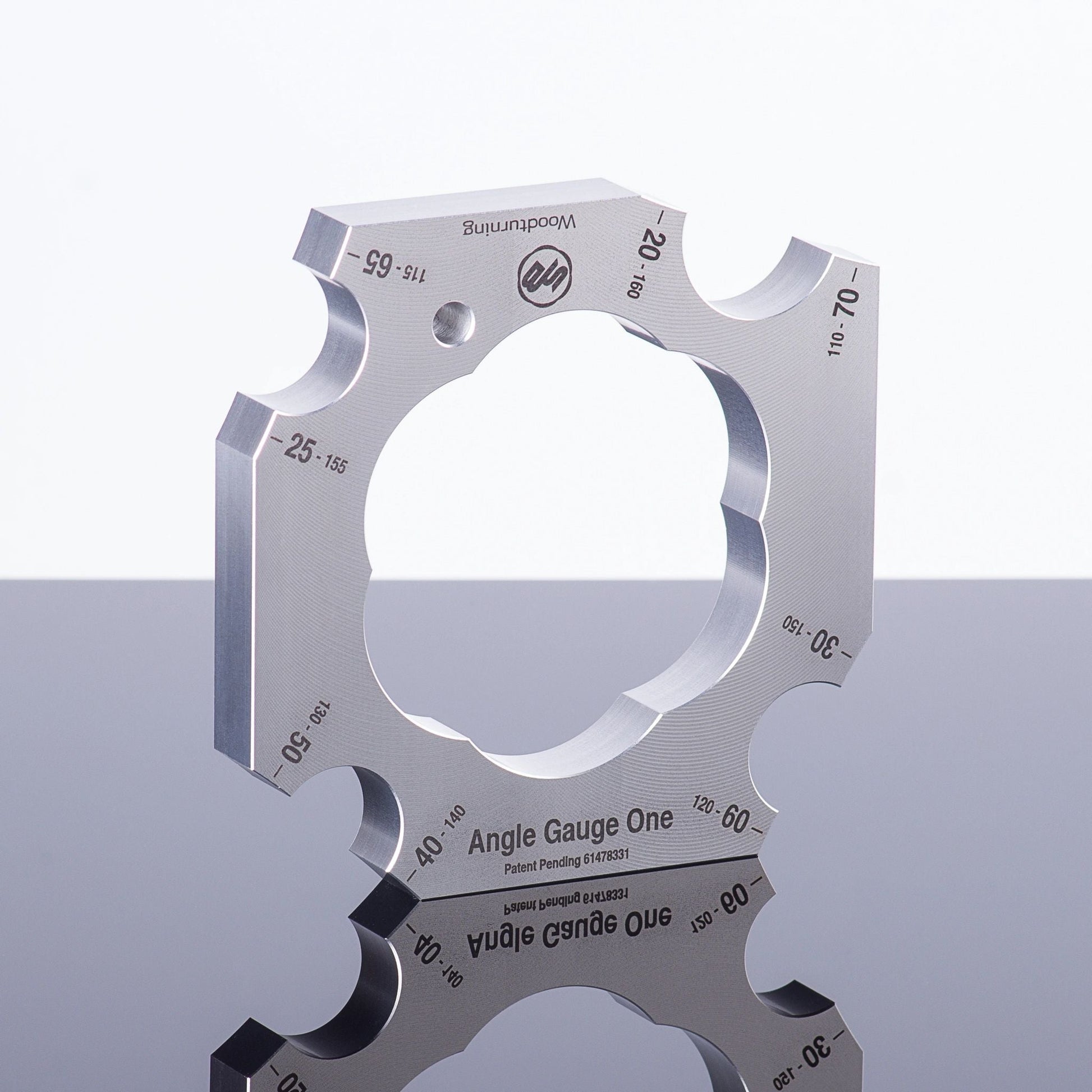

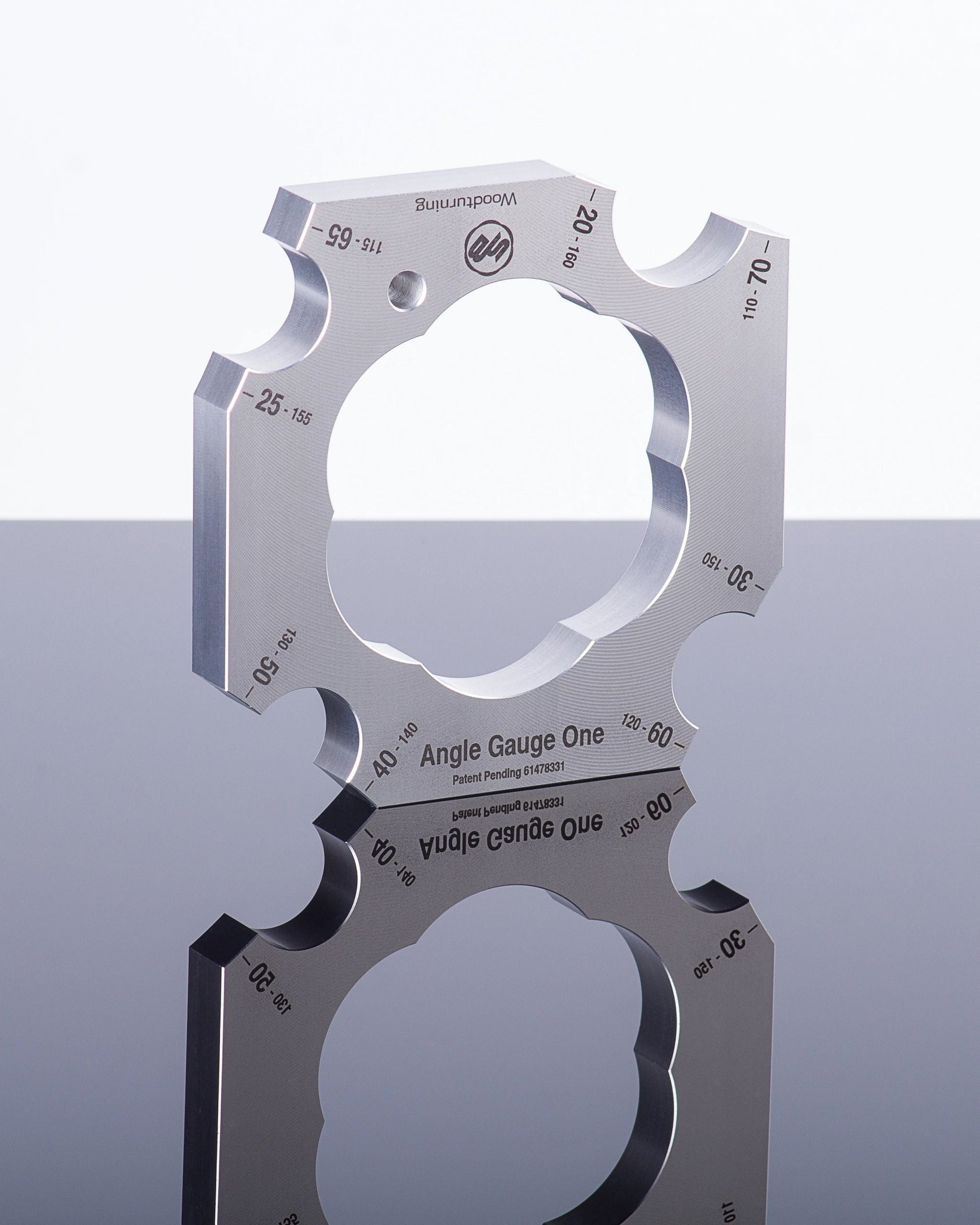

Material: Precision-machined anodized aluminum
Dimensions: 1/2" thick × 4" square
Compatible with: 6" to 10" diameter wheels, belt grinders, chop saws, table saws, bandsaws, and other woodworking and metalworking equipment
